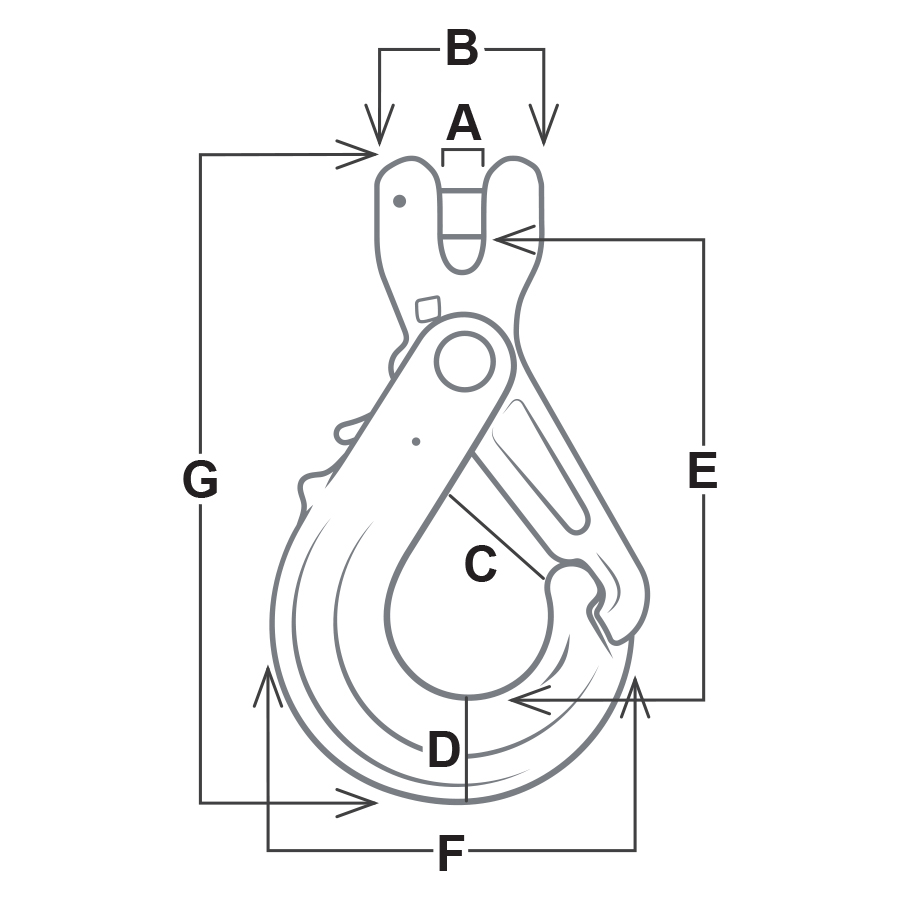

| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT (LBS.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||
| XCSL281-312PT | 9/32″-5/16” | 0.37” | 1.53” | 1.54” | 0.92” | 4.67” | 3.68” | 6.30” | 5,700 | 2.0 |
| XCSL375PT | 3/8″ | 0.47” | 1.92” | 1.93” | 1.23” | 5.80” | 4.43” | 7.95” | 8,800 | 3.55 |
| XCSL500PT | 1/2” | 0.59” | 2.41” | 2.03” | 1.59” | 6.85” | 5.45” | 9.61” | 15,000 | 6.2 |
| XCSL625PT | 5/8” | 0.73” | 2.91” | 2.71” | 1.85” | 7.95” | 6.80” | 11.22” | 22,600 | 12.8 |
| XCSL750PT | 3/4” | 0.98” | 3.35 | 3.01 | 2.44” | 9.25 | 7.58 | 13.29 | 35,300 | 28.0 |
| STOCK NUMBER | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XCSL281-312PT | 0.37” | 1.53” | 1.54” | 0.92” | 4.67” | 3.68” | 6.30” |
| XCSL375PT | 0.47” | 1.92” | 1.93” | 1.23” | 5.80” | 4.43” | 7.95” |
| XCSL500PT | 0.59” | 2.41” | 2.03” | 1.59” | 6.85” | 5.45” | 9.61” |
| XCSL625PT | 0.73” | 2.91” | 2.71” | 1.85” | 7.95” | 6.80” | 11.22” |
| XCSL750PT | 0.98” | 3.35 | 3.01 | 2.44” | 9.25 | 7.58 | 13.29 |

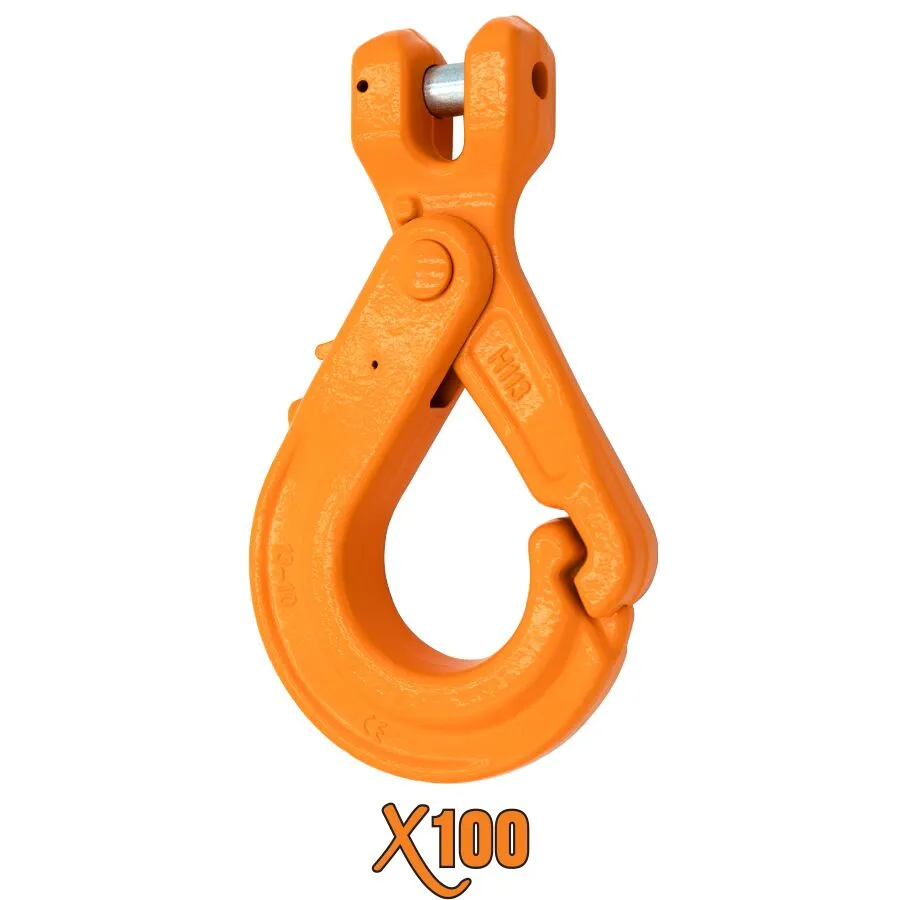

• Notched tip to help avoid hook damage
• Forged directly into the hook
• Incorporated into all X100 self-locking hooks
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
