Caldwell Dura-Mod Model DM70 – 2-Point 70-Metric Ton Spreader Beam System

Caldwell Dura-Mod Model DM70 – 2-Point 70-Metric Ton Spreader Beam System

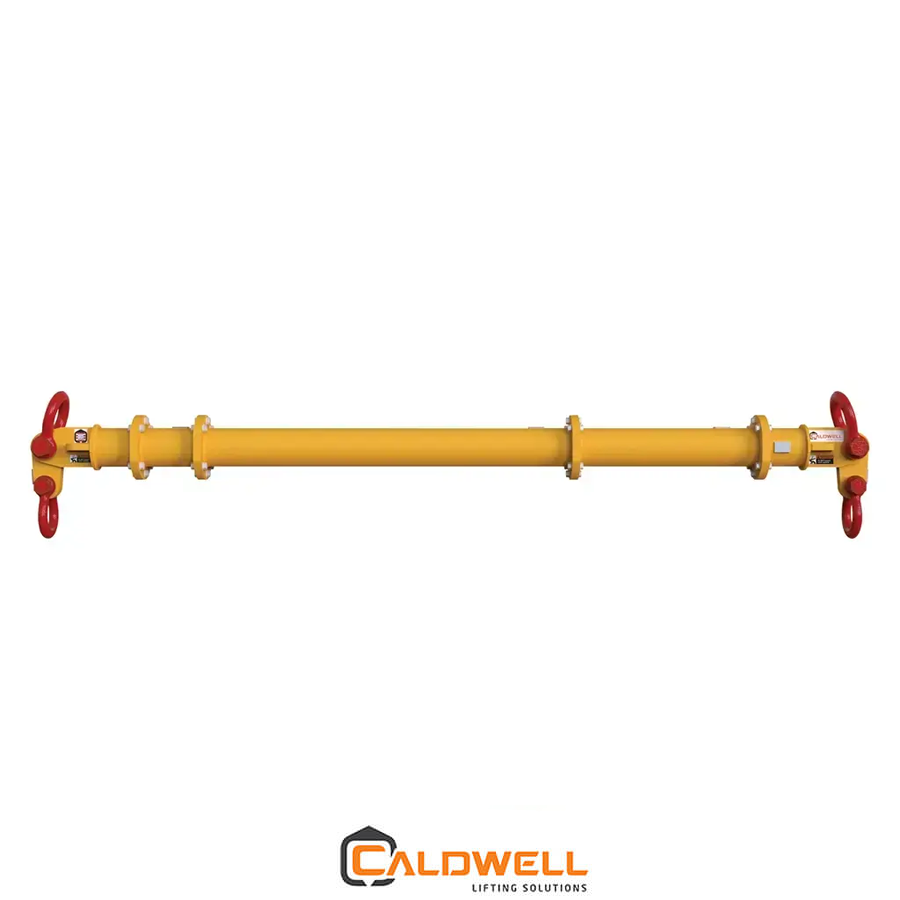

The Dura-Mod® 2-Point/70-Metric Ton Spreader Beam can be configured in spreads of 3′ to 45′. Order Spreader Sections, End Fittings, Drop Links, and Bolts separately to build the beam you want.

  • Lightweight in comparison to fixed/multiple point beams
  • Easy to transport and store; single longest component is only 20′

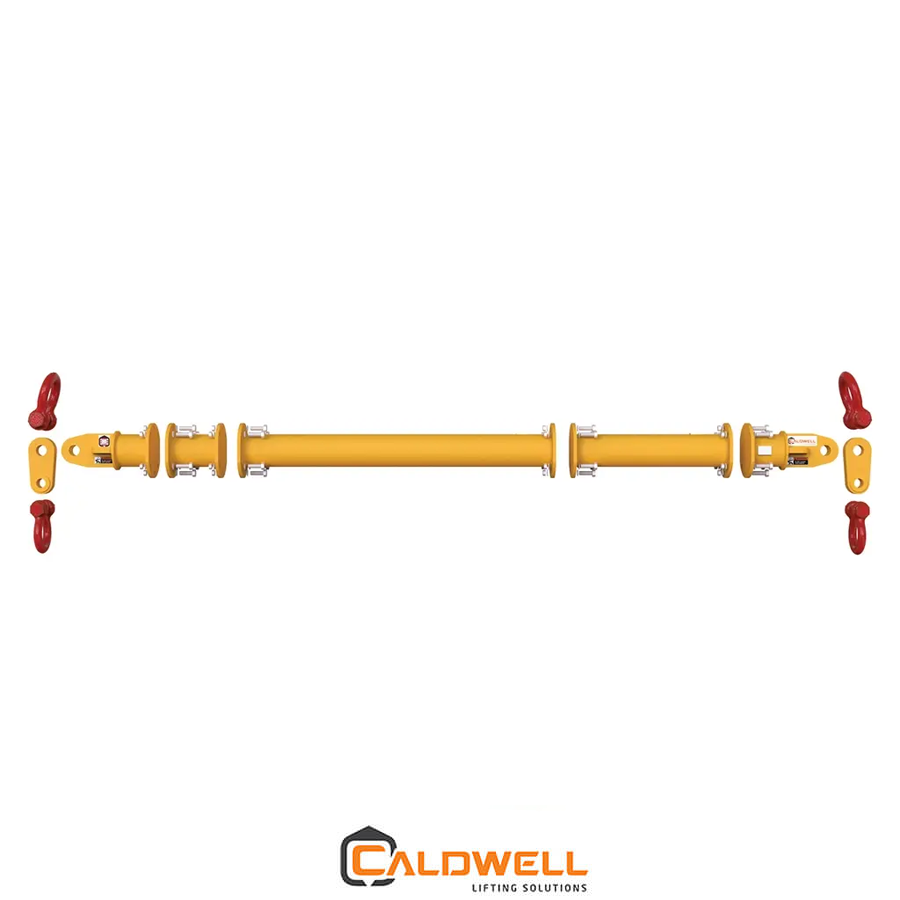

  • Two end units, drop links, and spreader sections make it fully customizable
  • Distributors are able to keep them stocked, offering customers quick ship access to certified spreaders
  • World-renowned Caldwell brand name on a modular spreader system
  • Components can be added and bought separately
  • Conforms to ASME B30.20, BTH-1, Design Category B, Class 0
  • Handles loads up to 70 tons

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Model Number Model Description Weight (lbs.) Number of Components Per Set

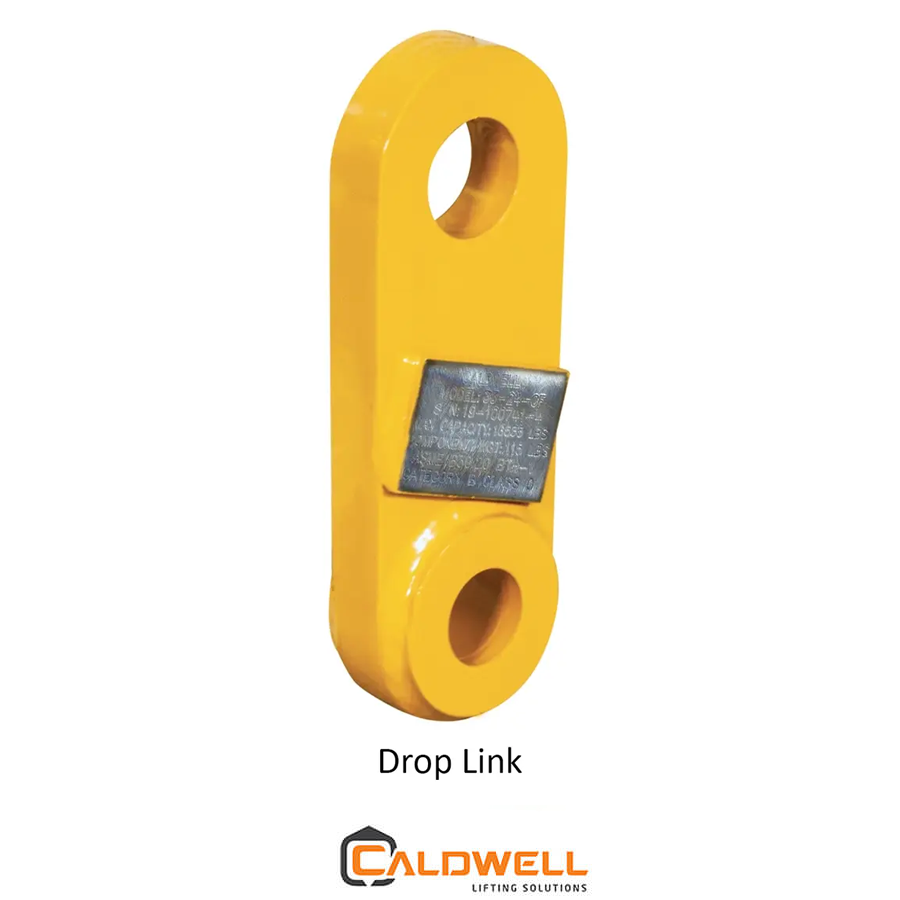

DM-70-DL Drop Link 47 2
DM70-SS-1 1 ft. Spreader Section 115 1

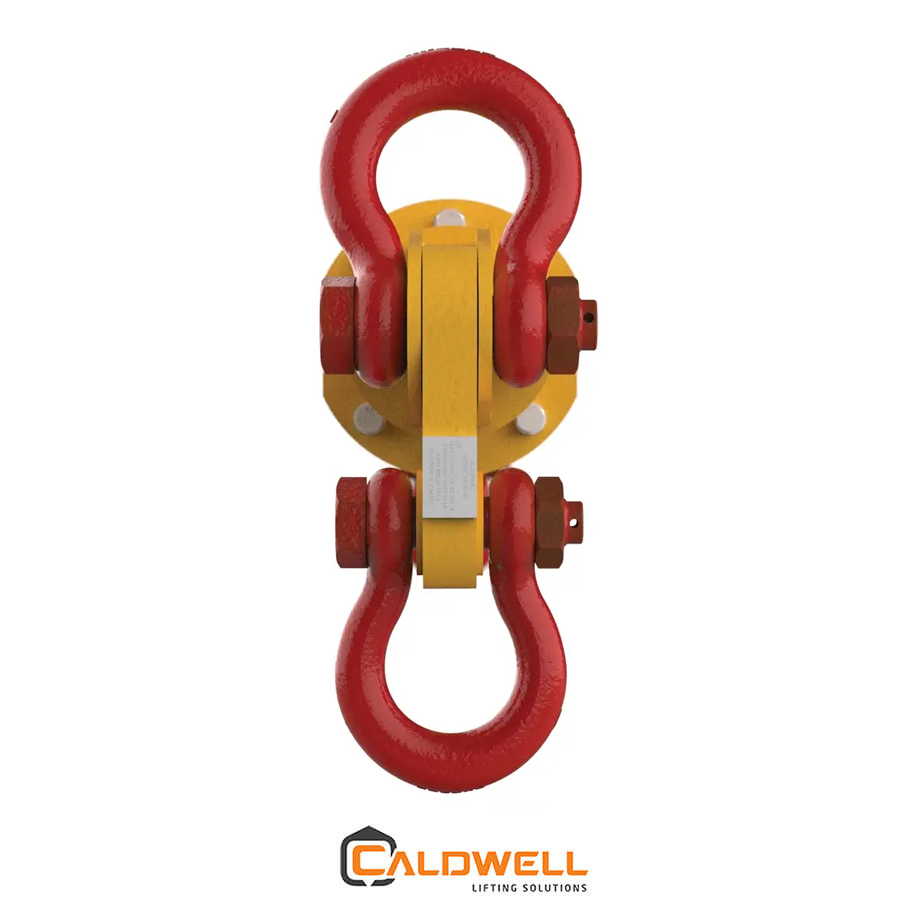

DM70-EF End Fitting 135 2
DM70-SS-2 2 ft. Spreader Section 160 1
DM70-SS-4 4 ft. Spreader Section 245 1
DM70-SS-6 6 ft. Spreader Section 335 1
DM70-SS-12 12 ft. Spreader Section 595 3
  • Bolts, Nuts and Washers can be reused as long as Anti-Seize Thread coating is used
  • Slings and shackles are not provided as part of this assembly. Synthetic textile, chain and wire rope slings may be used. Consult your sling supplier as part of your lifting plan

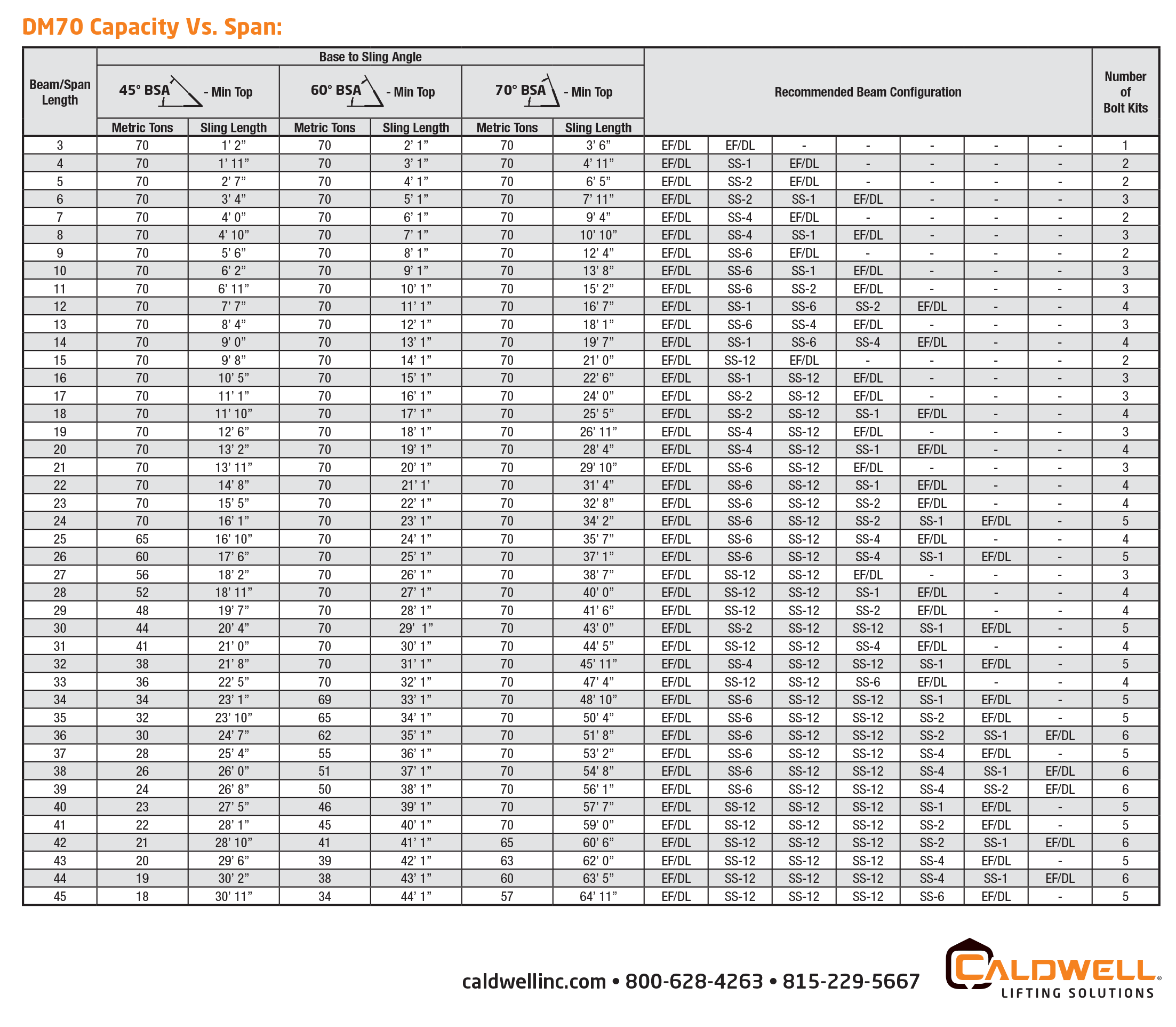

  • Reference the DM70 Capacity Vs. Span Chart for additional information.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
