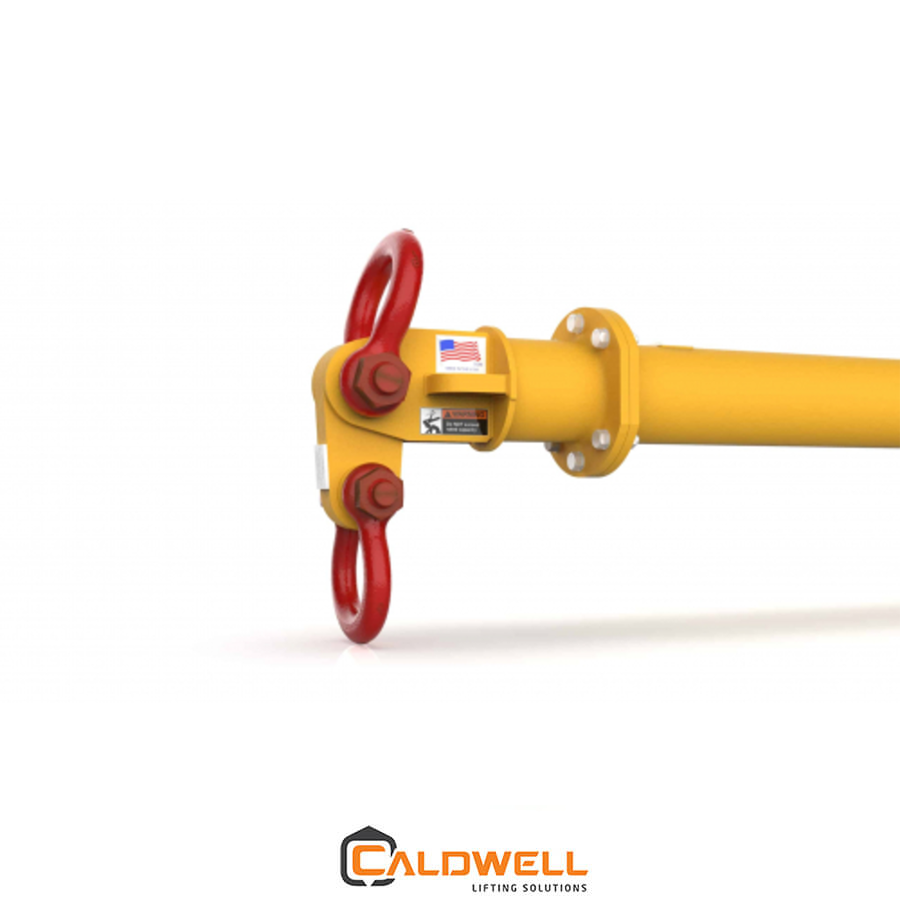

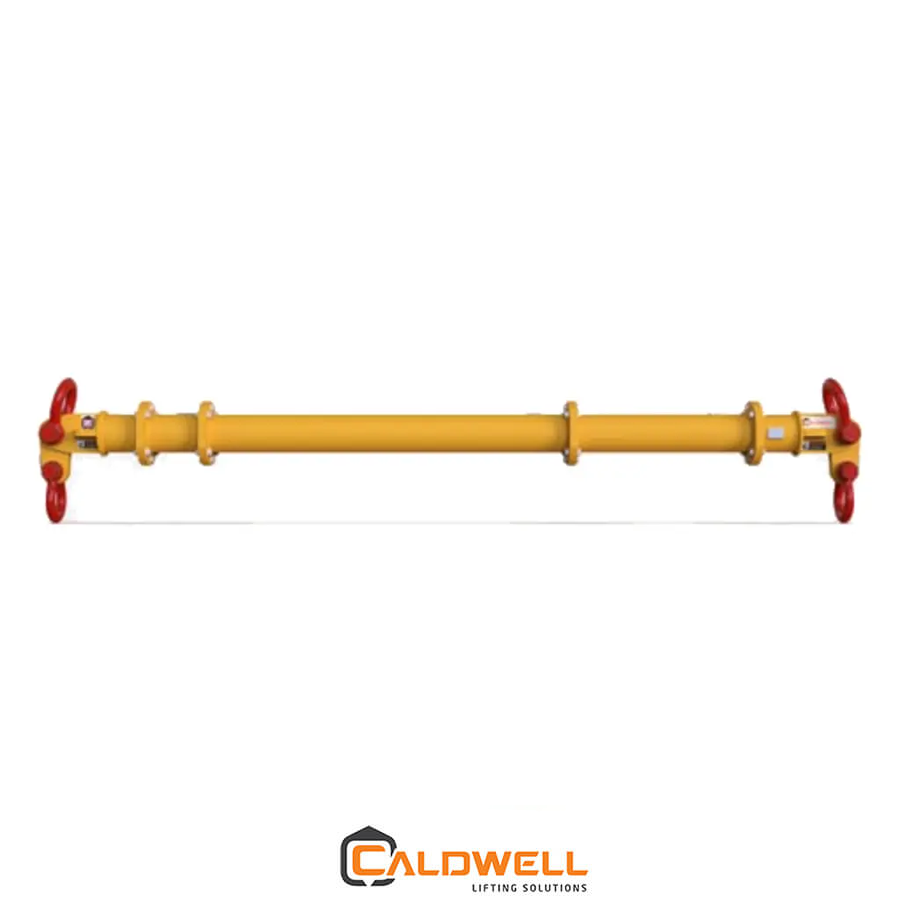

Caldwell Dura-Mod Model DM34 – 34-Ton Dura-Mod Modular Spreader Beam System

Caldwell Dura-Mod Model DM34 – 34-Ton Dura-Mod Modular Spreader Beam System
  • 34-ton modular beam system includes two 1.5’L end fittings, two drop links, four 6’L spreader sections, one 4’L spreader section, one 2’L spreader section, one 1’L spreader section, plus corresponding bolt kits to handle complete assembly
  • Lightweight in comparison to fixed/multiple point beams
  • Easy to transport and store; single longest component is only 6’L
  • Components can be reconfigured, added to or eliminated, to create different lengths and lifting capacities; see Capacity vs. Span chart
  • Conforms to ASME B30.20, BTH-1, Design Category B, Class 0

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Model Number Model Description Weight (lbs.) Number of Components Per Set
DM34-DL Drop Link 19 2
DM34-EF End Fitting 60 2
DM34-SS-1 1 ft. Spreader Section 38 1
DM34-SS-2 2 ft. Spreader Section 55 1
DM34-SS-4 4 ft. Spreader Section 85 1
DM34-SS-6 6 ft. Spreader Section 115 4
