Caldwell Dura-Mod Model DM110 – 2-Point 110-Metric Ton Spreader Beam System

Caldwell Dura-Mod Model DM110 – 2-Point 110-Metric Ton Spreader Beam System

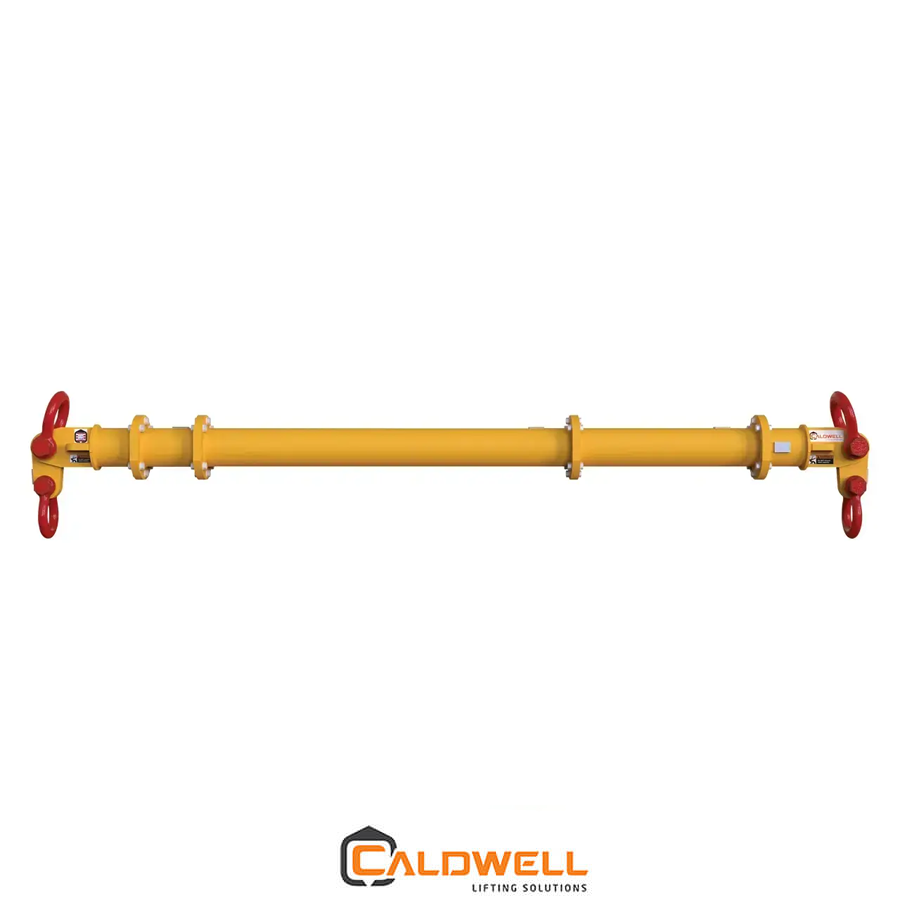

The Dura-Mod® 2-Point/110-Metric Ton Spreader Beam can be configured in spreads of 6′ to 59′. Order Spreader Sections, End Fittings, Drop Links, and Bolts separately to build the beam you want.

  • Lightweight in comparison to fixed/multiple point beams
  • Easy to transport and store; single longest component is only 20′
  • Two end units, drop links, and spreader sections make it fully customizable
  • Distributors are able to keep them stocked, offering customers quick ship access to certified spreaders
  • World-renowned Caldwell brand name on a modular spreader system
  • Components can be added and bought separately
  • Conforms to ASME B30.20, BTH-1, Design Category B, Class 0

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Model Number Model Description Weight (lbs.) Number of Components Per Set
DM110-SS-4 4 ft. Spreader Section 80 1

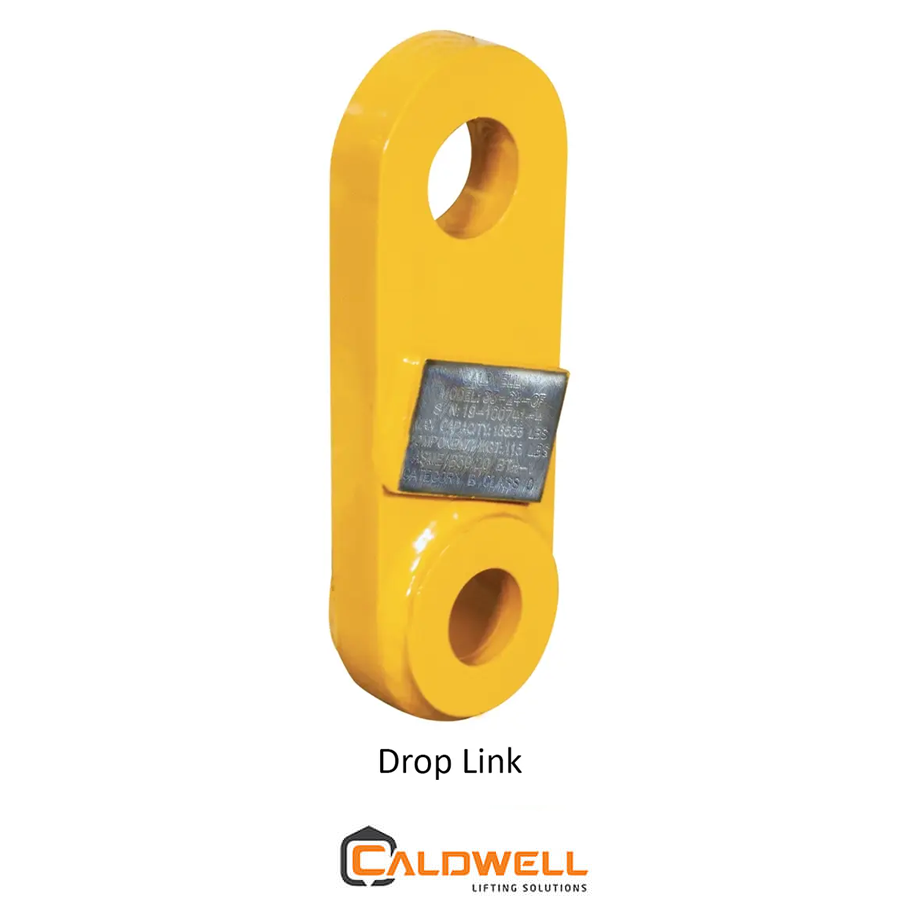

DM110-DL Drop Link 105 2

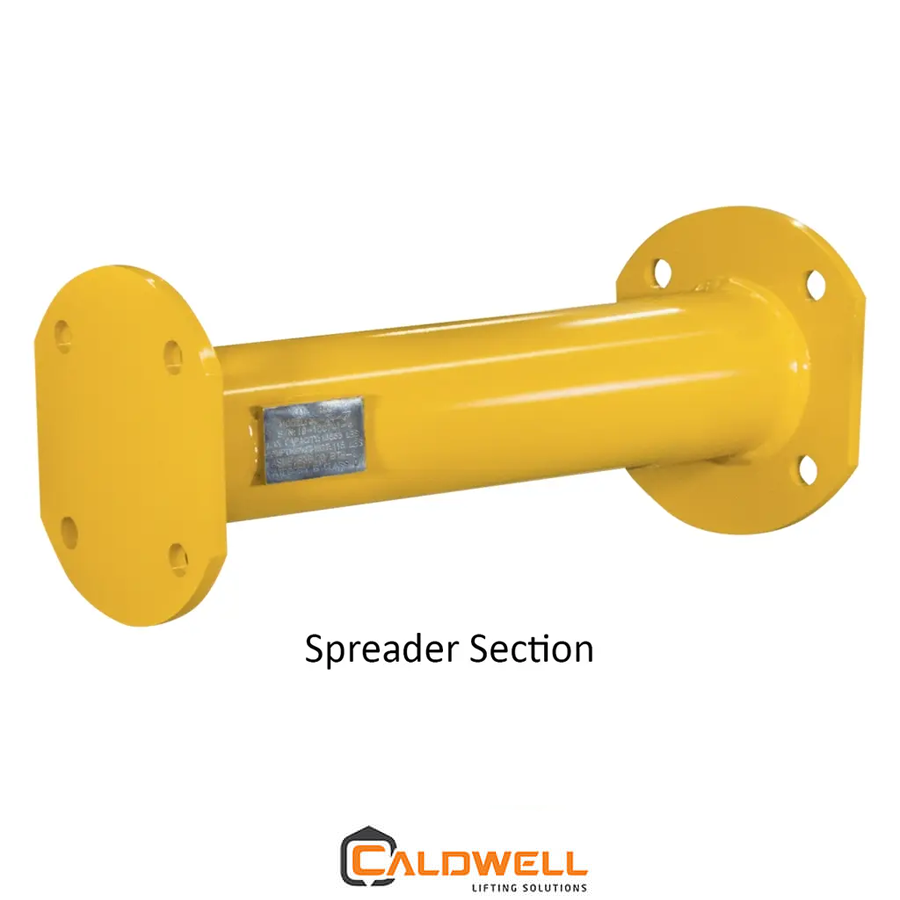

DM110-SS-1 1 ft. Spreader Section 185 1
DM110-SS-2 2 ft. Spreader Section 255 1

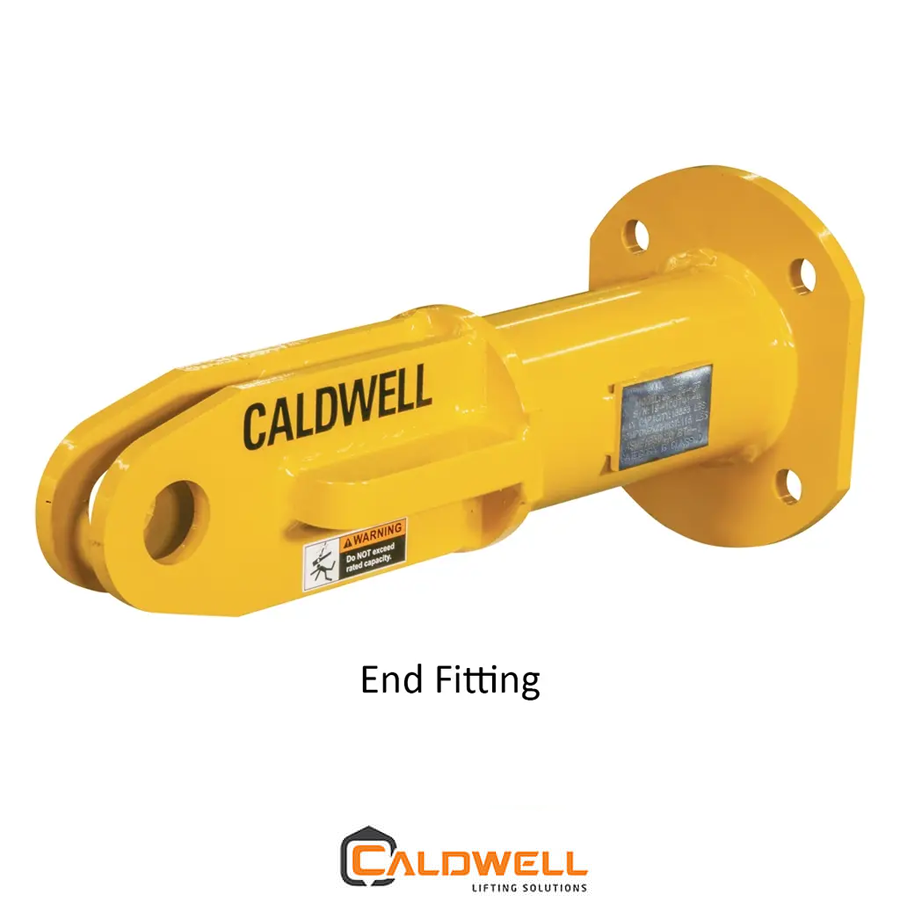

DM110-EF End Fitting 435 2
DM110-SS-6 6 ft. Spreader Section 515 1
DM110-SS-8 8 ft. Spreader Section 645 1
DM110-SS-10 10 ft. Spreader Section 775 1
DM110-SS-20 20 ft. Spreader Section 1425 2
  • Bolts, Nuts and Washers can be reused as long as Anti-Seize Thread coating is used
  • Slings and shackles are not provided as part of this assembly. Synthetic textile, chain and wire rope slings may be used. Consult your sling supplier as part of your lifting plan

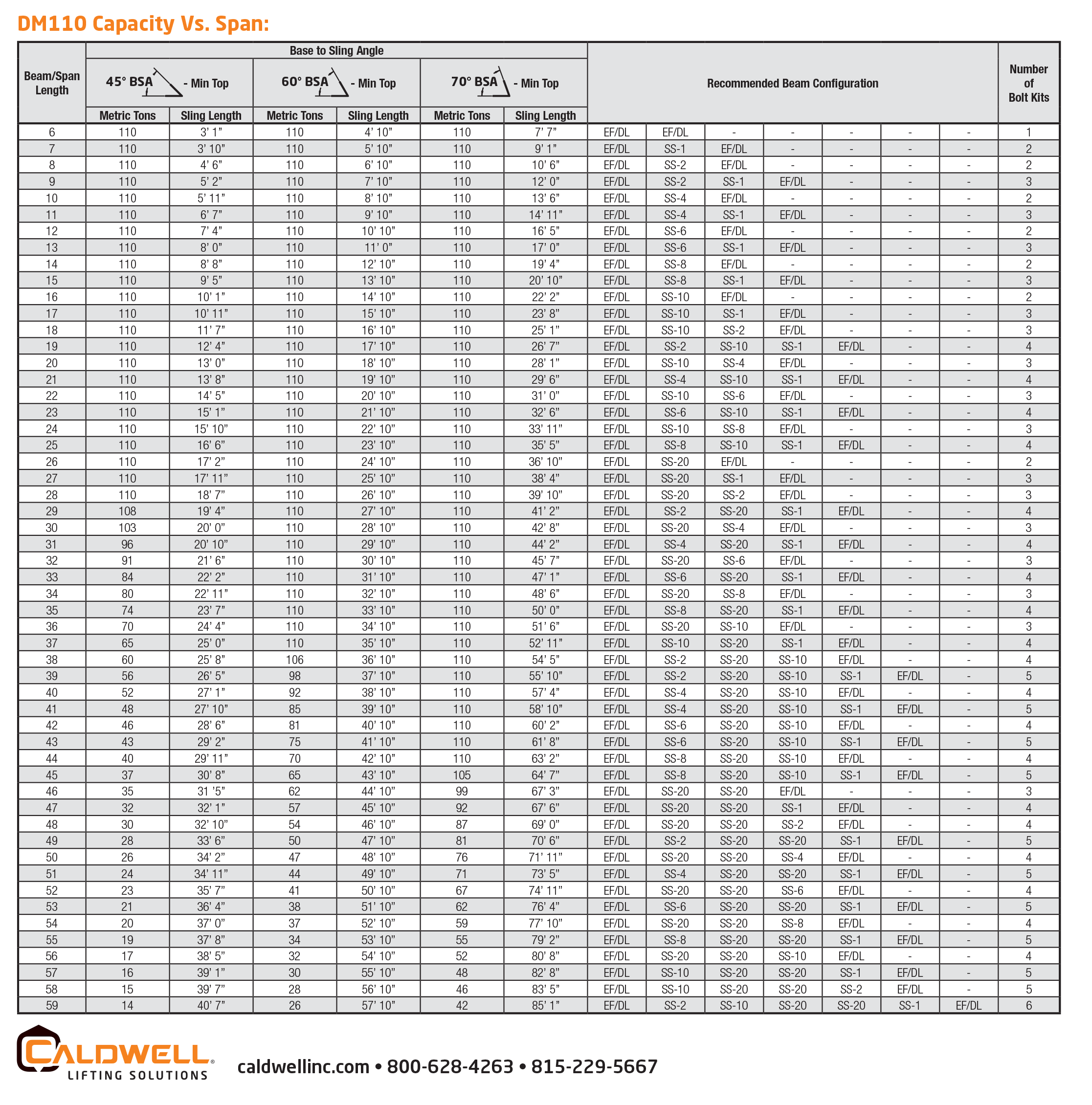

  • Reference the DM110 Capacity Vs. Span Chart for additional information.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
