X100® All Alloy Screw Pin Long Reach Shackle

X100® All Alloy Screw Pin Long Reach Shackle
APPROVED FOR OVERHEAD LIFTING

  • Approved for Overhead Lifting

  • Meets ASME B30.26 Requirements

  • 100% Forged Alloy Steel

  • Design Factor of 5:1

  • Markings: X100 Brand, Size, Working Load Limit, Traceability

  • Extended Bow: Designed for lifting applications that require an extended reach to connect to pick points

  • Easily recognizable X100 BLAZE ORANGE Powder Coating which provides protection from corrosion, and enables full exposure of identification markings

  • Hot Dip Galvanized prior to BLAZE ORANGE Powder Coating provides superior corrosion resistance

  • Load must be evenly distributed over entire pin

  • To achieve full Working Load Limit, 80% minimum pin coverage is required

  • NEVER side load or point load pins or bodies


EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
STOCK NUMBER SIZE PIN DIAMETER WORKING LOAD LIMIT (TONS) WEIGHT/PIECE (LBS.) QTY/BOX
XLRSP625 5/8″ 0.75″ 3-1/2 2 20
XLRSP750 3/4″ 0.88″ 5 3.2 10
XLRSP100 1″ 1.00″ 9-1/2 6.2 6
XLRSP1250 1-1/4″ 1.38″ 14 12 4
XLRSP1500 1-1/2″ 1.50″ 17 19.2 2
XLRSP1750 1-3/4″ 2.00″ 25 30.4 1

Ultimate load is 5 times the Working Load Limit.

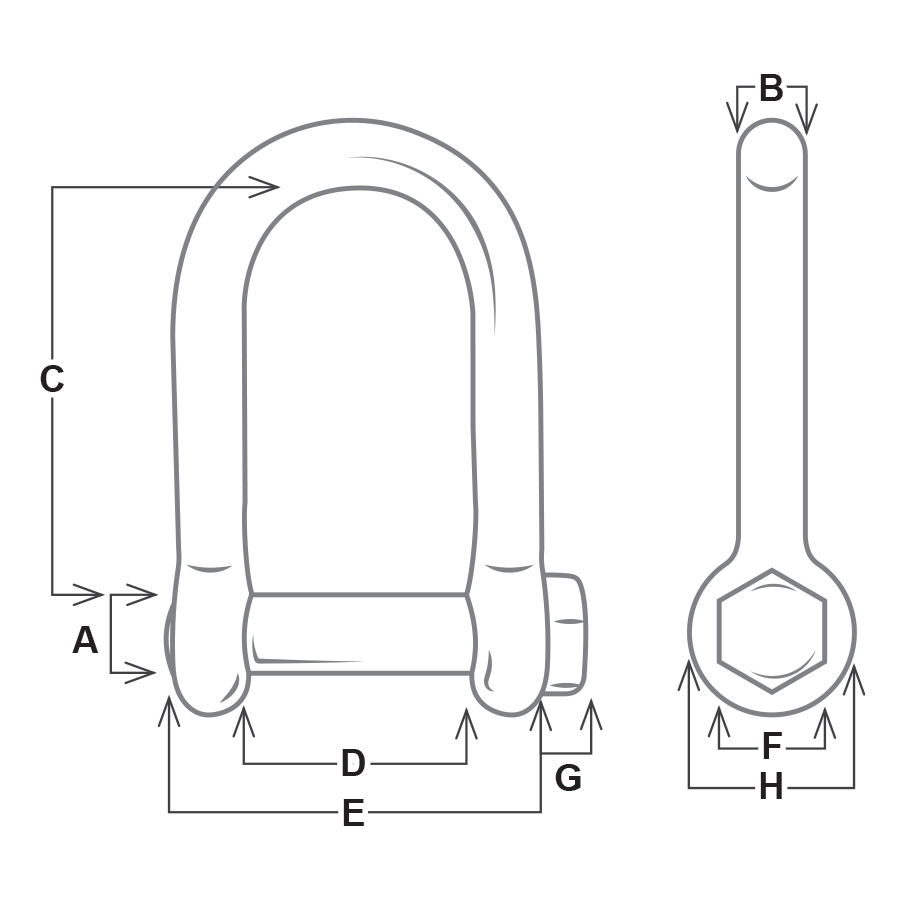

STOCK NUMBER DIMENSIONS
A B C D E F G H
XLRSP625 0.75″ 0.63″ 4.00″ 2.25″ 3.55″ 1.06″ 0.35″ 1.58″
XLRSP750 0.88″ 0.75″ 5.00″ 2.75″ 4.25″ 1.25″ 0.39″ 1.81″
XLRSP100 1.00″ 1.00″ 5.50″ 3.25″ 5.25″ 1.37″ 0.47″ 2.38″
XLRSP1250 1.38″ 1.25″ 6.25″ 3.88″ 6.37″ 1.94″ 0.59″ 3.06″
XLRSP1500 1.50″ 1.50″ 7.00″ 4.50″ 7.48″ 2.16″ 0.66″ 3.50″
XLRSP1750 2.00″ 1.75″ 8.00″ 5.25″ 8.75″ 2.70″ 0.80″ 4.00″



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
