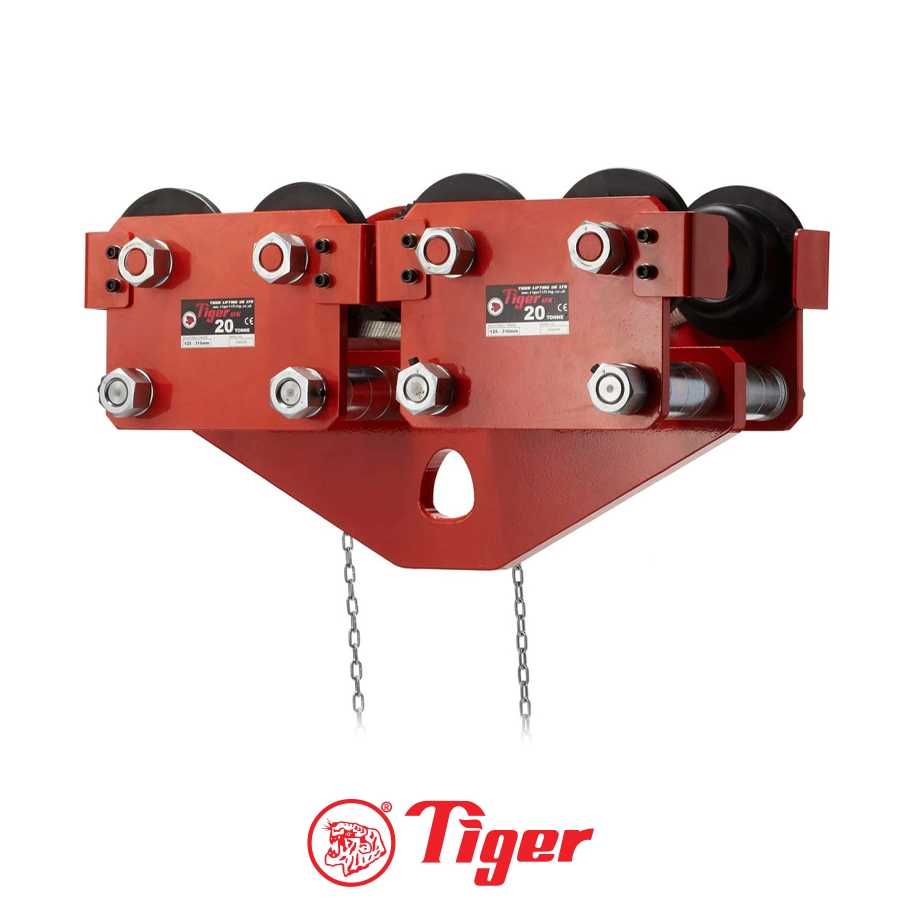

Tiger TP TG Trolley

Tiger TP TG Trolley
  • Plain Trolley Range from 0.5t to 10.0t
  • Geared Trolley Range from 0.5t to 35.0t
  • The anti-drop plates design ensures extra safety, and prevents damage to the wheels when contacting end rail stoppers
  • Tiger trolley wheels are specially designed with a convex profile eliminating potential point loading
  • The wheels run on sealed bearings for smoother rolling with less effort and maintenance
  • Twin bar or single bar trolleys available
  • Geared type available (with hand chain length to suit your requirements)
  • Extended beam width available
  • Corrosion or Spark Resistant versions available
  • Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • Optional beam locking device
  • Powder coated universal wheels suit both tapered and flat flange beams
  • The 5:1 factor of safety allows for use with manual or powered hoists

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
. Stock Number Capacity (tonne) D – Track width # Dimensions (mm) Min. curve radius (m) Net Weight (kg)
Range 1 (mm) Range 2 (mm) Range 3 (mm) A A+ B C E F G H J K
Single Bar Trolleys TPS-0050 0.5 62-128 62-203 140-310 195 235 106 106 98 20 64 10 24 30 0.8 5.0
TPS-0100 1.0 62-128 62-203 142-310 213 253 113 113 106 20 71 10 27 34 1.0 7.5
TPS-0200 2.0 88-154 88-230 194-310 236 284 136 136 132 25 80 13 38 45 1.3 12.0
TPS-0300 3.0 87-153 87-230 193-310 275 323 146 146 150 25 97 13 42 53 1.5 19.5
TPS-0500 5.0 106-194 106-310 – 323 371 169 169 174 30 117 16 46 59 1.5 30.5
Twin Bar Trolleys* TPT-0300 3.0 87-153 87-230 189-310 320 368 142 142 82 30 110 – – – 1.5 22.0
TPT-0500 5.0 106-194 106-310 – 352 400 167 166 91 30 131 – – – 1.5 35.5
TPT-0600 6.0 106-194 – – 352 400 167 166 91 32 131 – – – 1.5 37.5
TPT-1000 10.0 125-320 – – – 394 243 243 210 40 117 – – – 1.5 68.0
TPT-1500ǂ 15.0 150-320 – – – 509 271 271 248 42ǂ 182 – – – 2.7 144.0

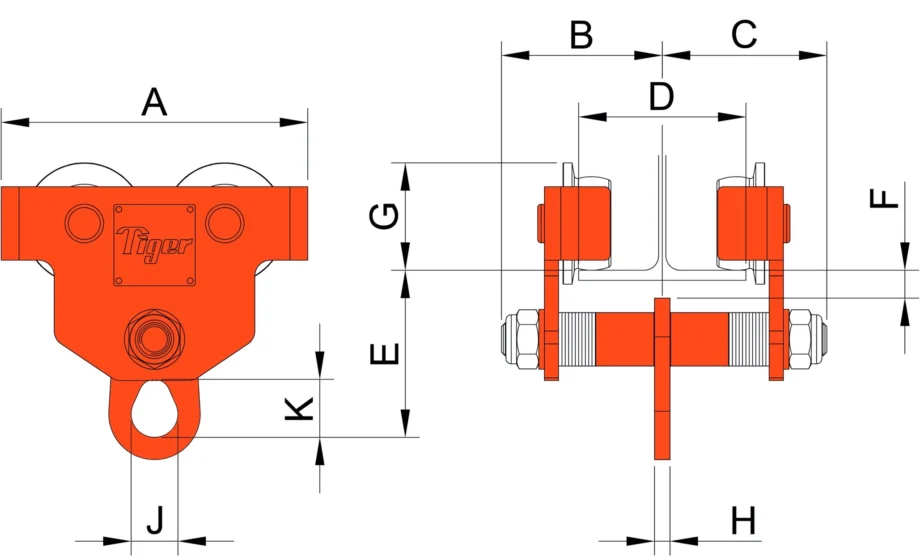

Single Bar Trolleys

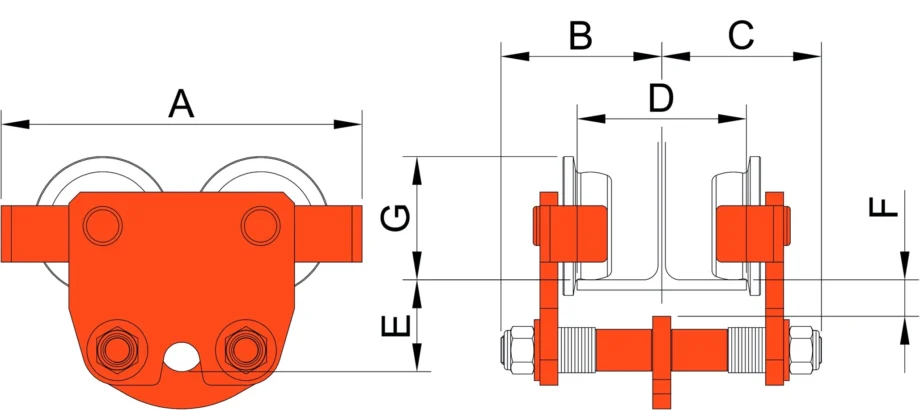

Twin Bar Trolleys

. Stock Number Capacity (tonne) D – Track width # Dimensions (mm) Min. curve radius (m) Net Weight (kg)
Range 1 (mm) Range 2 (mm) Range 3 (mm) A A+ B C E F G H J K L
Single Bar Trolleys TGS-0050 0.5 62-128 62-203 140-310 195 235 180 106 98 20 64 10 24 30 79 0.8 9.0
TGS-0100 1.0 62-128 62-203 142-310 213 253 180 113 106 20 71 10 28 34 82 1.0 11.0
TGS-0200 2.0 88-154 88-230 194-310 236 284 195 136 132 25 80 12 38 45 94 1.3 16.5
TGS-0300 3.0 87-153 87-230 193-310 275 323 198 146 150 25 97 13 42 52 126 1.5 24.5
TGS-0500 5.0 106-194 106-305 – 323 371 216 169 174 30 117 16 46 60 137 1.5 35.5
Twin Bar Trolleys* TGT-0300 3.0 87-153 87-230 189-310 320 368 194 142 82 30 110 16 – – 132 1.5 23.5
TGT-0500 5.0 106-194 106-305 – 352 400 216 166 91 30 131 19 – – 143 1.5 40.0
TGT-0600 6.0 106-194 – – 352 400 216 166 91 32 131 19 – – 156 1.5 42.0
TGT-1000 10.0 125-320 – – – 394 282 243 210 40 117 19 70 90 119 1.5 78.0
TGT-1500ǂ 15.0 150-320 – – – 509 338 271 248 42ǂ 182 22 75 100 35 2.7 161.0
TGT-2000ǂ 20.0 125-320 – – – 754 282 243 231 40ǂ 117 30 85 95 119 6.0 160.0
TGT-3000ǂ 30.0 150-320 – – – 1009 335 274 288 42ǂ 182 35 100 115 35 6.0 337.0
TGT-3500ǂ 35.0 150-320 – – – 1009 335 274 288 42ǂ 182 38 100 115 35 6.0 341.0

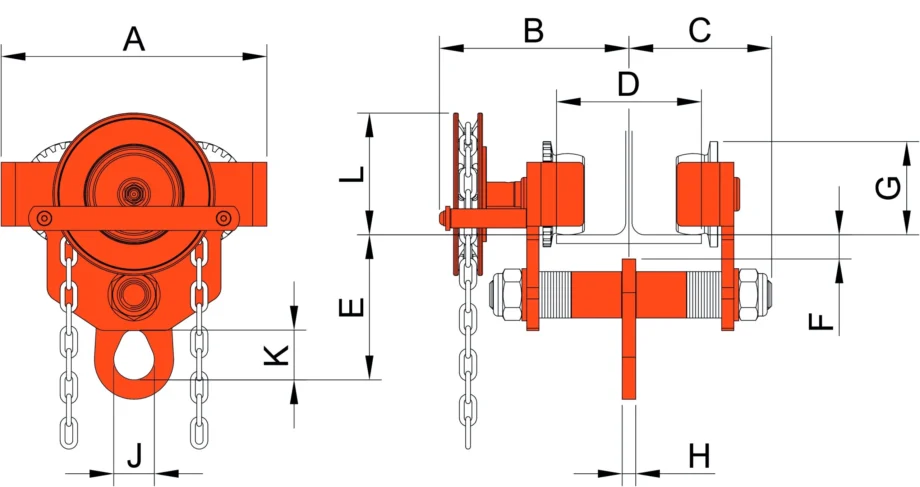

Single Bar Trolleys

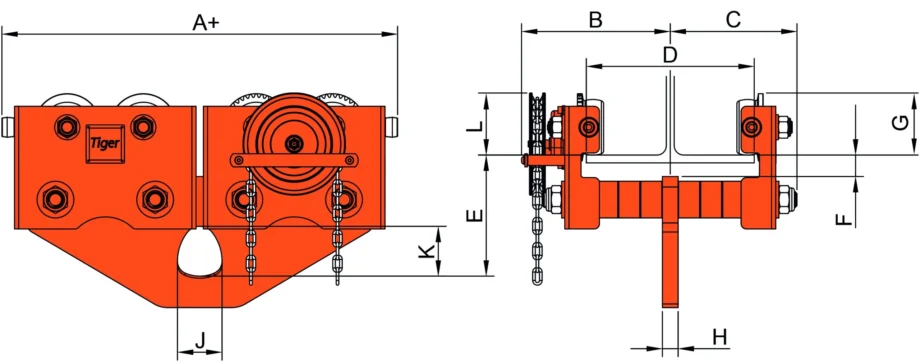

Twin Bar Trolleys
