| STOCK NUMBER | LIFTING CAPACITY (TONNE) | FALLS OF CHAIN | CHAIN SIZE (mm) | TOTAL WEIGHT (kg) | FULL LOAD LIFTING SPEED (m/min) @ 6 bar | FULL LOAD LIFTING SPEED (m/min) @ 4 bar | NO LOAD LIFTING SPEED (m/min) @ 6 bar | FULL LOAD LOWERING SPEED (m/min) @ 6 bar | NO LOAD LOWERING SPEED (m/min) @ 6 bar | AIR CONSUMPTION (m3/min) @ 6 bar | AIR CONSUMPTION (m3/min) @ 4 bar | TOGGLE & PILOT PENDANT CONTROL | E/STOP PILOT PENDANT CONTROL | SUPPLY HOSE (Inside ø) (mm) | SOUND LEVEL (dB(A)) FULL LOAD LIFTING @ 6 bar | SOUND LEVEL (dB(A)) FULL LOAD LOWERING @ 6 bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AH-030 | 3.0 | 1 | 13 X 36 | 76.5 | 5.3 | 3.8 | 7.5 | 8.3 | 6.8 | 4.0 | 2.6 | G ¾ | G ¾ | 25 | 81 | 83 |
| AH-060 | 6.0 | 2 | 13 X 36 | 99.5 | 2.6 | 1.9 | 3.7 | 4.1 | 3.4 | 4.0 | 2.6 | G ¾ | G ¾ | 25 | 81 | 83 |
| AH-103 | 10.0 | 3 | 13 X 36 | 139.5 | 1.6 | 1.1 | 2.4 | 2.6 | 2.2 | 4.0 | 2.6 | G ¾ | G ¾ | 25 | 81 | 83 |

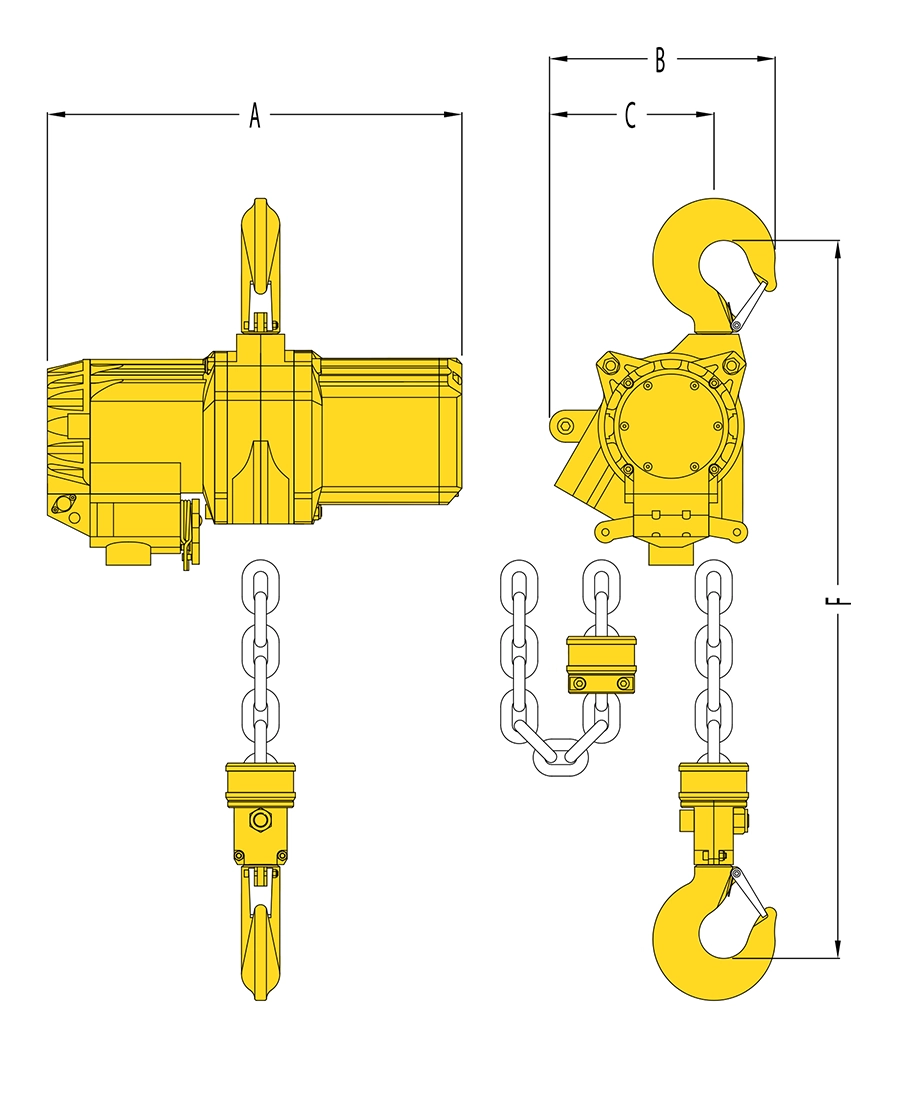

| STOCK NUMBER | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F (MIN) | G(MIN) | |
| AH-030 | 466 | 254 | 185 | – | – | 538 | – |
| AH-060 | 466 | 223 | 137 | 86 | 259 | – | 630 |
| AH-103 | 466 | 366 | 243 | 123 | 315 | – | 786 |
