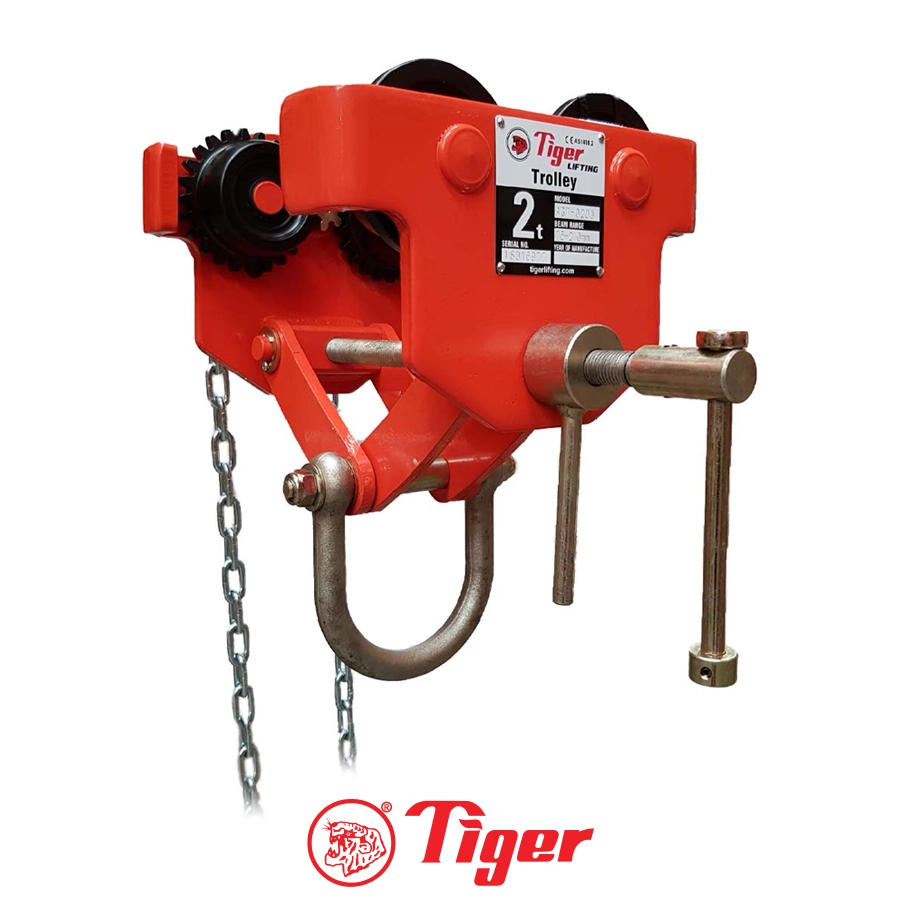

Tiger APT AGT Adjustable Trolley

Tiger APT AGT Adjustable Trolley
  • Range from 1.0t to 10.0t
  • Fitted with a screw spindle which allows lockable adjustment to the various flange sizes within its capacity
  • The anti-drop plates design ensures extra safety and prevents damage to wheels when contacting end rail stoppers
  • Wheels run on sealed bearings for smoother rolling with less effort and maintenance
  • Powder coated universal wheels suit both tapered and flat flange beams
  • Locking device with high clamping force
  • Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • The 5:1 factor of safety allows for use with manual or powered hoists

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

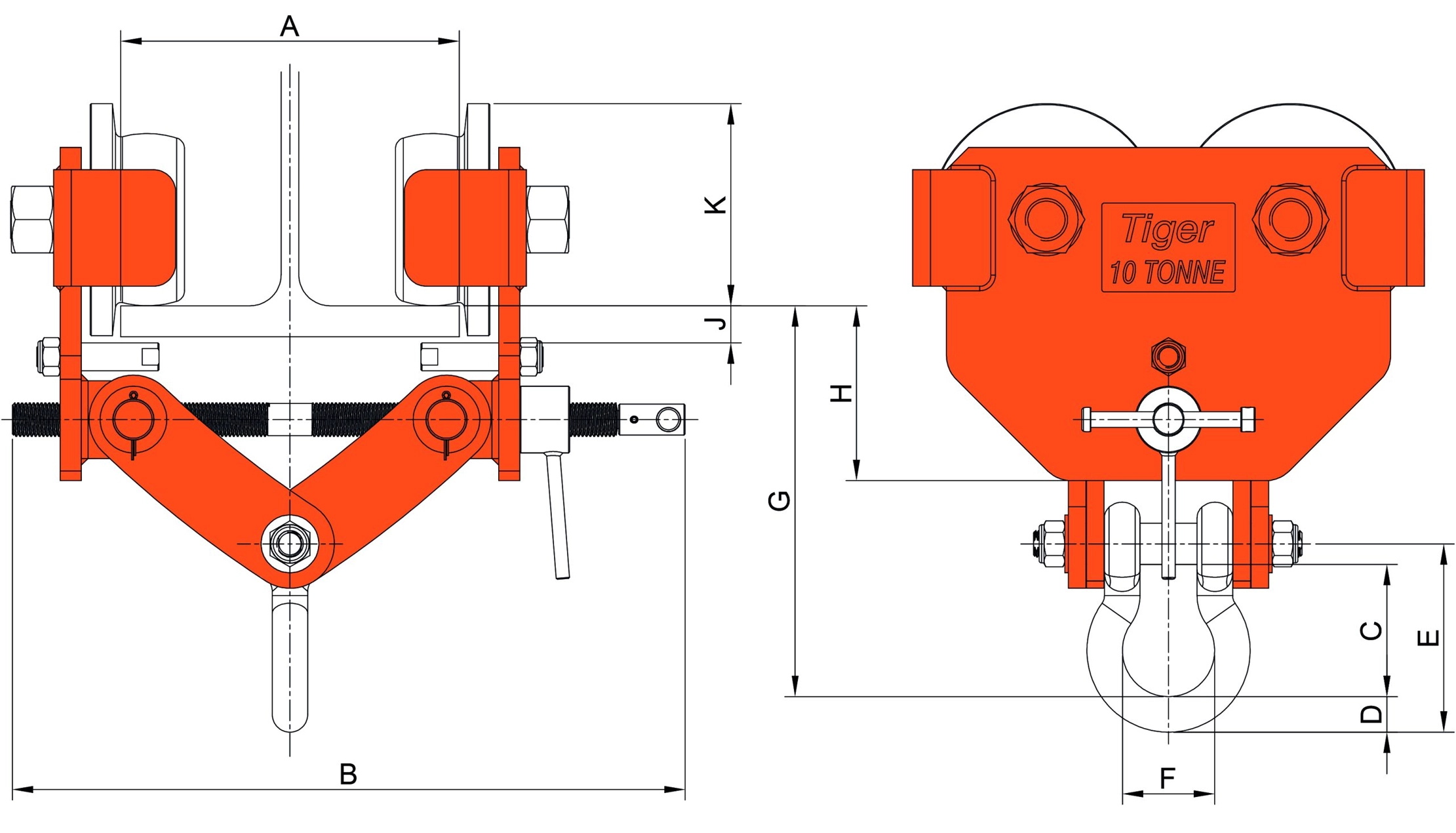

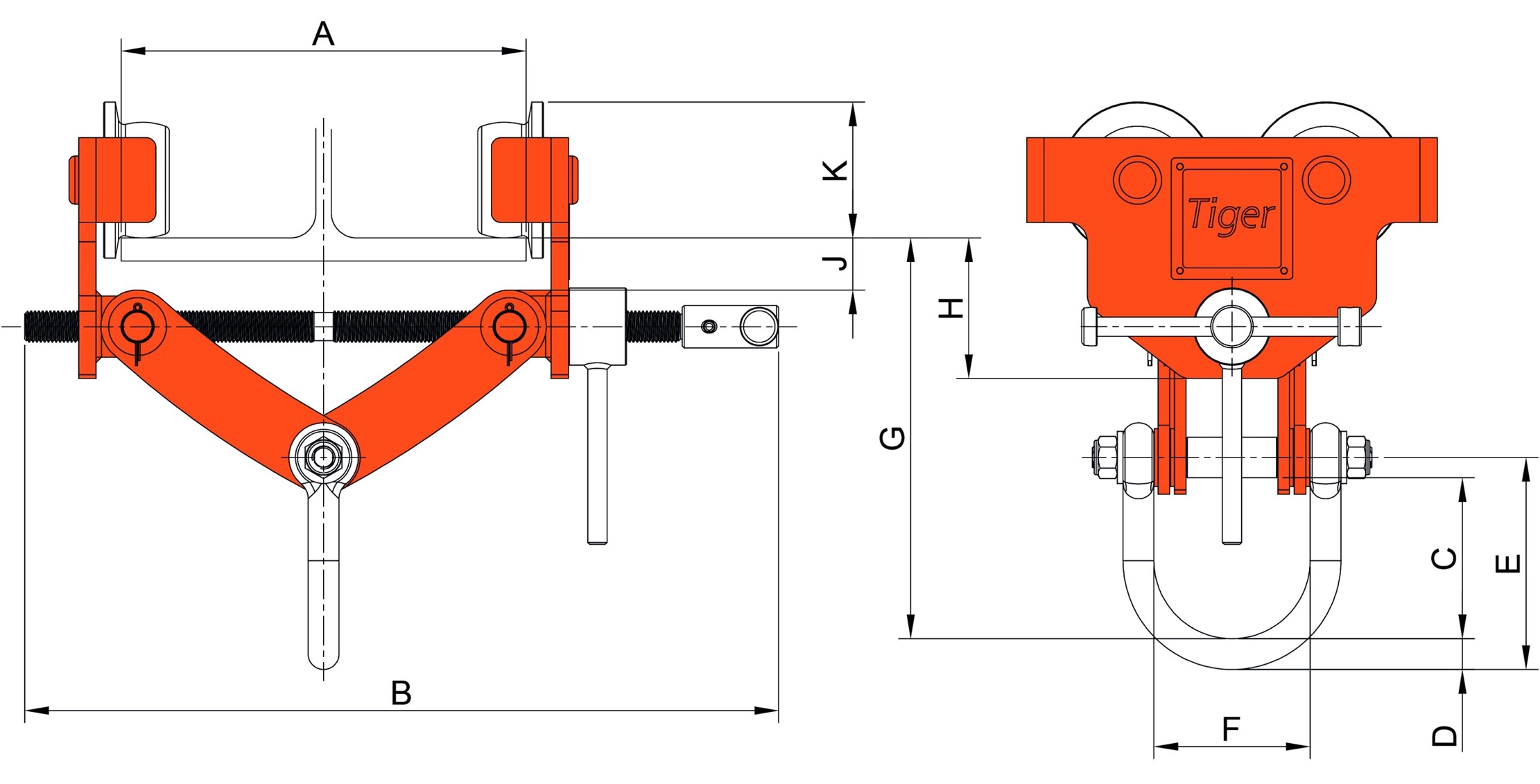

Stock Number Capacity (tonne) Track width range
(mm)		 Dimensions (mm) Min. curve radius (m) Net Weight (kg)
A B C D E F G H J K
APT-0100 1.0 75-210 391 83 16 110 81 255-208 73 27 71 1.0 9.5
APT-0200 2.0 75-210 391 94 18 123 89 276-227 79 38 80 1.3 13.5
APT-0300 3.0 75-210 403 105 22 141 112 288-241 99 35 97 1.5 23.0
APT-0600 6.0 105-305 521 111 27 151 125 358-290 115 46 117 1.5 35.5
APT-1000 10.0 160-305 606 119 32 170 83 407-352 157 33* 182 2.7 110.0

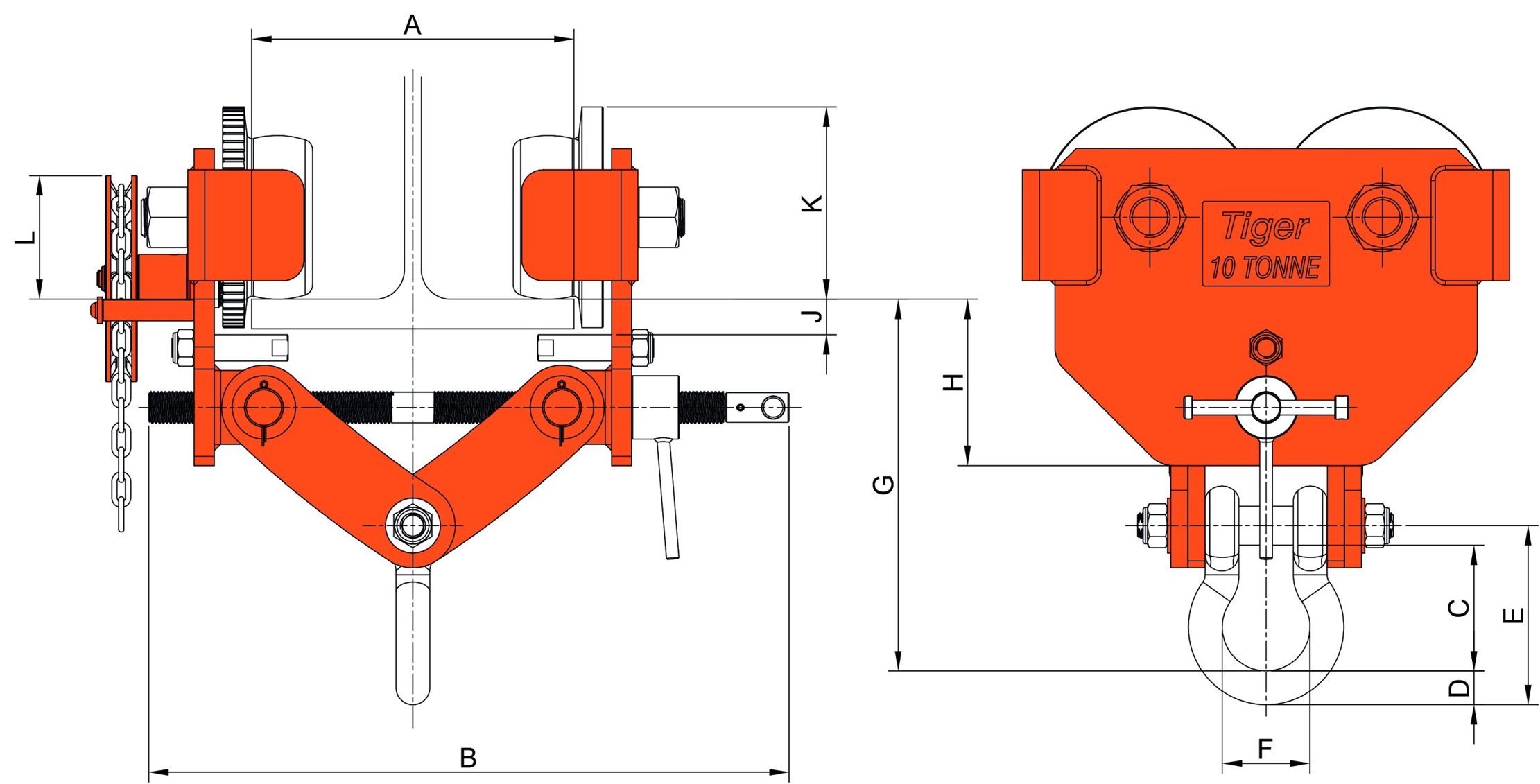

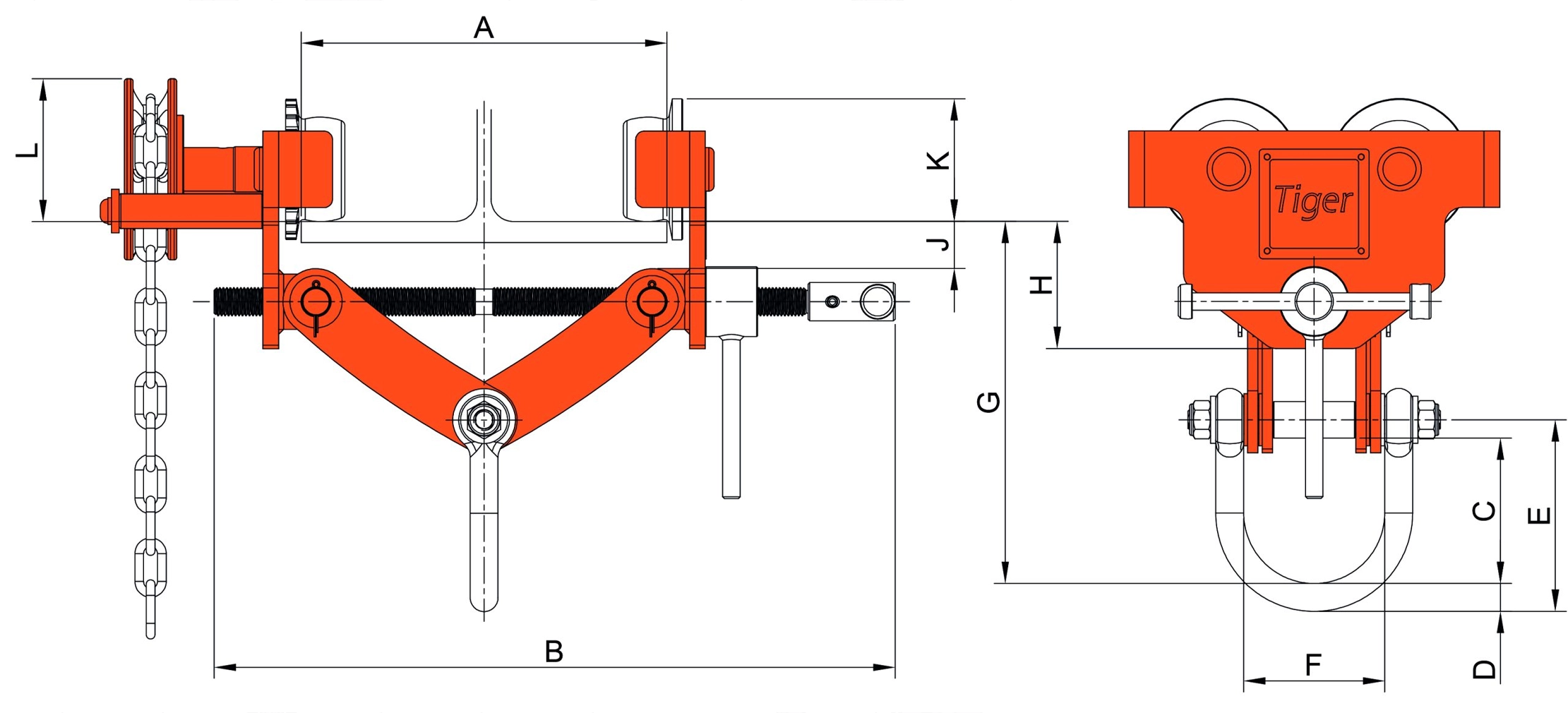

Stock Number Capacity (tonne) Track width range
(mm)		 Dimensions (mm) Min. curve radius (m) Net Weight (kg)
A B C D E F G H J K L
AGT-0100 1.0 75-210 391 83 16 110 81 255-208 73 27 71 82 1.0 13.0
AGT-0200 2.0 75-210 391 94 18 123 89 276-227 79 38 80 94 1.3 17.0
AGT-0300 3.0 75-210 403 105 22 141 112 288-241 99 35 97 126 1.5 28.5
AGT-0600 6.0 105-305 521 111 27 151 125 358-290 115 46 117 137 1.5 40.0
AGT-1000 10.0 160-305 606 119 32 170 83 407-352 157 33* 182 117 2.7 120.0

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
