Eliminates Costly Down Time With Lift After Lift, Built-In Dependability
| CERTEX Cat. Ref. No | Specifications | ||||||||||||||

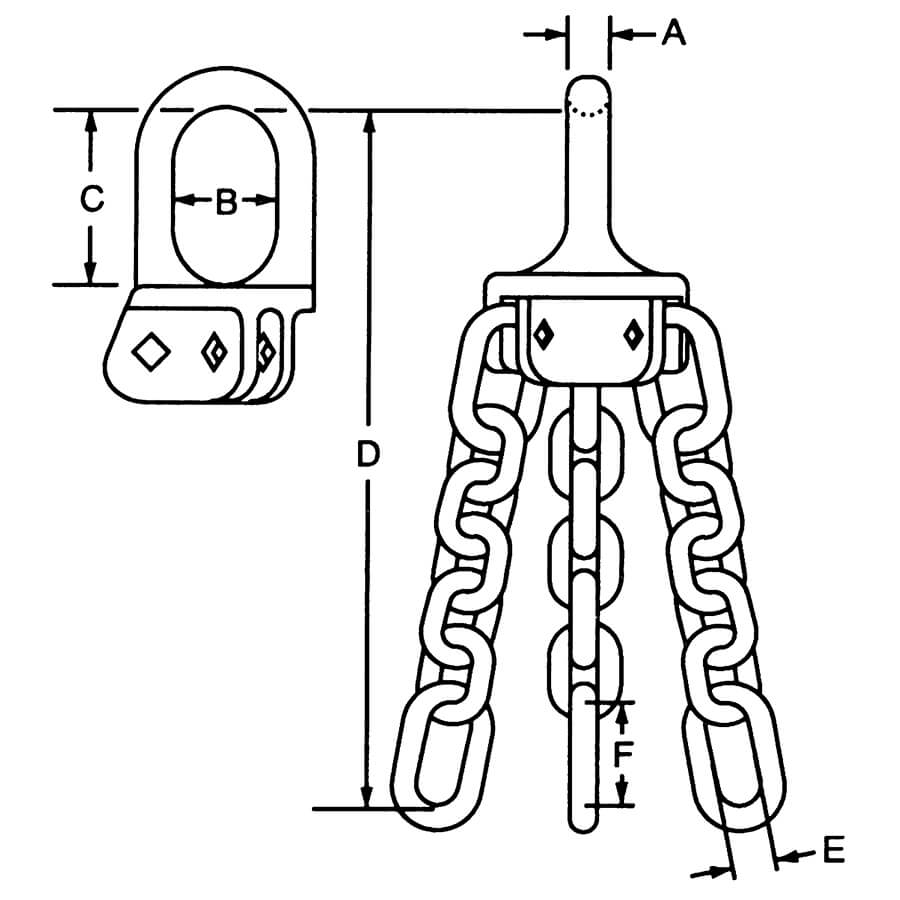

| Size of Chain | *W.L.L. Lbs. | No. of Links | A Mtl. Dia. | B Yoke Wth | C Yoke Lgh. | D Vert. Reach | E End Link Wth. | F End Link Lgh. | G End Link Dia | Comp. Assy. Wt. Lbs. | Yoke Wt. Lbs. | Chain Leg. Wt. Lbs | Pin Wt. Lbs. Ea. | Magnet Diameter In. | |
| CX06-0261 | 1 | 100,000 | 5 | 2-1/4 | 7 | 12 | 3’ -7” | 2-5/8 | 7 | 1-1/4 | 220 | 110 | 31 | 5.0 | up to 60 |
| CX06-0262 | 1-1/4 | 150,000† | 7 | 2-1/2 | 7 | 12 | 4’ -7” | 2-3/4 | 7 | 1-1/2 | 350 | 155 | 60 | 5.5 | 60 and over |
† Values shown are grade 63, embossed ‘AS’
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
