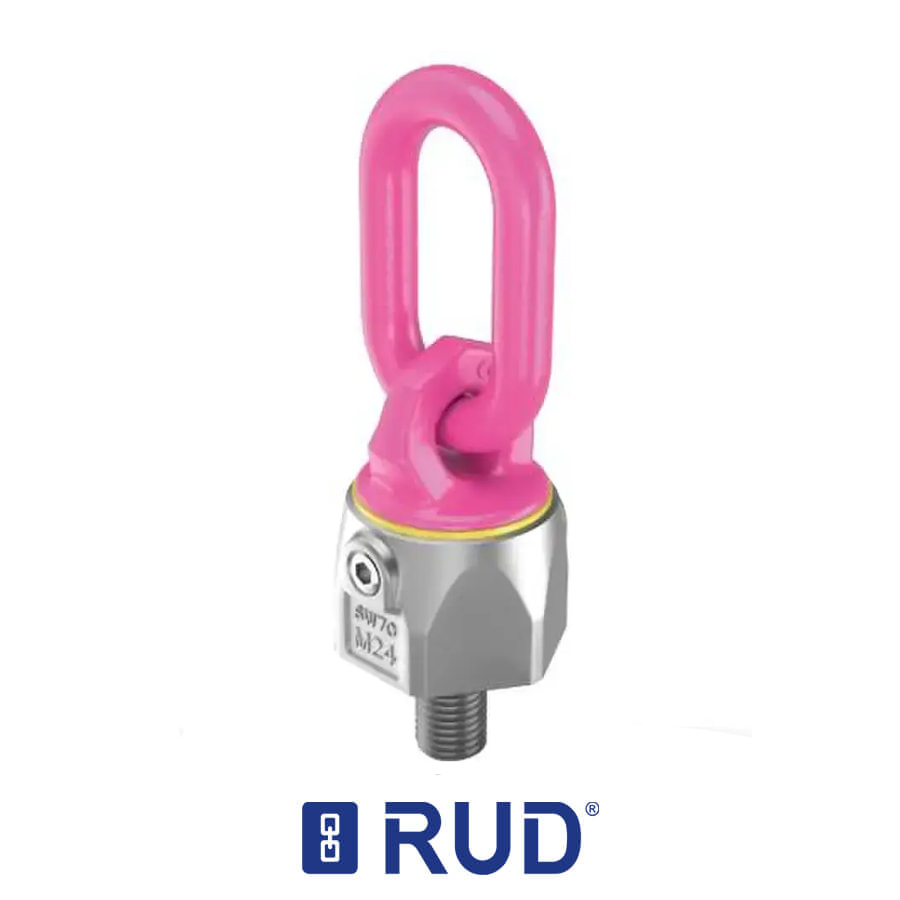

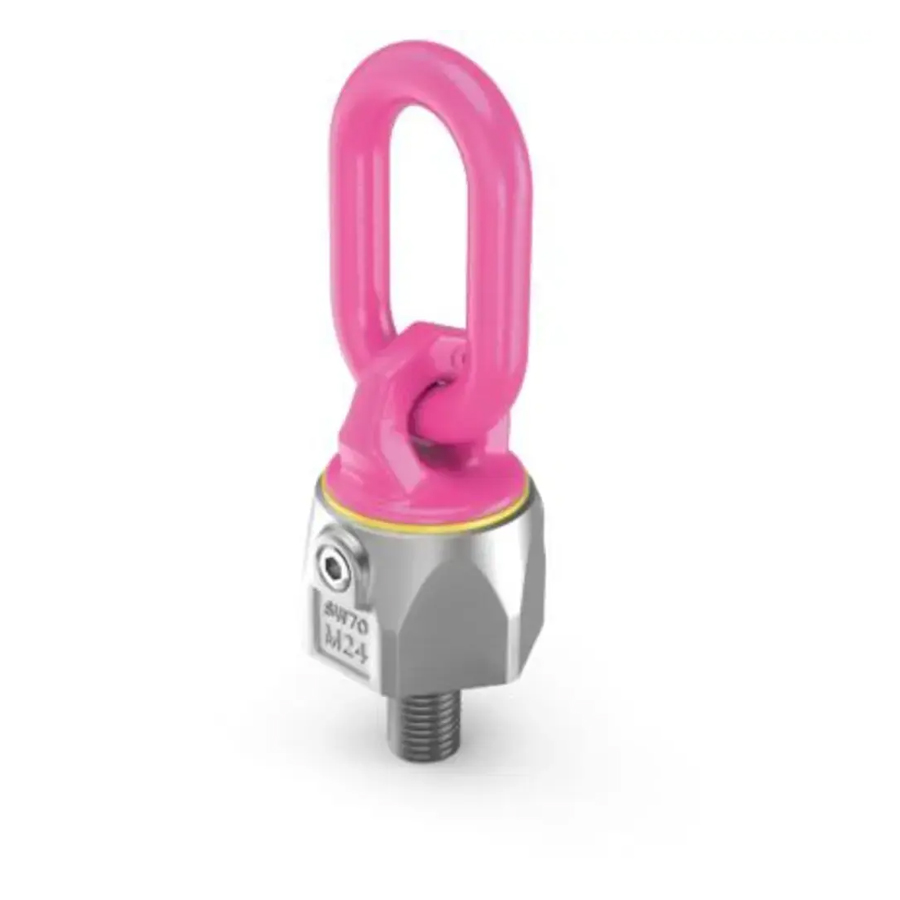

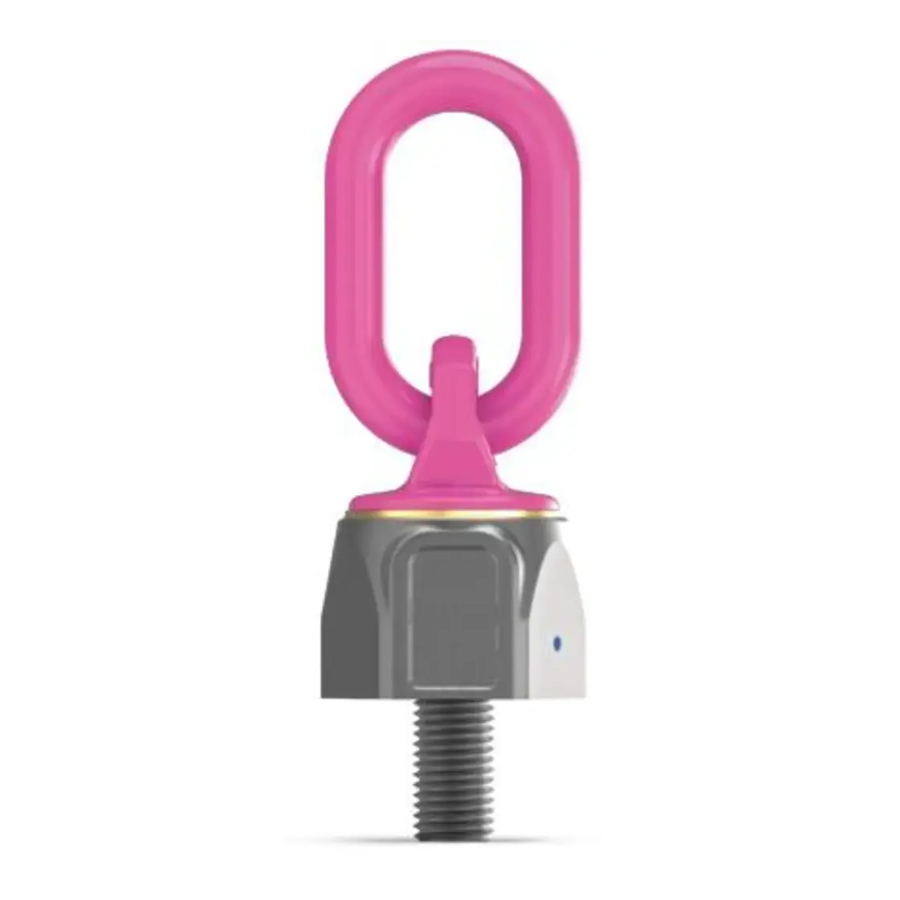

RUD VWBG-V Load ring, UNC thread with variable length

RUD VWBG-V Load ring, UNC thread with variable length

Product Features:

  • Large WLL range 0.3 t – 5 t

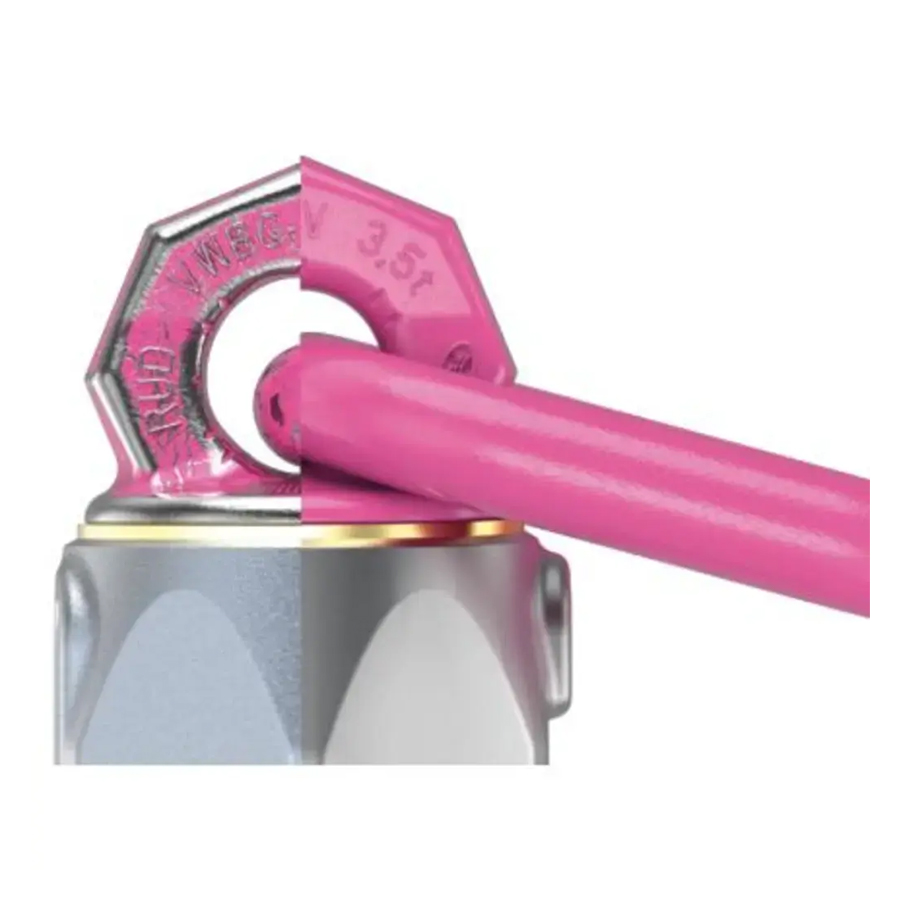

  • Clear indication of the minimum WLL for all loading directions. Higher WLL by optimised attachment or application
  • Rotatable 90° to the bolt-on direction under rated WLL
  • Variable bolt lengths available for use in threaded and through holes
  • Non-removable special bolt (do not use unsuitable standard screws)
  • RUD bolts with special corrosion protection Corrud-DT
  • Large clearance between the bolt-on surface and load to prevent damage

EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

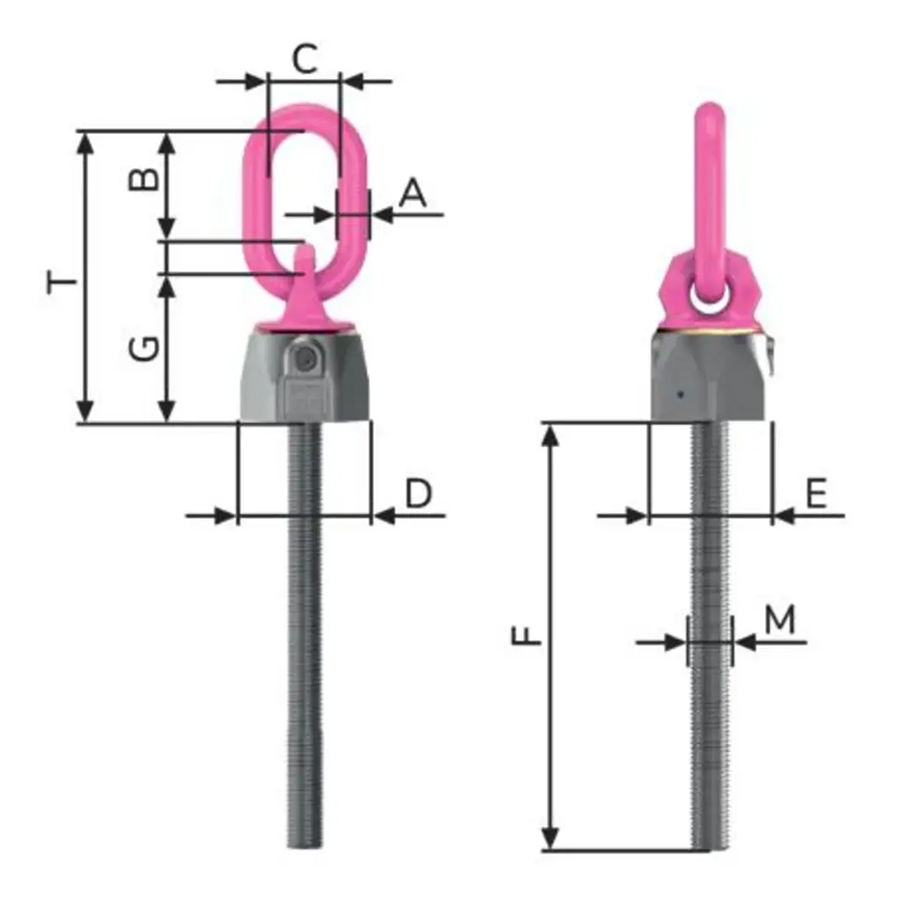

Model Number WLL-X (lbs.) WLL-Y (lbs.) WLL-Z (lbs.) A (mm) B (mm) C (mm) D (mm) E (mm) F Max (mm) F Min (mm) G (mm) M Pitch T (mm) In Stock Price
8600331 790 1050 1580 8 31 29 33.5 30 124 31 38 3/8″-16UNC 78 ❌ $
8600332 1050 1320 2110 10 49 35 42 36 149 40 47 1/2″-13UNC 107 ❌ $
8600333 2280 2640 4580 13 46 38 48 41 180 51 56 5/8″-11UNC 114 ❌ $
8600334 3520 4400 7040 13 54 35 62 55 222 56 67 3/4″-10UNC 137 ❌ $
8600335 6170 7040 12340 18 66 40 81 70 246 64 88 1″-8UNC 173 ✔ $
8600336 8810 10580 17630 22 90 50 99 85 91 47 106 1 1/4″-8UN 221 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
