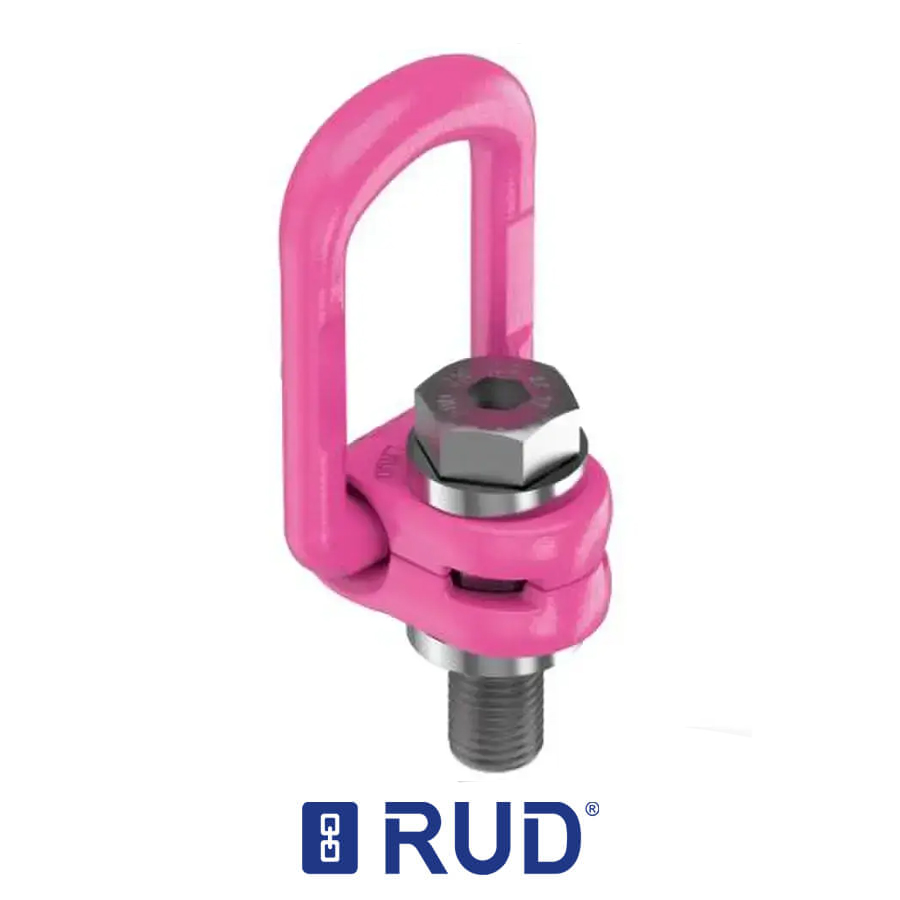

RUD VLBG Ring Bolt, metric fine thread with max length

RUD VLBG Ring Bolt, metric fine thread with max length

Product Features:

  • Large WLL range
  • Captive but exchangeable RUD-Bolt with special corrosion protection Corrud-DT
  • The clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple hinging of the lifting means is possible or a flat design in the folded state

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Model Number WLL (tons) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H Max (mm) H Min (mm) I (mm) K (mm) L Max (mm) M N (mm) Pitch T (mm) In Stock Price
8600399 M14 1.5 FINE 1.2 33 56 36 30 39 13.5 36 34 14 86 47 70 M14x1.5 38 85 ❌ $
8600383 M16 1.5 FINE 1.5 33 56 36 30 39 13.5 36 39 16 86 47 52 M16x1.5 38 85 ❌ $
8600384 M18 H47 2 50 82 54 45 55 16.5 43 47 18 113 64 90 M18x1.5 48 110 ❌ $
8600386 M24 X 1.5 H26MM 4 50 82 54 45 67 18 43 62 24 130 78 105 M24x1.5 48 125 ❌ $
8600388 5 60 103 65 60 67 22.5 61 74 30 151 80 135 M30x2 67 147 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
