RUD Load Ring – VLBS-U-LT For Welding

RUD Load Ring - VLBS-U-LT For Welding

  • Suspension ring can be pivoted through 180°
  • Proof of deep temperature ability down to – 45° C via notch bar impact test
  • Suspension ring adjustable in the required position
  • Suspension ring and weld-on block is captive due to the retaining spring

EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

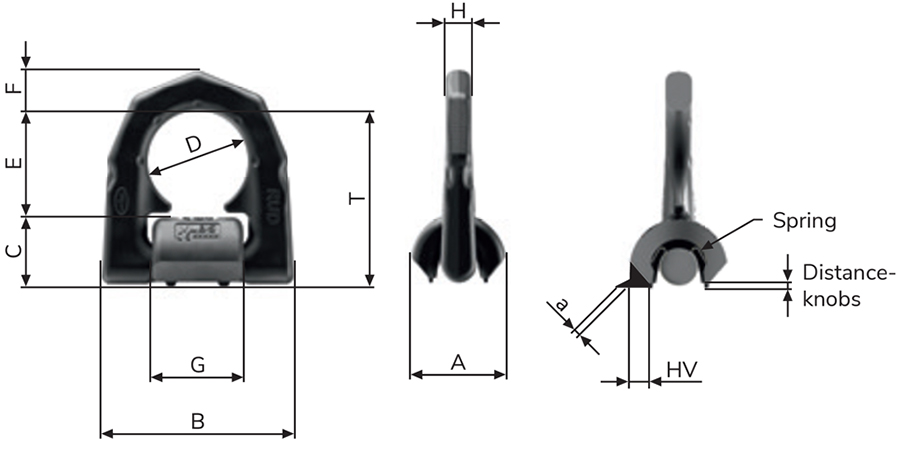

Type WLL (t) Weight (kg/unit) Dimensions (mm) Welding Seam
T  A B C D E F G H
VLBS-U-LT 2.5 t 2.5 0.53 75 36 77 27 45 47 16 40 14 HV7 + a3
VLBS-U-LT 4 t 4 0.76 83 42 87 31 51 52 18 46 16 HV8 + a3
VLBS-U-LT 6.7 t 6.7 1.9 117 61 115 44 67 73 24 60 22 HV12 + a4
VLBS-U-LT 10 t 10 2.76 126 75 129 55 67 71 26.5 60 26 HV16 + a4



  • The new VLBS forged out of high tensile CrNiMo – steel with an innovative design offers many advantages.
    • Up to 50% higher WLL.
    • The two protective supporting lugs (inside the load ring) are patented and they improve the connection with the attachment in addition to the protected clamping spring.
    • The support effect is exceptional, especially if the ring is side loaded or the lifting point is welded on an uneven work piece.
    • The special fluorescent pink powder coating permanently highlights the maximum temperature at which the VIP chain has been used.
  • Easy and quick to weld assemble.
  • Compact and shapely design.
  • High dynamic and static strength.
  • Forged suspension ring acc. to EN 1677, grade 80, electromagnetic crack detected, pink powder coated; meets the requirements of the appropriate safety authorities.
  • The welding block has been forged of material 1.0570 (St 52-3) and clearly stamped with the permissible WLL. The patented distance lugs assist in achieving the correct root weld.
  • Important: By the special weld design (continuous HV), the requirements of DIN 18800 are fulfilled, i.e., a closed weld avoids corrosion and thus suitable for outdoor use.
  • Distinctive features for type LBS-U: A protected spring maintains the load ring in every required position. The parts are assembled in such a way that they remain captive.
  • The spring reduces vibration induced noise.
