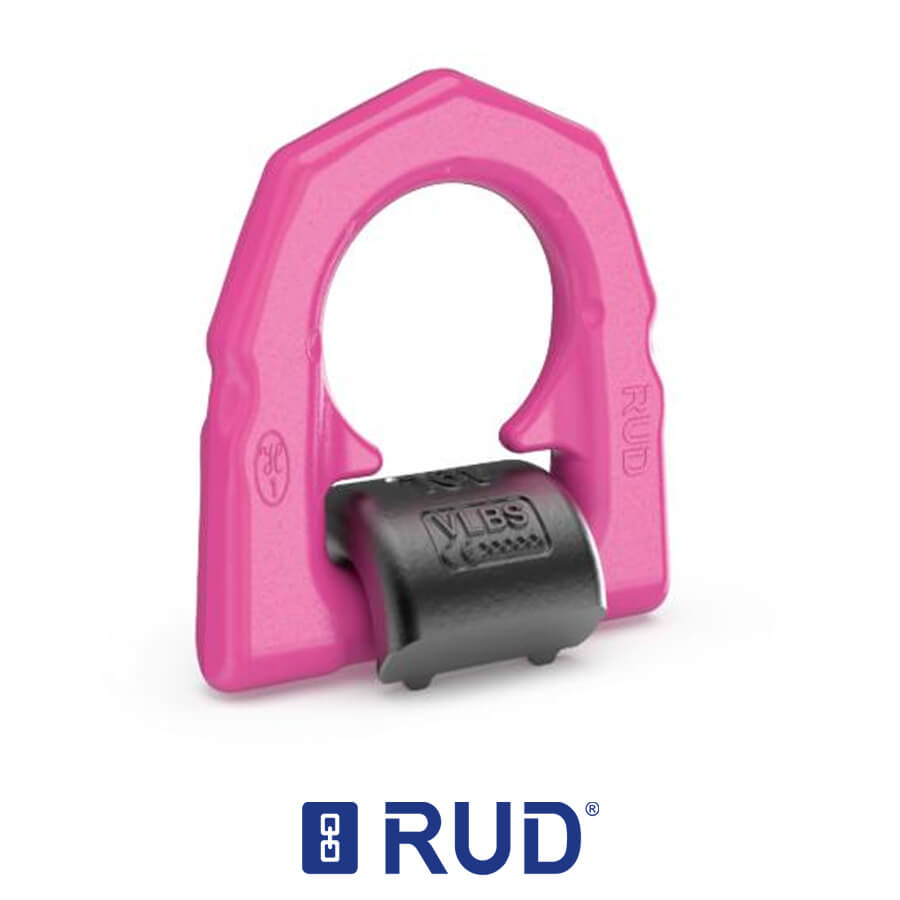

RUD Load Ring – VLBS For Welding

RUD Load Ring - VLBS For Welding

  • Available with or without clamping spring
  • Large WLL range 1.5 t – 16 t
  • Functionally optimised shape of the suspension ring for better support at side loading
  • Suspension ring can be pivoted through 180°
  • WLL possible up to 90° in load ring plane
  • Distance knobs on the weld-on block for the necessary distance for root welding

EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

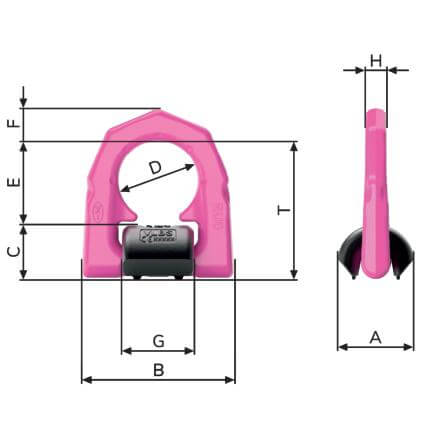

Type RUD No. captive complete RUD No. without spring WLL lbs. A B C D E ØF G H I T Weld Weight lbs.
VLBS 1.5 79 93 035 79 93 115 3300 1-1/4 2-5/8 1-1/2 63/64 1-9/16 17/32 1-19/64 3-7/16 9/16 2-9/16 HV 5+3 0.77
VLBS 4 79 93 036 79 93 116 8800 1-21/32 3-27/64 2 1-1/4 2-3/64 21/32 1-13/16 4-13/32 45/64 3-16/64 HV 8+3 1.76
VLBS 6.7 79 93 037 79 93 117 14740 2-13/32 4-15/32 2-5/8 1-47/64 2-7/8 7/8 2-3/8 6-3/16 15/16 4-21/32 HV 12+4 4.18
VLBS 10 79 93 038 79 93 118 22000 2-61/64 5-5/64 2-5/8 2-5/32 2-51/64 1-3/64 2-3/8 6-13/16 1-3/64 4-31/32 HV 16+4 14.96
VLBS 16 – 79 93 041 35200 3-3/4 7-31/64 3-15/16 2-23/32 4-1/8 1-1/64 3-35/64 9-9/16 1-37/64 6-55/64 HV 25+6 14.96

  • The new VLBS forged out of high tensile CrNiMo – steel with an innovative design offers many advantages.
    • Up to 50% higher WLL.
    • The two protective supporting lugs (inside the load ring) are patented and they improve the connection with the attachment in addition to the protected clamping spring.
    • The support effect is exceptional, especially if the ring is side loaded or the lifting point is welded on an uneven work piece.
    • The special fluorescent pink powder coating permanently highlights the maximum temperature at which the VIP chain has been used.
  • Easy and quick to weld assemble.
  • Compact and shapely design.
  • High dynamic and static strength.
  • Forged suspension ring acc. to EN 1677, grade 80, electromagnetic crack detected, pink powder coated; meets the requirements of the appropriate safety authorities.
  • The welding block has been forged of material 1.0570 (St 52-3) and clearly stamped with the permissible WLL. The patented distance lugs assist in achieving the correct root weld.
  • Important: By the special weld design (continuous HV), the requirements of DIN 18800 are fulfilled, i.e., a closed weld avoids corrosion and thus suitable for outdoor use.
  • Distinctive features for type LBS-U: A protected spring maintains the load ring in every required position. The parts are assembled in such a way that they remain captive.
  • The spring reduces vibration induced noise.



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
