Renfroe Model NM

Renfroe Model NM

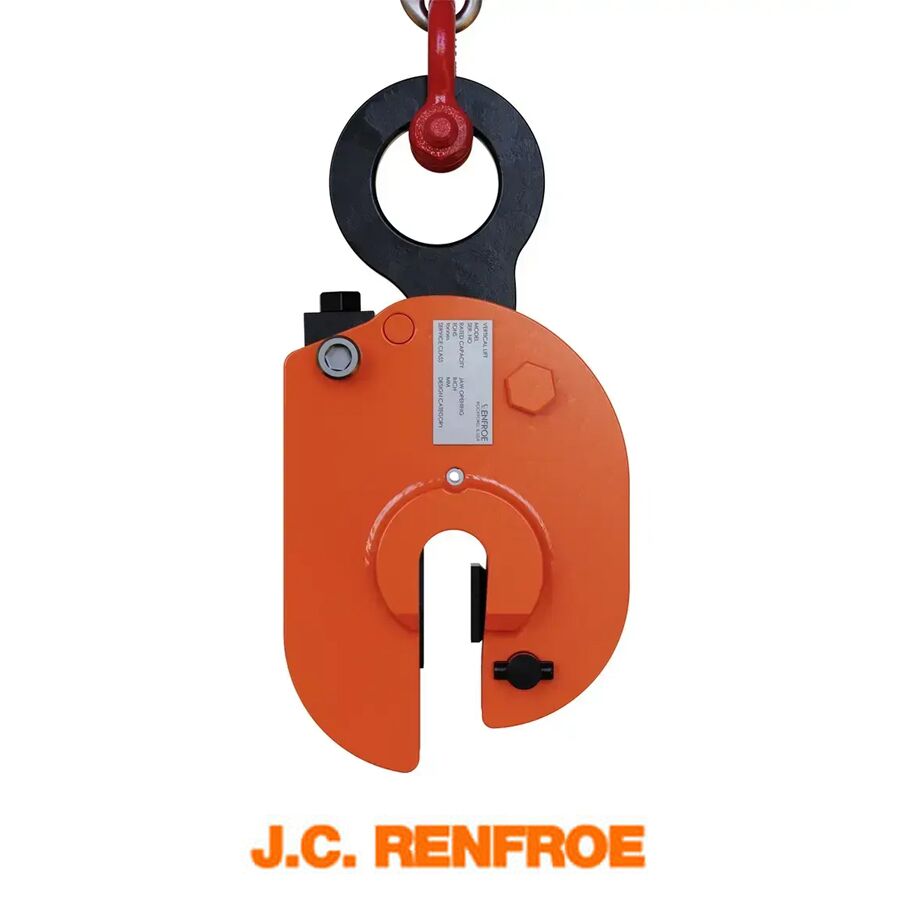

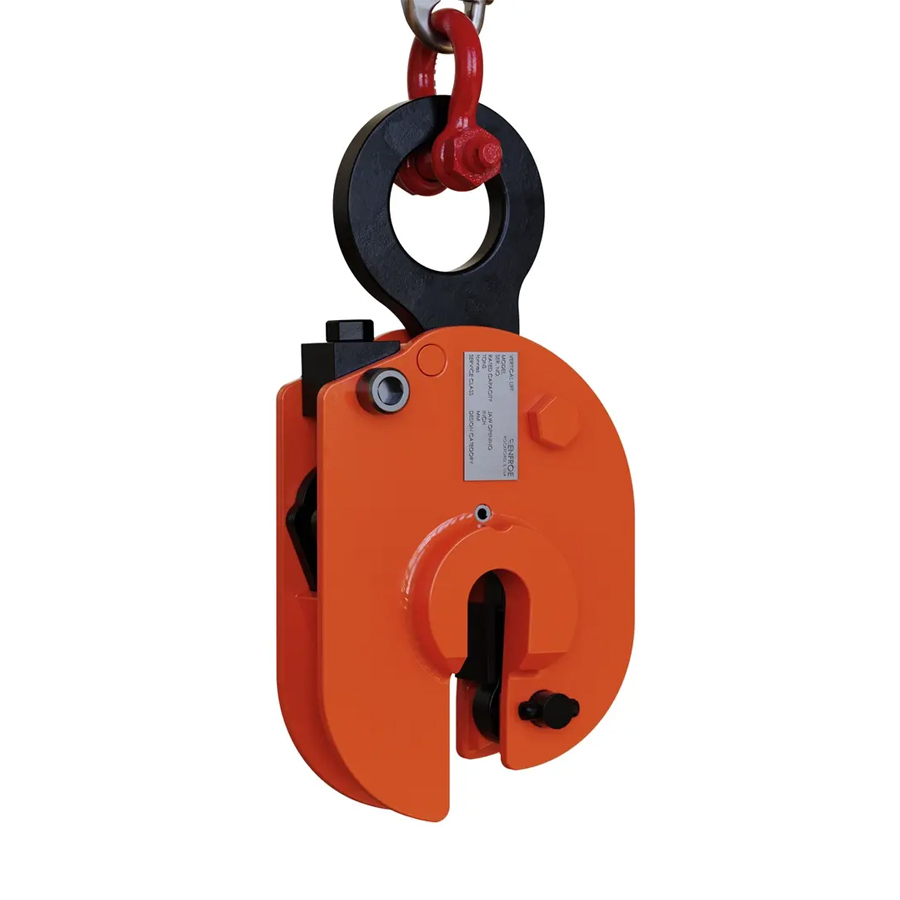

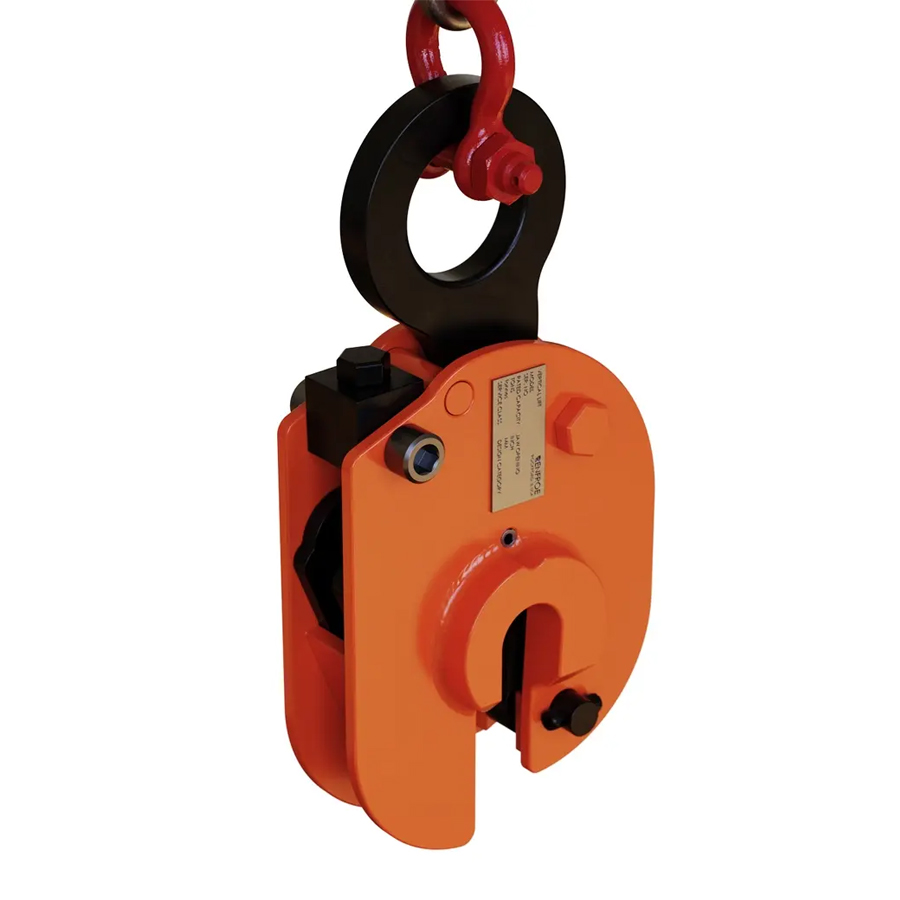

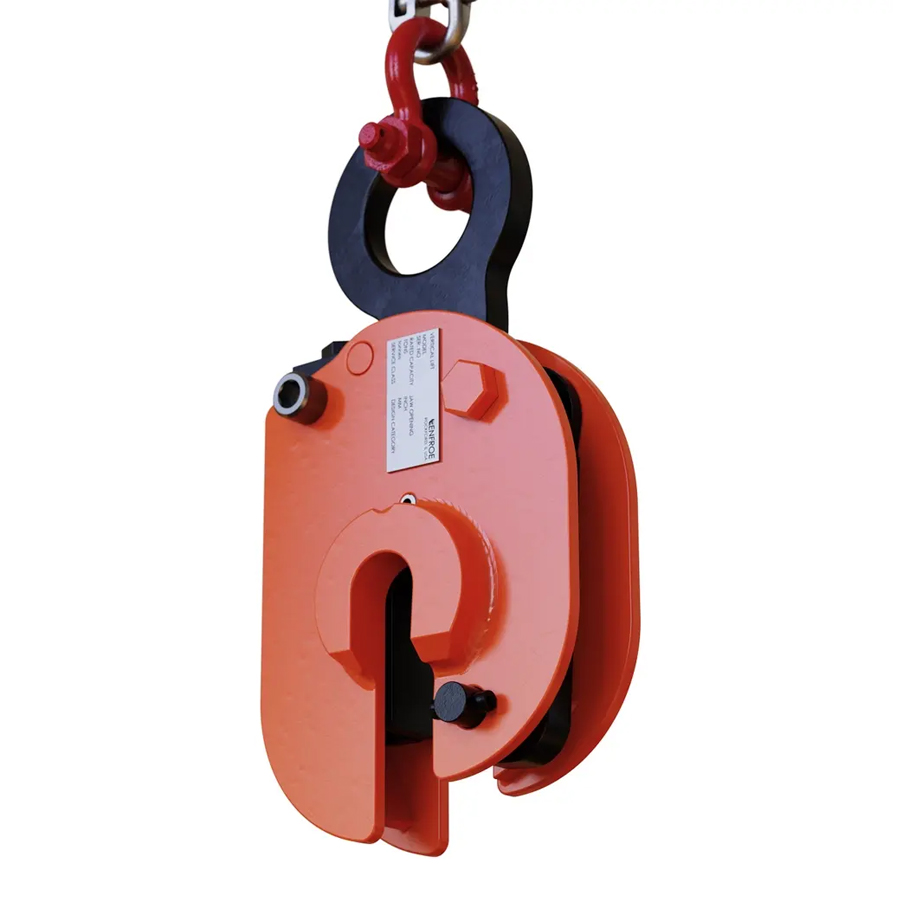

Model NM Locking, Screw Type

The Model NM clamp (non-marring) is manufactured with smooth gripping surfaces to prevent marring when gripping stainless steel, copper, aluminum and other polished metal plates. Due to the variety of conditions that may exist in handling these plates, it is recommended that these clamps be used in pairs and attached to a chain or wire rope sling, supported by a spreader beam. The Model NM is supplied with stainless steel gripping surfaces and is available with steel or bronze upon request. The Model NM is not intended for use in transportation of plates using mobile equipment where shocking of the load may occur.

Product Features

  • Turns plates from horizontal through the same 90 degree arc
  • Incorporates a Lock Open – Lock Closed feature for easy on & off clamp positioning
  • Recommended for use in pairs
  • Supplied with smooth gripping pads to prevent marring
  • Capable of gripping stainless steel, copper, aluminum and other polished metal plates

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

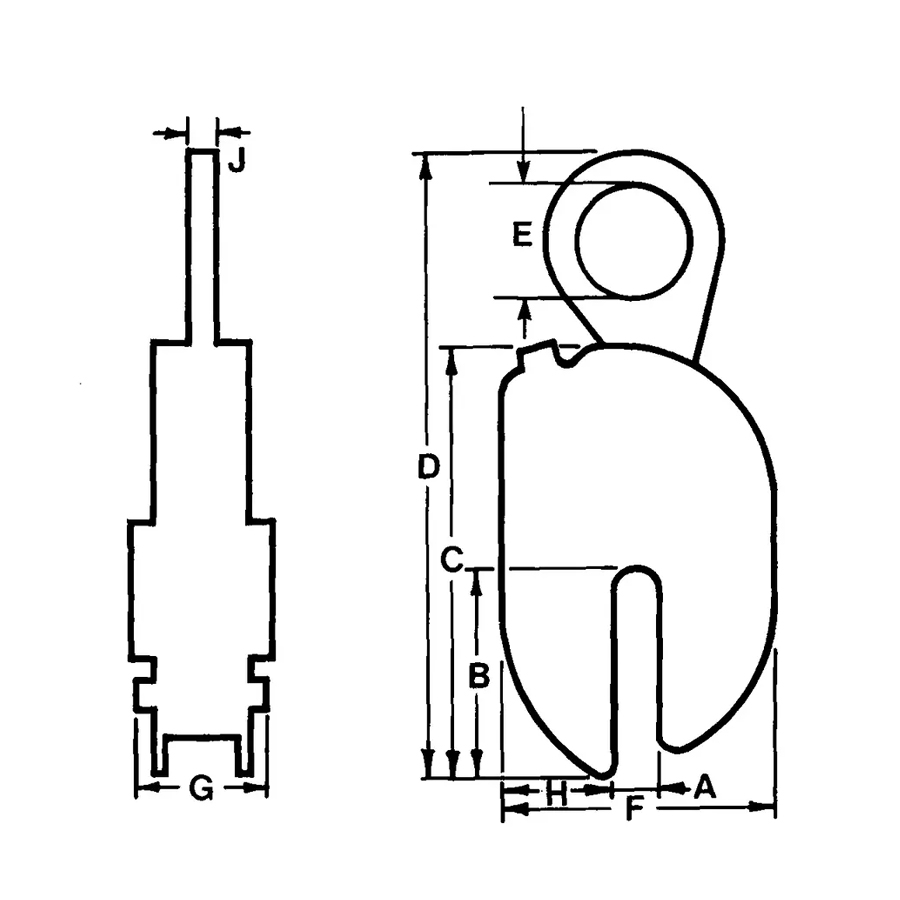

Model Number Capacity (tons) Shackle Hole Dia (in.) Weight (lbs.) Max Jaw Open (in.) Clamp Height (in.) Clamp Length (in.) Clamp Width (in.) Jaw Height (in.) Jaw Length (in.) Overall Clamp Length (in.) Shackle Thick (in.) In Stock Price
NM-01.00-A 1 2.375 17 0.75 5.875 9.375 3.125 2.375 4.5 15.375 0.625 ❌ $
NM-01.00-B 1 2.375 19 1.25 6.375 9.375 3.125 2.375 4.5 15.375 0.625 ❌ $
NM-01.00-C 1 2.375 21 1.75 6.875 9.375 3.125 2.375 4.5 15.375 0.625 ❌ $
NM-01.00-D 1 2.375 23 2.25 7.375 9.375 3.125 2.375 4.5 15.375 0.625 ❌ $
NM-02.00-A 2 2.625 23 1 6.75 10.0625 3.75 2.875 5.125 16 0.625 ❌ $
NM-02.00-B 2 2.625 27 1.5 7.25 10.0625 3.75 2.875 5.125 16 0.625 ❌ $
NM-02.00-C 2 2.625 28 2 7.75 10.0625 3.75 2.875 5.125 16 0.625 ❌ $
NM-02.00-D 2 2.625 30 2.5 8.25 10.0625 3.75 2.875 5.125 16 0.625 ❌ $
NM-02.00-E 2 2.625 33 3 8.75 10.0625 3.75 2.875 5.125 16 0.625 ❌ $
NM-04.00-A 4 2.9375 45 1.5 7.75 12.125 4.5 1 5.375 18.5625 2.9375 ❌ $
NM-04.00-B 4 2.9375 48 2.5 8.75 12.125 4.5 2.9375 5.375 18.5625 1 ❌ $
NM-04.00-C 4 2.9375 50 3 9.75 12.125 4.5 2.9375 5.375 18.5625 1 ❌ $
NM-04.00-D 4 2.9375 55 4.25 11 12.125 4.5 2.9375 5.375 18.5625 1 ❌ $
NM-08.00-A 8 3.875 193 3.25 15.375 20.25 6.375 5.875 11 27.75 2 ❌ $
NM-08.00-B 8 3.875 195 3.5 15.625 20.25 6.375 5.875 11 27.75 2 ❌ $
NM-08.00-C 8 3.875 210 4.5 16.625 20.25 6.375 5.875 11 27.75 2 ❌ $
NM-08.00-D 8 3.875 225 5.5 17.625 20.25 6.375 5.875 11 27.75 2 ❌ $
NM-12.00-A 12 3.875 200 4 16.125 20.25 7.875 5.875 11 27.75 2 ❌ $
NM-12.00-B 12 3.875 220 5.5 17.625 20.25 7.875 5.875 11 27.75 2 ❌ $
NM-12.00-C 12 3.875 240 6 18.125 20.25 7.875 5.875 11 27.75 2 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
