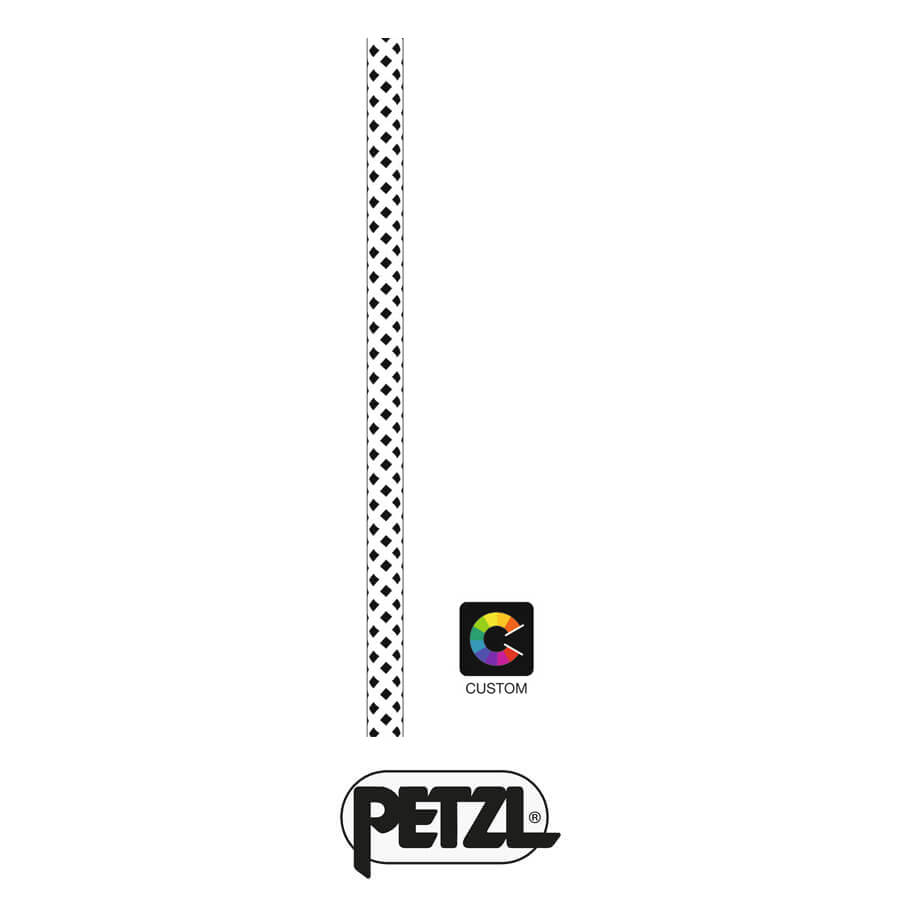

Petzl RAY 11 mm CUSTOM Static Kernmantle Rope

Petzl RAY 11 mm CUSTOM Static Kernmantle Rope

Customizable Static Kernmantle Rope for Work at Height and Technical Rescue

Petzl Custom can customize a RAY 11 mm rope. We offer the choice of color, length (up to 500 meters), and the option to add a manufactured sewn termination to one or both ends. The RAY 11 mm CUSTOM rope is packaged individually for a ready-to-go solution.


EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Description

  • Choice of rope color and length:
    – Available in four colors: white, yellow, black, or blue
    – Rope of a specified length can be ordered in one-meter increments, from 5 to 500 meters
  • Choice of rope end terminations:
    – Without termination
    – With manufactured sewn termination at one end (available only in North America)
    – With manufactured sewn termination at both ends (available only in North America); the second termination is a plastic sheath that can be used as a stop at the rope end
  • Choice of packaging:
    – Individual, in cardboard
    – Individual, in a red BUCKET bag; bag volume (15, 30, or 45 liters) is determined by the length of the rope
  • Certifications depend on choice of termination (more information in the Instructions for Use)

Specifications

  • Diameter: 11 mm
  • Material(s): Polyester
  • Certifications: NFPA 1983 Technical Use, ANSI Z359.15, ANSI Z359.15, CI 1801.
  • Weight per meter: 98 g
  • Strength tied with figure-eight knot: 17 kN
  • Strength with sewn termination: 30 kN
  • Construction: 32 carrier
  • Percentage of sheath: 39 %
  • Static elongation under 1,35 kN load: 2,2 %
  • Static elongation under 2,7 kN load: 3,2 %
  • Static elongation under 4,4 kN load: 4,2 %

References

References R100XY
Customizable product, available on request
Guarantee 3 years
Inner Pack Count 1

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
