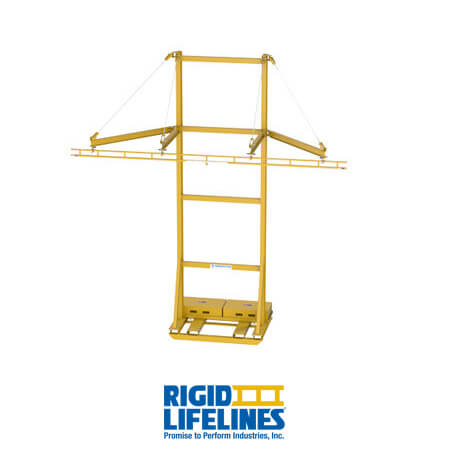

Rigid Lifelines® Griffin™ Anchor Track™ System

Rigid Lifelines® Griffin™ Anchor Track™ System
  • Custom heights, spans, and support structures
  • Single, dual, or multiple tracks for one, two, or multiple workers
  • Intermediate bumpers can be used to limit trolley travel between the factory-installed end stops for any reason
  • Any color paint, epoxy coatings, or galvanized finish
  • Mylar® lip seal for heavy dust or paint overspray applications

Wheeled Griffin options:

  • Everything above
  • Dual steer with two tow bars, one on each end of the system

EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

  • Skidded or wheeled base
  • Standard track lengths between 20 and 60 feet
  • Standard arm reach distances between eight and 14 feet
  • Standard trolley-hook height is 22 feet (custom distances are available)
  • Quick and simple field assembly with bolt-together components — no welding required
  • Enclosed track design decreases the possibility of dirt or dust build-up interfering with trolley travel
  • Anchor Trolley™ comes standard
  • Meets or exceeds OSHA and ANSI standards
  • The internally tapered track self-centers trolleys and end trucks, so rolling movement is smooth, quiet, and highly ergonomic

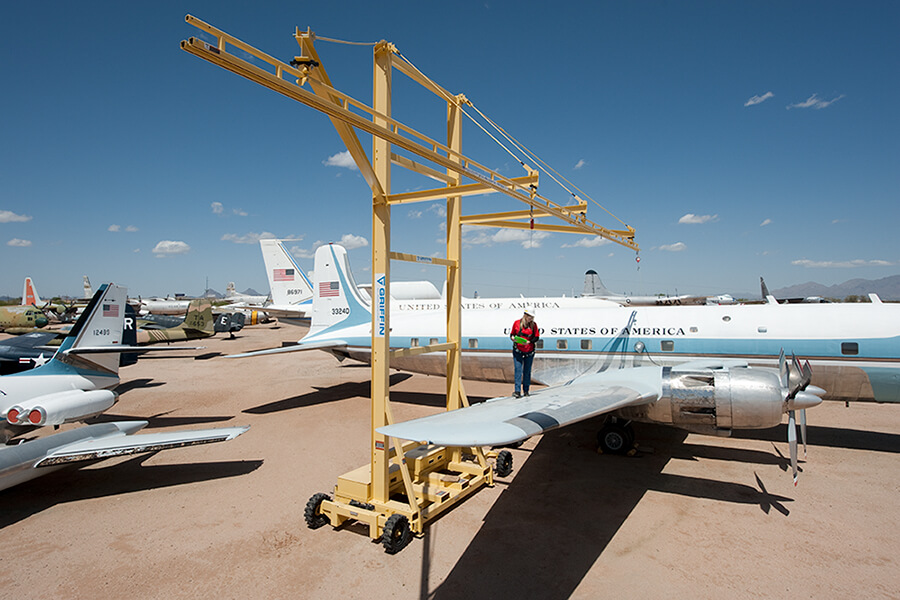

Wheeled Griffin comes with:

  • Everything above
  • Hard rubber tires
  • Steerable rolling chassis
  • Drawbar Eye Coupler (for Pintle hitch)
  • Bubble levels, leveling jacks, bottle jack, and bottle jack plate for system leveling

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
