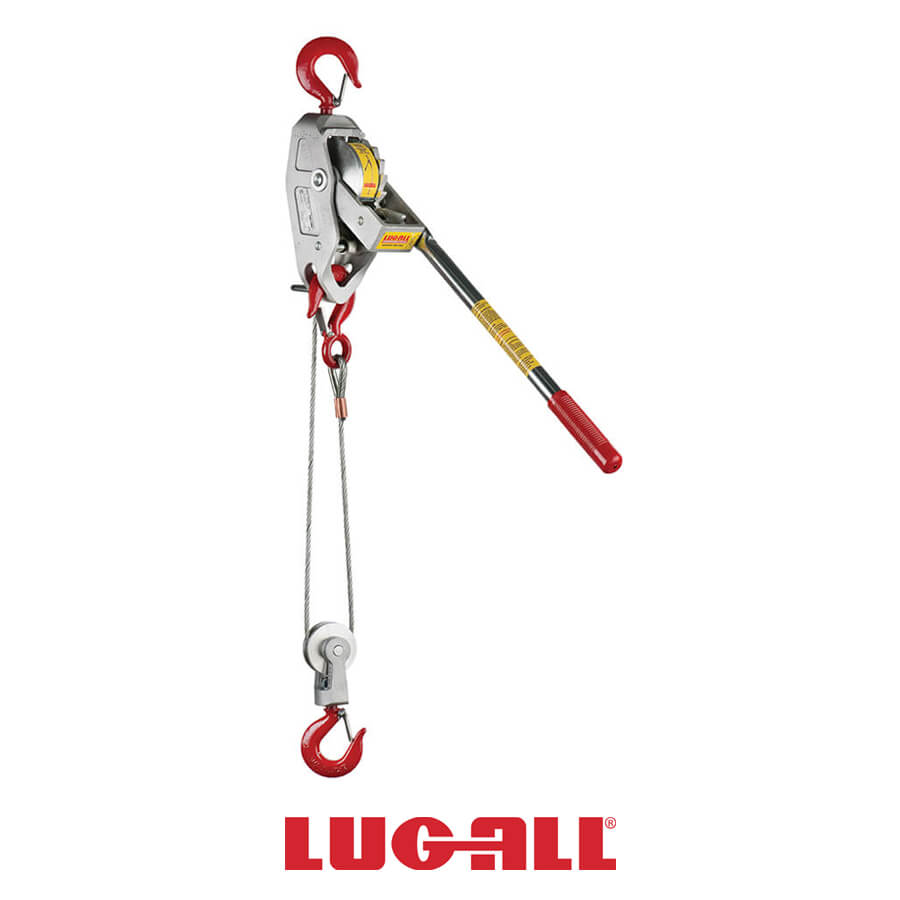

Lug-All Cable Strap Winch-Hoist

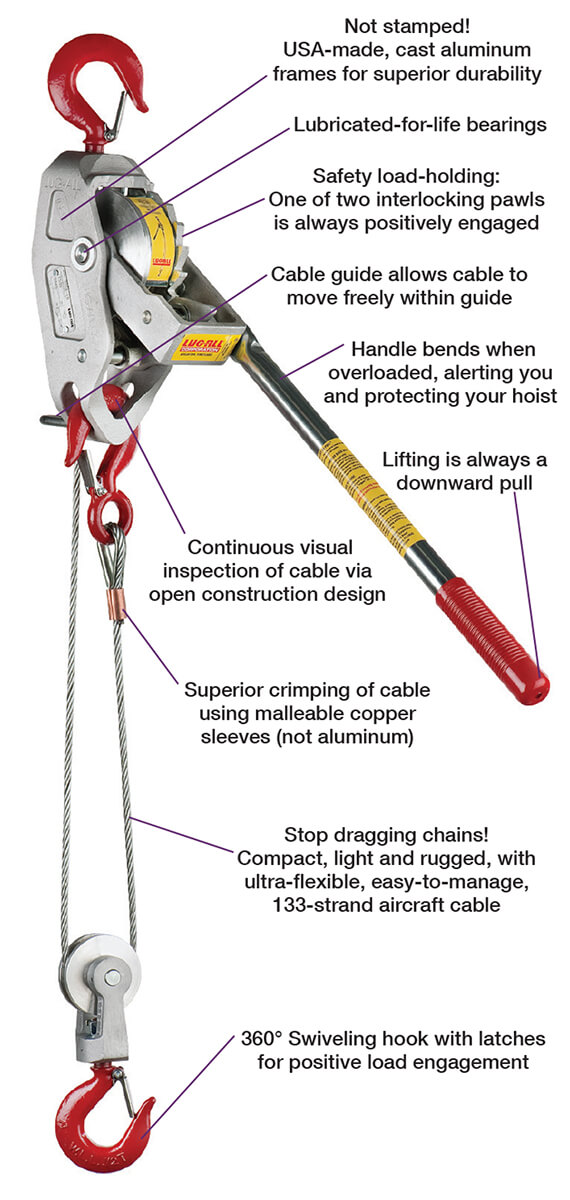

• Aluminum alloy frame.

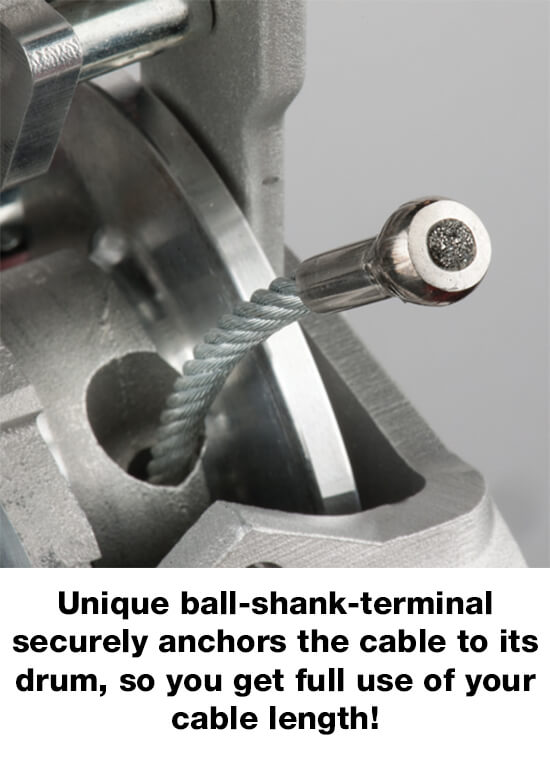

• Exclusive drum anchor – swaged ball shank terminal locks cable securely in drum and allows for full extension of cable. (Other brands use two set screws and 2-3 wraps of cable to hold cable to drum.)
• Cable end has hydraulically crimped copper sleeve.
• Proprietary reversible handle – always a downward pull, switches positions in seconds.
• Self-storing aircraft cable. No chains are hanging in the way or dragging on the ground. Much lighter than chain pullers.
• Optional marine-grade models – developed specifically for marine or other corrosive conditions, have anodized castings, stainless steel cables, and cadmium plated steel shafts.
• Drop forged steel hooks.

• Factory tested to 125% of rated capacity.
• At average of 20% to 50% overload, handles bend to alert operator to stop immediately.
• Reversible handle is designed to bend on severe overload to protect the user and the hoist. Replace the handle not the winch-hoist. Call to order replacement handle.
• 6000 Model – the shear pin design on two-position telescoping handle warns of overload.
• Quick Release – will not function when the cable is under load.
• The handle can be removed to prevent tampering with the hoist or load.
• One year guarantee against defects in workmanship and/or materials.

Small Frame – 1/2 to 1-1/2 ton capacity

OPTIONS
• Rapid Lowering – permits release four times faster. Look for “R” on chart after model number.
• Cable Return Crank – attaches directly to drum shaft for slack cable take up.
• Marine Grade – aluminum parts are anodized, steel shafts are cadmium plated. Stainless steel cables. Add suffix “M” to model number.
• Four hook options add to hoist flexibility.
