Lok-Down® Jaw-Jaw Ratchet Load Binder

Lok-Down® Jaw-Jaw Ratchet Load Binder

• Straight, heavy duty barrel

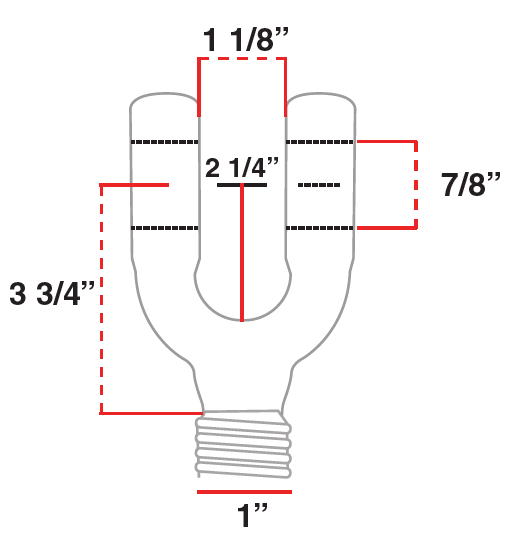

• Jaw-Jaw end fittings
• Fittings are yellow zinc plated
• Powder coated handle and barrel
• All load bearing fittings are forged
• Quenched and tempered
• Two piece handle


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
STOCK
NUMBER		 TAKEUP BARREL LENGTH HANDLE LENGTH SCREW DIAMETER BEARING TO BEARING (CLOSED-OPEN) WORKING LOAD LIMIT (LBS.) PROOF LOAD (LBS.) WEIGHT/ PIECE (LBS.)
LKD16000JJ 8” 10” 15.5” 1” 17” – 25″ 16,000 32,000 14

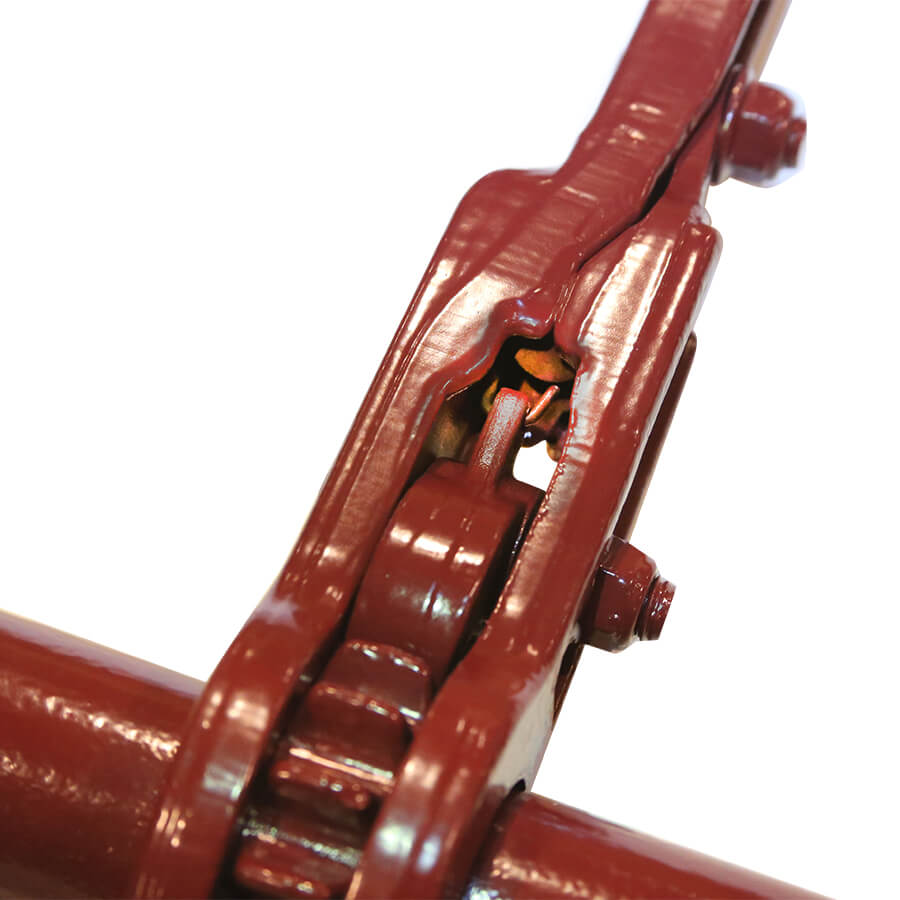

Close-up spring in two piece handle

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
