| STOCK NUMBER | TAKE-UP | BARREL LENGTH | WHEEL DIAMETER | SCREW DIAMETER | THROAT OPENING | BEARING TO BEARING (CLOSED-OPEN) | WORKING LOAD LIMIT (LBS.) |
PROOF LOAD LIMIT (LBS.) |
WEIGHT/ PIECE (LBS.) |
|---|---|---|---|---|---|---|---|---|---|

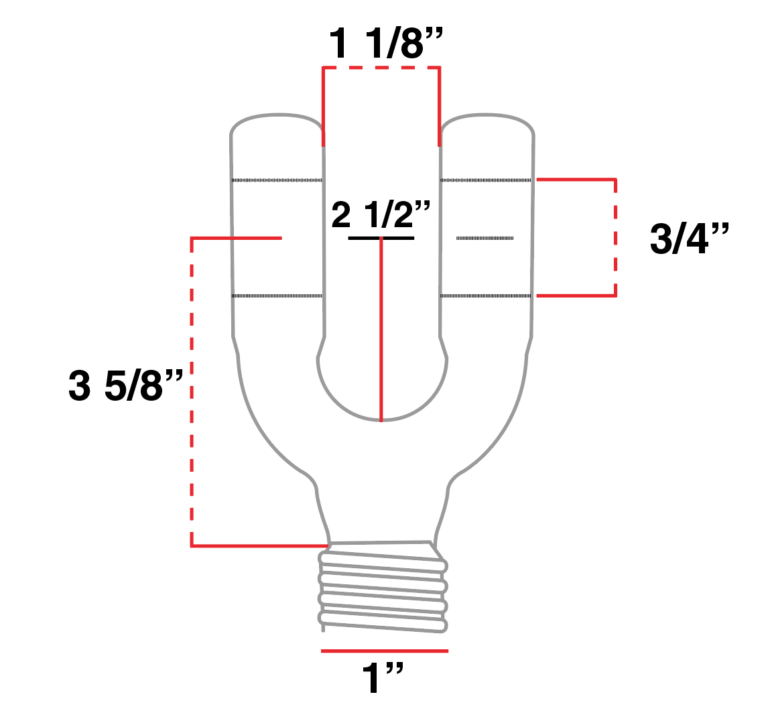

| BR12x1JJ8 | 10″ | 12″ | 8″ | 1″ | 1 1/8” | 18″ – 28″ | 13,000 | 26,000 | 17 |

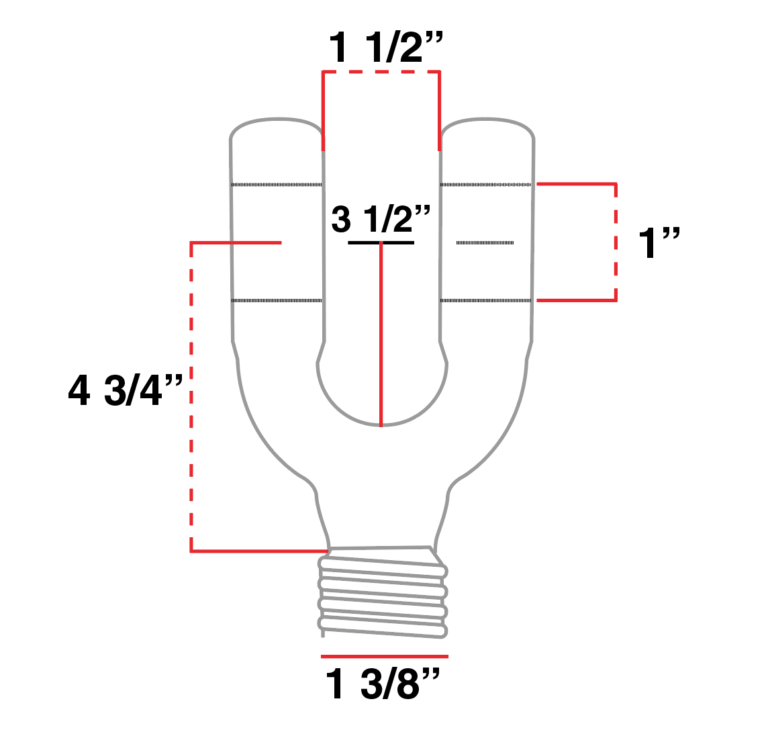

| BR12JJ8 | 10″ | 12″ | 8″ | 1 3/8″ | 1 1/2” | 22″ – 32″ | 28,000 | 56,000 | 24 |
| BR12JJ10 | 10″ | 12″ | 10″ | 1 3/8″ | 1 1/2” | 28″ – 38″ | 28,000 | 56,000 | 26 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
