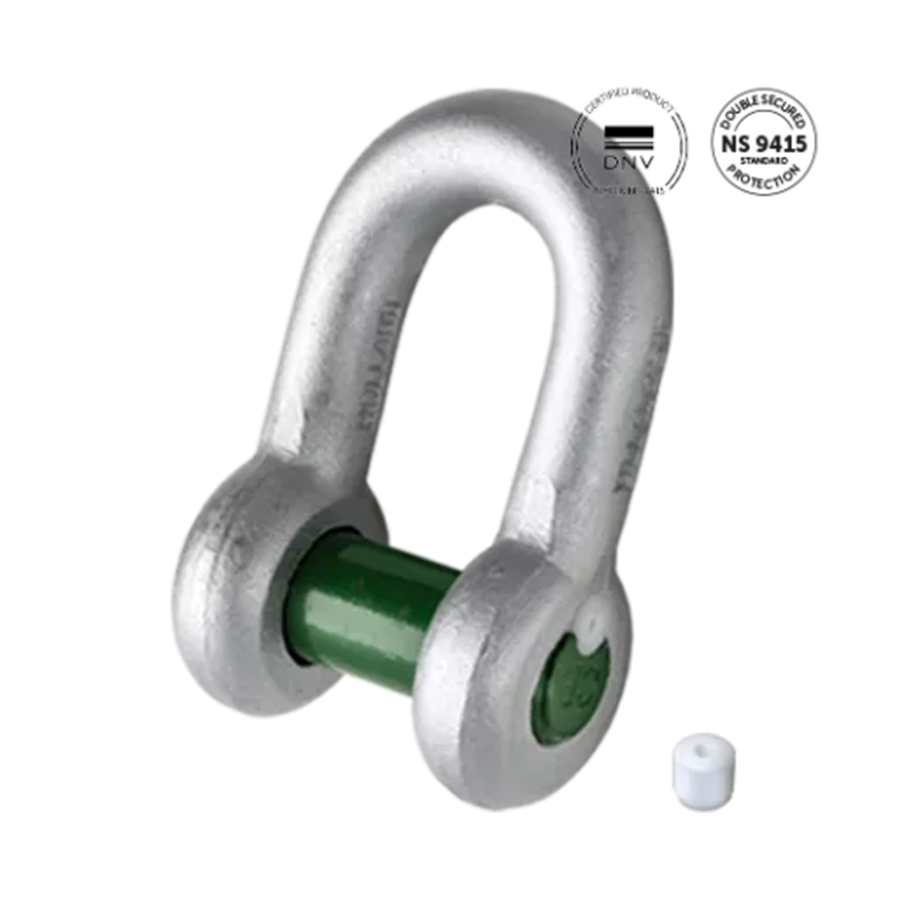

Green Pin® Dee Shackle NS9415 FP

Green Pin® Dee Shackle NS9415 FP

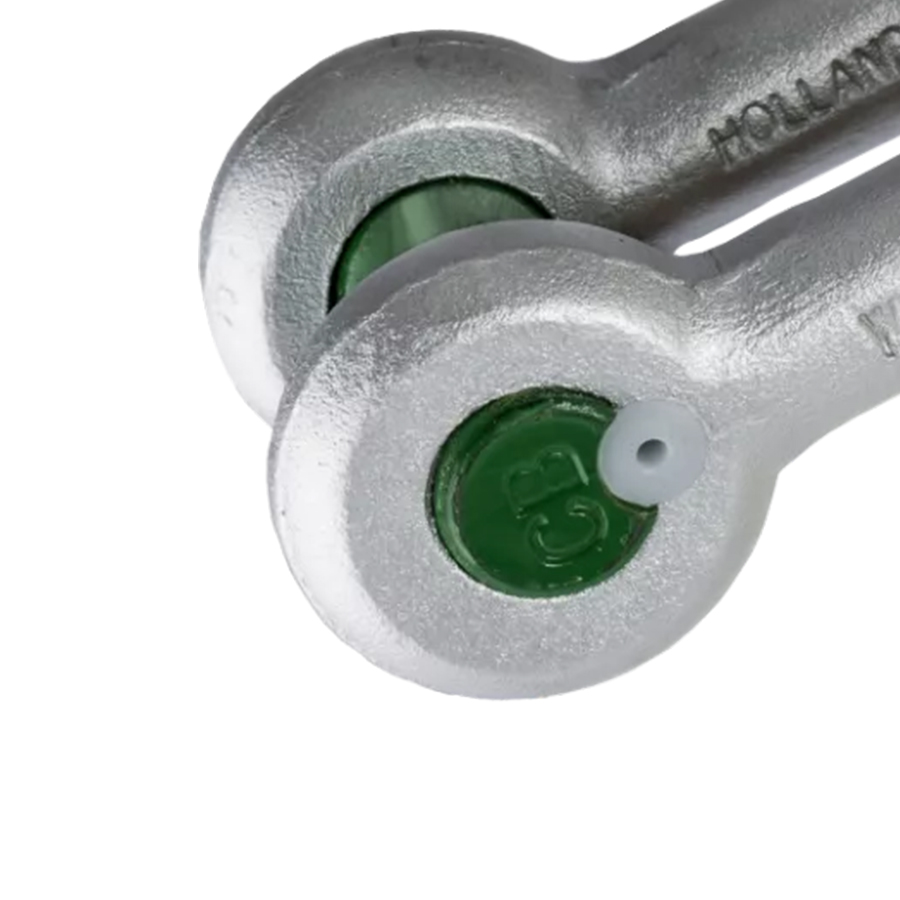

Dee shackle with square sunken hole screw pin (flush) and double safety plug

Product details

Productcode
G-4139
Material
bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor
MBL equals 7 x WLL
Finish
hot dipped galvanized
Temp. range
-40°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
CE
DNV NS 9415

Standard
NS 9415, EN 13889, ASME B30.26
Note
key for unscrewing the pin must be ordered separately

Pdf Article code working load limit (ton) diameter bow (mm) A diameter pin (mm) B
diameter eye (mm) C
width eye (mm) D
width inside (mm) E
length inside (mm) F
width bow (mm)G

length (mm) H length bolt (mm) I
width (mm) J
thickness nut (mm) K Net weight (KG)
GPGDVV13DS 2 13,5 16 34 13 22 43 81 51 11 8 8 0.29
GPGDVV16DS 3,25 16 19 40 16 27 51 97 63 11 8 8 0.60
GPGDVV19DS 4,75 19 22 46 19 31 59 112 74 11 8 8 0.98
GPGDVV22DS 6,5 22 25 52 22 36 73 134 85 13 8 8 1.26
GPGDVV25DS 8,5 25 28 59 25 43 85 154 99 13 8 8 2.14
Pdf Article code working load limit (ton) diameter bow (inch) A diameter pin (inch) B
diameter eye (inch) C
width eye (inch) D
width inside (inch) E
length inside (inch) F
width bow (inch)G

length (inch) H length bolt (inch) I
width (inch) J
thickness nut (inch) K Net weight (LBS)
GPGDVV13DS 2 1/2 5/8 1 11/32 1/2 7/8 1 11/16 3 3/16 2 7/16 5/16 5/16 0.65
GPGDVV16DS 3,25 5/8 3/4 1 9/16 5/8 1 1/16 2 3 13/16 2 15/32 7/16 5/16 5/16 1.33
GPGDVV19DS 4,75 3/4 7/8 1 13/16 3/4 1 7/32 2 5/16 4 13/32 2 29/32 7/16 5/16 5/16 2.15
GPGDVV22DS 6,5 7/8 1 2 1/16 7/8 1 13/32 2 7/8 5 9/32 3 11/32 1/2 5/16 5/16 2.77
GPGDVV25DS 8,5 1 1 1/8 2 5/16 31/32 1 11/16 3 11/32 6 1/16 3 29/32 1/2 5/16 5/16 4.72

The Green Pin® Dee Shackle NS9415 FP is a dee shackle with a square sunken hole screw pin (flush pin) which provides best-in-class quality, guaranteeing absolute security for your mooring system. The Green Pin® Dee Shackle NS9415 FP is an exemplary shackle in this product line. Its square, sunken hole screw pin combined with a safety plug makes it a double safety product that is easy to assemble and disassemble with the Green Pin® Sunken Hole Key. The shackle’s hot dipped galvanization ensures long-term durability as required by the NS 9415 standard. Testifying to its superior record when it comes to mooring safety, the 40.000 cycle fatigue rating is twice that required by NS 9415 and unparalleled in the market. What is more, the safety factor leads the industry with an MBL of seven times the WLL. The The Green Pin® Dee Shackle NS9415 FP is certified by DNV in compliancy with NYTEK regulation and NS 9415. It is suitable for one-leg mooring systems only, and is available in a range of working load limits from 2 up to 8.5 ton.

  • Double safety according to NS 9415
  • Industry-leading safety factor of 7 x WLL
  • Superior mooring security: 40.000 cycle fatigue rating
  • Hot dip galvanization assures long-term durability
  • Fast and easy (dis)assembly
