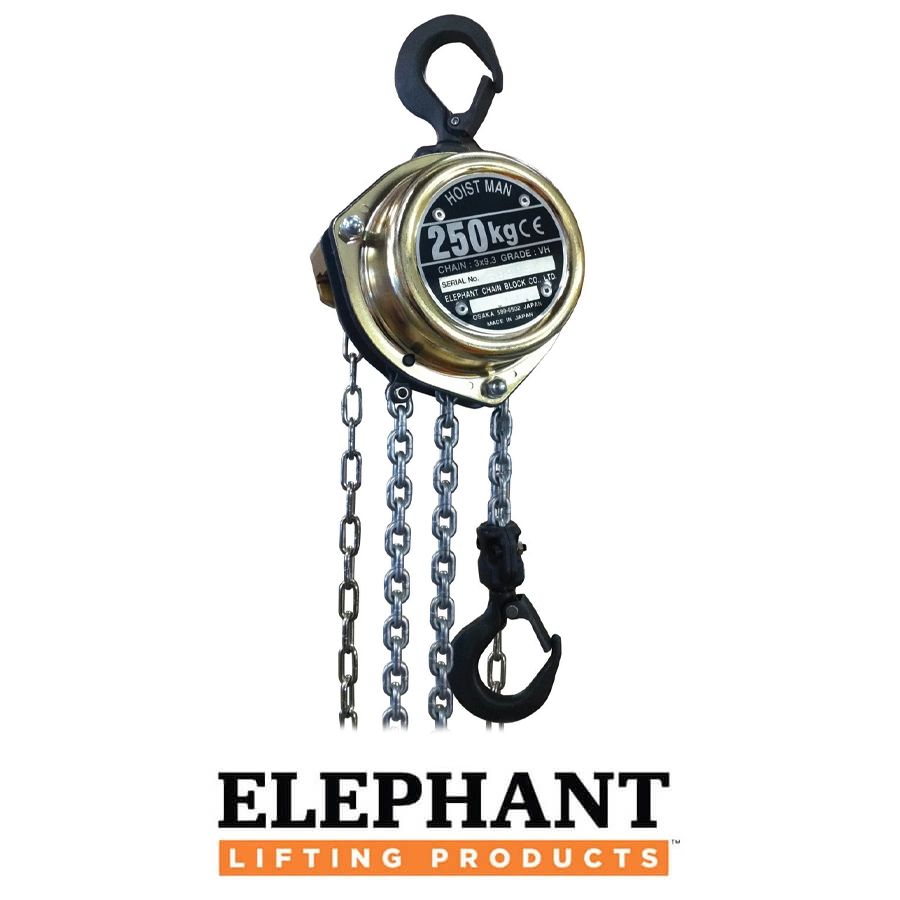

Elephant Hoistman Mini Chain Hoist

Elephant Hoistman Mini Chain Hoist
  • 150kg & 250kg
  • HM25 with 10’ Lift Weighs 6 lbs.
  • Safe and Rugged
  • Load Chain Weighs 0.2 lbs. per foot
  • Powder Coated Paint with Rust-Resistant Galvanized Load Chain and Stainless Steel Hand chain
  • Light and compact
  • Good for working in high places

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS



STOCK NUMBER CAPACITY (LBS) CAPACITY (KG) TEST LOAD (LBS) LIFT (FT) HEADROOM (IN) HAND EFFORT/FULL WORKING LOAD (LBF) DIA. X PITCH (MM) OF LOAD CHAIN GRADE OF LOAD CHAIN DIA. X PITCH (MM) OF HAND CHAIN LENGTH OF HAND CHAIN (FT) WEIGHT (LBS)
HM-150 330 150 496 10 8.6 368 3 +V 2.5 X 14 8.5 7
HM-250 550 250 826 10 8.6 432 3 +V 2.5 X 14 8.5 6

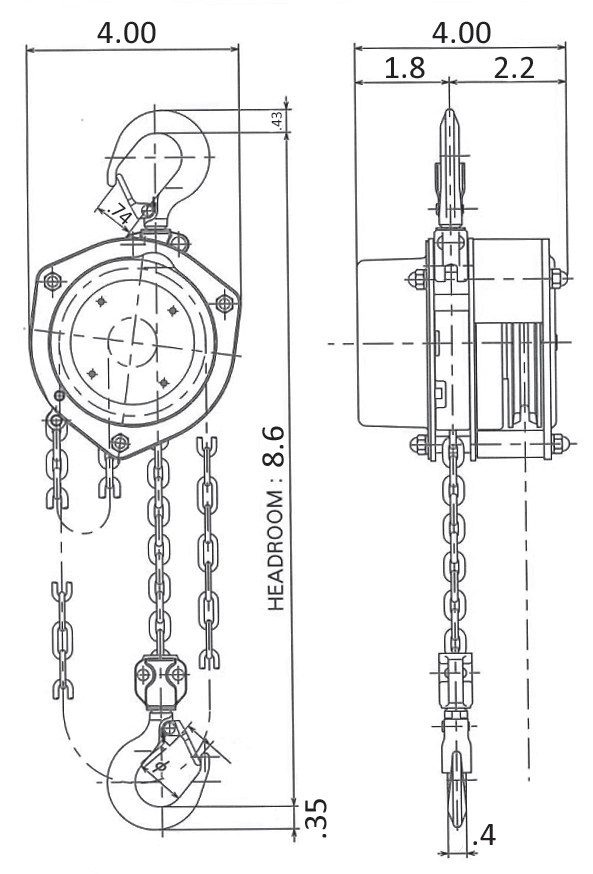

Above schematic measured in inches

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
