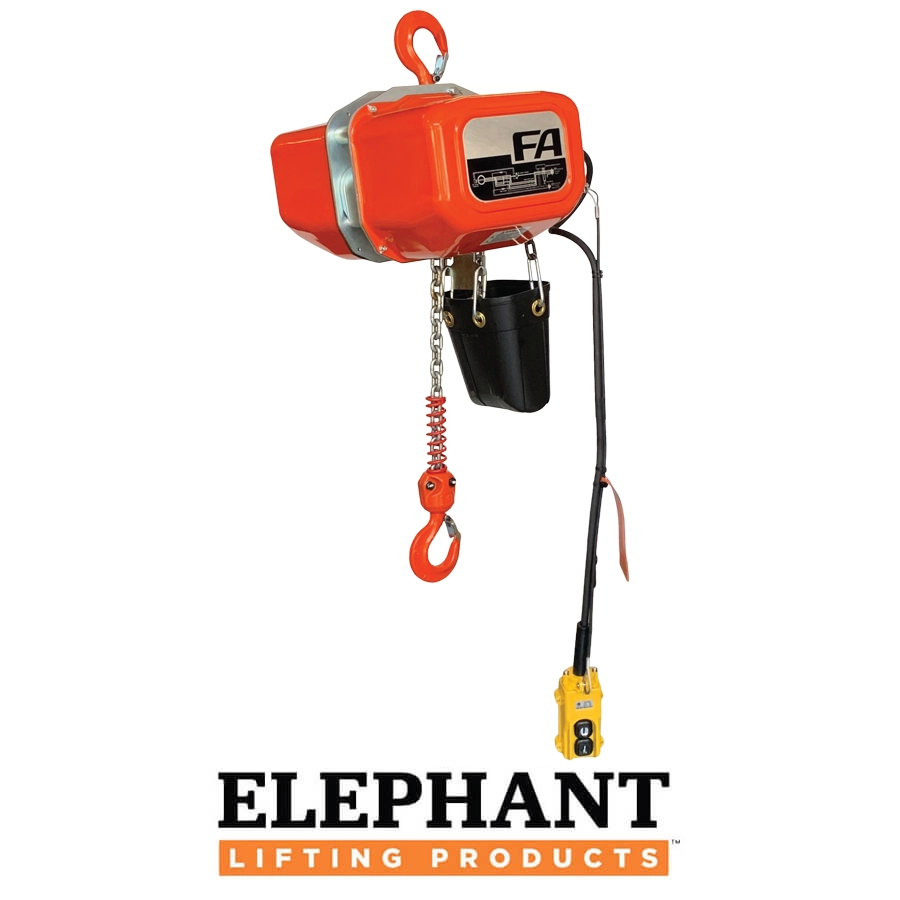

Elephant FA / FB Type Electric Chain Hoist

Elephant FA / FB Type Electric Chain Hoist
  • FA TYPE : 1 SPEED, 3 PHASE DUAL VOLTAGE
    FB TYPE: 2 SPEED, 3 PHASE SINGLE VOLTAGE

    • Tough, Heavy-Duty Motor
    • Reliable Electro-Magnetic DC Brake
    • Highly durable load chain manufactured in Japan by Elephant
    • Totally Enclosed Steel Plate Construction
    • Durable top and bottom hooks
    • Chain Bucket
    • Limit switch
    • Ratings JIS/ISO M4, FEM 1AM, ASME H3 Motor, IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
    • Temperature Range -10° to 40° C,  14° to 104° F
    • CSA Compliant Hoist available upon request, excludes motorized trolley

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Stock Number W.L.L. (lbs) W.L.L. (mt) Test Load (mt) Standard Lift (ft) Standard Push Button Cord Length (ft) Load Chain Dia. X Number of Falls Lifting Motor Output (H.P.), (FB) High:Low Speed Lifting Spd. (ft/min) (FB) High:Low Speed Min. Distance H (in) Net Weight (lbs)
50Hz 60Hz
FA-0.5 1,100 0.5 0.625 10 8 6.3 X 1 1.22 23 27.5 21.85 95
FA-1 2,200 1 1.25 10 8 7.1 X 1 2.18 20 24.5 23.23 123
FA-2 4,400 2 2.5 10 8 7.1 X 2 2.18 10 12.5 29.33 141
FA-3 6,600 3 3.75 10 8 7.1 X 3 2.18 7 8 33.07 183
FA-5 11,000 5 6.25 10 8 7.1 X 5 2.18 4.1 4.8 38.2 246
FB-0.5 1,100 0.5 0.625 10 8 6.3 X 1 1.22 : 0.34 23 / 6 27.5 / 7 21.85 97
FB-1 2,200 1 1.25 10 8 7.1 X 1 2.18 : 0.54 21 / 5 24.6 / 6 23.23 126
FB-2 4,400 2 2.5 10 8 7.1 X 2 2.18 : 0.54 10 / 1.6 12.5 / 3 29.33 143
FB-3 6,600 3 3.75 10 8 7.1 X 3 2.18 : 0.54 7 / 1.6 8 / 2 33.07 185
FB-5 11,000 5 6.25 10 8 7.1 X 5 2.18 : 0.54 4.1 4.8/1.2 38.2 246

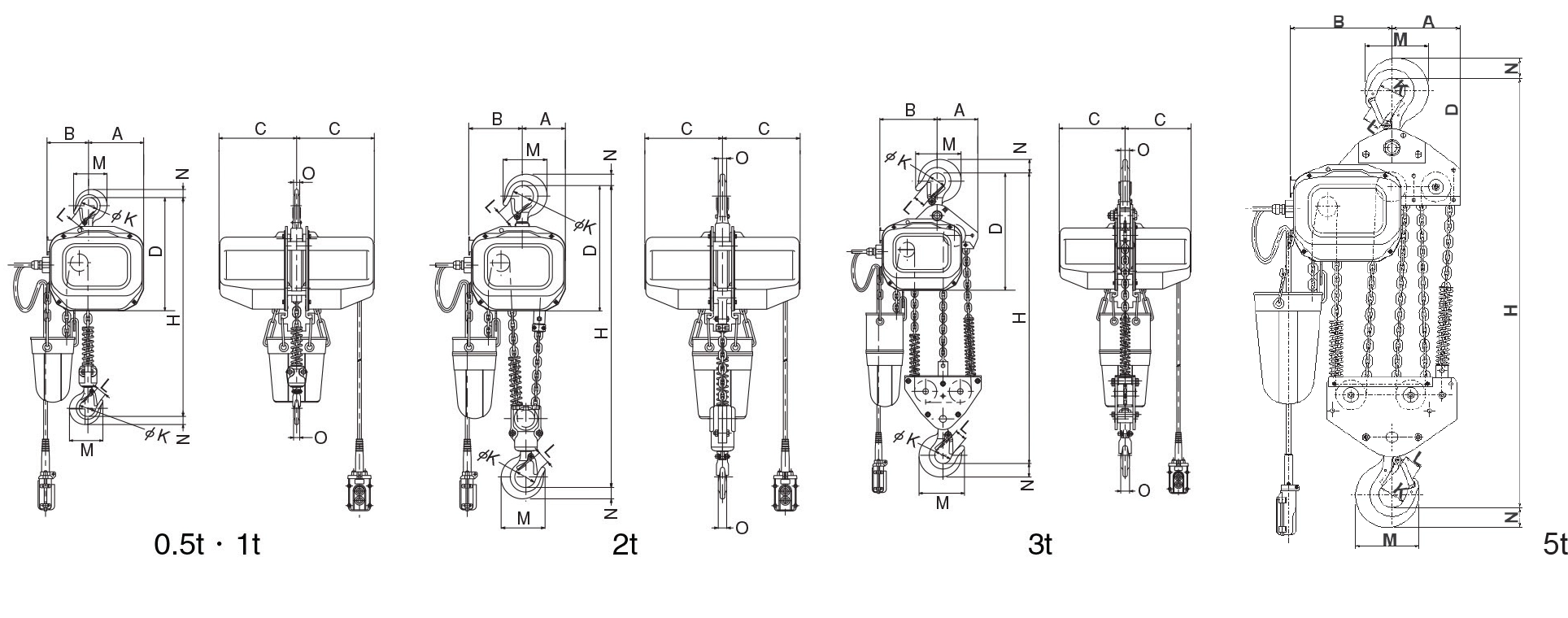

Dimensions

W.L.L. (lbs) W.L.L. (mt) A B C D K L M N O
1,100 0.5 6.34 4.88 8.82 12.46 1.69 1.04 3.31 0.75 0.55
2,200 1 6.69 5.04 9.41 13.74 1.97 1.22 4.09 0.98 0.75
4,400 2 5.24 6.5 9.41 15.22 2.56 1.5 5.33 1.38 1.02
6,600 3 5.83 8.19 9.41 16.81 2.36 1.69 6.5 1.93 1.26
11,000 5 7.2 10.74 9.4 19.2 2.76 1.85 6.7 2.08 1.38

Stock Number W.L.L. (lbs) W.L.L. (mt) Standard Lift (ft) Lifting Speed (ft/min) (FB) High:Low Speed Traversing Motor Output (H.P.) Traversing Speed (ft/min) Min. Distance H (in) Hook : Lug Traversing I-beam Width Trolley Min. Radius (in) Net Weight (lbs)
50Hz 60Hz 50Hz/60Hz 50Hz/60Hz
FAM-0.5 1,100 0.5 10 23 27.5 0.54 65 / 78 MAF type 32 /39 MAS type 27.36 (23.62) 2.95-5.91 43.31 163
FAM-1 2,200 1 10 20 24.5 28.74 (24.61) 43.31 192
FAM-2 4,400 2 10 10 12.5 35.83 (29.53) 3.94-5.91 59.06 229
FAM-3 6,600 3 10 7 8 40.16 (33.86) 59.06 324
FAM-5 11,000 5 10 * 4.8 1.02 38.8 4.92-6.89 78.74 428
FBM-0.5 1,100 0.5 10 23 / 6 27.5 / 7 0.54 65 / 78 MAF type 32 / 20 MAS type 27.36 (23.62) 2.95-5.91 43.31 165
FBM-1 2,200 1 10 21 / 5 24.6 / 6 28.74 (24.61) 43.31 194
FBM-2 4,400 2 10 10 / 1.6 12.5 / 3 35.83 (29.53) 3.94-5.91 59.06 232
FBM-3 6,600 3 10 7 / 1.6 8 / 2 40.16 (33.86) 59.06 326
FBM-5 11,000 5 10 * 4.8 / 1.2 1.02 38.8 4.92-6.89 78.74 430

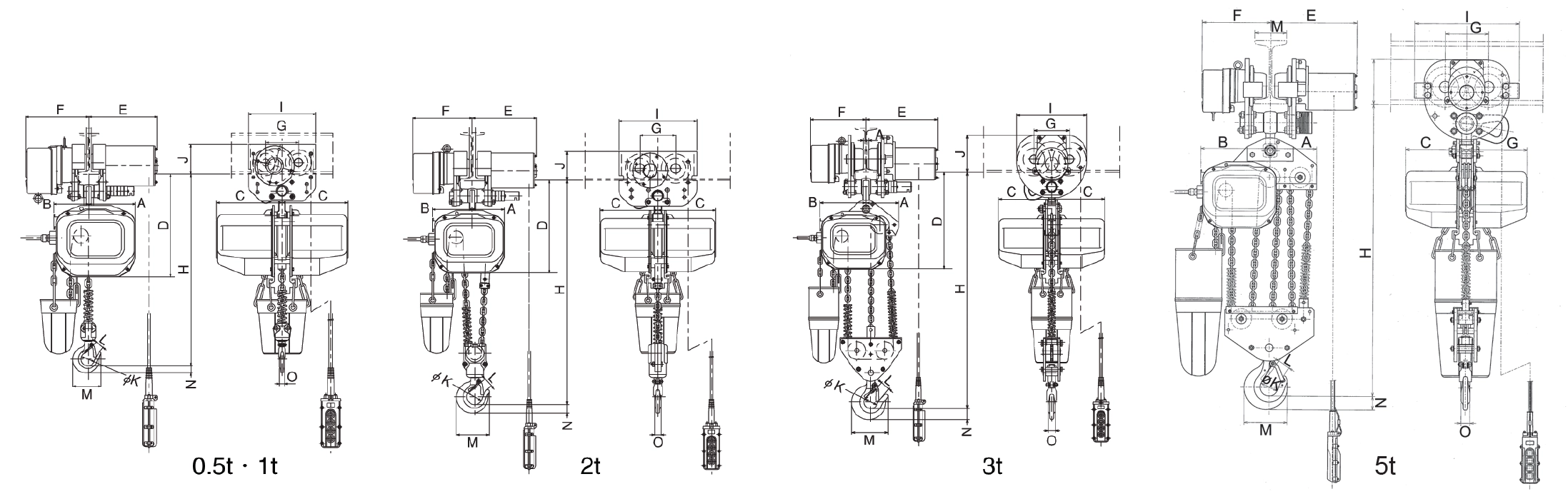

Dimensions

W.L.L (lbs) W.L.L (mt) A B C *D *E *F G I *J K L M N O P (dia. of wheel)
1,100 0.5 6.34 4.88 8.82 17.97 9.88 (10.94) 8.6 4.72 9.69 4.92 1.69 1.04 3.31 0.75 0.55 2.68
2,200 1 6.69 5.04 9.41 19.25 9.88 (10.94) 8.6 4.72 9.69 4.92 1.97 1.22 4.06 0.98 0.75 2.68
4,400 2 5.24 6.5 9.41 21.65 10.51 (11.57) 9.72 5.83 12.76 5.39 2.56 1.5 5.33 1.38 1.02 3.29
6,600 3 5.83 8.19 9.41 22.91 12.76 (15.75) 9.92 6.3 12.44 7.13 2.36 1.69 6.5 1.93 1.26 3.86
11,000 5 7.2 10.74 9.4 19.9 16.5 10.62 6.7 13.2 7.44 2.76 1.77 6.7 2.08 1.38 3.9

*Contact the Factory for Additional Information

Stock Number W.L.L. (lbs) W.L.L. (mt) Standard Lift (ft) Lifting Speed (ft/min) (FB) High:Low Speed Traversing Motor Output (H.P.) Traversing Speed (ft/min) Min. Distance H (in) Hook : Lug Traversing I-beam Width Trolley Min. Radius (in) Net Weight (lbs)
50Hz 60Hz 50Hz 50Hz
FAMB-0.5 1,100 0.5 10 23 27.5 0.54 [16] [65] MB type [19] [78] MB type 27.36 (23.62) 2.95-5.91 43.31 163
FAMB-1 2,200 1 10 20 24.5 28.74 (24.61) 43.31 192
FAMB-2 4,400 2 10 10 12.5 35.83 (29.53) 3.94-5.91 59.06 229
FAMB-3 6,600 3 10 7 8 40.16 (33.86) 59.06 324
FAMB-5 11,000 5 10 * 4.8 1.02 38.8 4.92-6.89 78.74 433
FBMB-0.5 1,100 0.5 10 23 / 6 27.5 / 7 1.54 [16] [65] MB type [19] [78] MB type 27.36 (23.62) 2.95-5.91 43.31 165
FBMB-1 2,200 1 10 21 / 5 24.6 / 6 28.74 (24.61) 43.31 194
FBMB-2 4,400 2 10 10 / 1.6 12.5 / 3 35.83 (29.53) 3.94-5.91 59.06 232
FBMB-3 6,600 3 10 7 / 1.6 8 / 2 40.16 (33.86) 59.06 326
FBMB-5 11,000 5 10 * 4.8 / 1.2 1.02 38.8 4.92-6.89 78.74 438

Dimensions

W.L.L (lbs) W.L.L (mt) A B C *D *E *F G I *J K L M N O P (dia. of wheel)
1,100 0.5 6.34 4.88 8.82 17.97 9.88 (10.94) 8.6 4.72 9.69 4.92 1.69 1.04 3.31 0.75 0.55 2.68
2,200 1 6.69 5.04 9.41 19.25 9.88 (10.94) 8.6 4.72 9.69 4.92 1.97 1.22 4.06 0.98 0.75 2.68
4,400 2 5.24 6.5 9.41 21.65 10.51 (11.57) 9.72 5.83 12.76 5.39 2.56 1.5 5.33 1.38 1.02 3.29
6,600 3 5.83 8.19 9.41 22.91 12.76 (15.75) 9.92 6.3 12.44 7.13 2.36 1.69 6.5 1.93 1.26 3.86
11,000 5 7.2 10.74 9.4 19.9 16.5 10.62 6.7 13.2 7.44 2.76 1.77 6.7 2.08 1.38 3.9

*Contact the Factory for Additional Information
