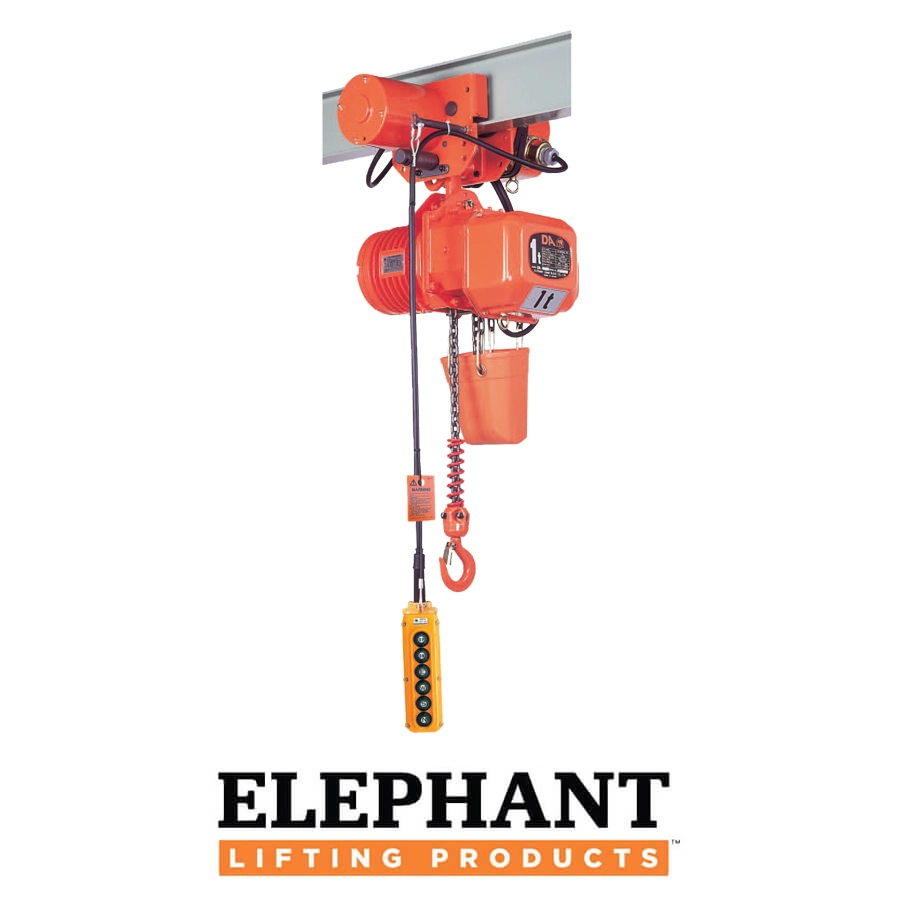

Elephant DA / DB Type Electric Chain Hoist

Elephant DA / DB Type Electric Chain Hoist
  • DA TYPE : 1 SPEED, 3 PHASE SINGLE VOLTAGE
    DB TYPE: 2 SPEED, 3 PHASE SINGLE VOLTAGE

    • An efficient motor that offers high lift speeds
    • Quiet operation with a sealed protective body against dust
    • Solid steel side plates for a rugged heavy duty construction
    • Highly durable load chain
    • Safe DOUBLE BRAKE design
    • DC brake and motor with low power consumption
    • A safer chain guide with our unique design
    • Reliable double-action limit switch
    • Negative phase contactor and a highly efficient magnetic contact with a mechanical & electrical interlock
    • Motor frame
    • Durable chain container
    • Pendant control switch is set at 24v for safe operation
    • Push-push button style pendant for the DB models
    • Top and bottom hooks with safety latch
    • Ratings JIS / ISO M5, FEM 2M, ASME H3 Motor, IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
    • Temperature range -20° to 40° C,  -4° to 104° F

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Stock Number W.L.L. (lbs) W.L.L. (mt) Test Load (mt) Standard Lift (FT) Load Chain Dia (mm) X Number of Falls Lifting Motor Output (H.P.) (DB) High:Low Speed Lifting Speed (ft/min) (DB) High:Low Speed Minimum Distance H (in) Ampere (A) Net Wt. (lbs) 10′:20′
50Hz 60Hz
DA-0.25 550 0.25 0.313 10 5.6 X 1 0.68 26 31 20.4 2.5 112 : 116
DA-0.5 1,100 0.5 0.625 10 6.3 X 1 1.22 24 28 20.8 4.5 123 : 130
DA-1W 2,200 1 1.25 10 6.3 X 2 1.22-0.41 12 14 27.7 4.5 139 : 152
DA-1S 2,200 1 1.25 10 7.1 X 1 2.31 22 27 23 8.7 158 : 168
DA-1.5 3,500 1.5 1.88 10 9.5 X 1 4.62 29 34 28.7 15.3 265 : 280
DA-2W 4,400 2 2.5 10 7.1 X 2 2.31 11 13 31 8.7 185 : 201
DA-2S 4,400 2 2.5 10 11.2 X 1 4.62 23 27 28.7 15.3 273 : 293
DA-2.5 5,500 2.5 3.13 10 11.2 X 1 4.62 18 21 28.7 15.3 282
DA-3 6,600 3 3.75 10 9.5 X 2 4.62 14 17 37 15.3 320
DA-5 11,000 5 6.25 10 11.2 X 2 4.62 9 11 40.5 15.3 359
DA-10 22,000 10 12.5 10 11.2 X 4 4.62 X 2 9 10 54.7 15.3 873
DB-0.25 550 0.25 0.313 10 5.6 X 1 0.68 : 0.23 26 : 9 31 : 10 20.4 2.6 123 : 130
DB-0.5 1,100 0.5 0.625 10 6.3 X 1 1.22 : 0.41 24 : 8 28 : 9 20.8 4.7 137 : 146
DB-1W 2,200 1 1.25 10 6.3 X 2 1.22 : 0.41 12 : 4 14 : 5 27.7 4.7 152 : 168
DB-1S 2,200 1 1.25 10 7.1 X 1 2.31 : 0.77 22 : 7 27 : 9 23 9.2 174 : 185
DB-1.5 3,500 1.5 1.88 10 9.5 X 1 4.62 : 1.55 29 : 10 34 : 11 28.7 16 300 : 317
DB-2W 4,400 2 2.5 10 7.1 X 2 2.31 : 0.77 11 : 4 13 : 4 31 9.2 203 : 220
DB-2S 4,400 2 2.25 10 11.2 X 1 4.62 : 1.55 23 : 8 27 : 9 28.7 16 311 : 331
DB-2.5 5,500 2.5 3.13 10 11.2 X 1 4.62 : 1.55 18 : 6 21 : 7 28.7 16 317
DB-3 6,600 3 3.75 10 9.5 X 2 4.62 : 1.55 14 : 5 17 : 6 37 16 357
DB-5 11,000 5 6.25 10 11.2 X 2 4.62 : 1.55 9 : 3 11 : 3 40.5 16 394

*Current Ampere Depends on the Voltage and Length of Power Cord
*The Length of Power Cord 4Core Cable is 16′
*Standard Push Button Cord is 2′ Less than Lift
*If You Require 6 Button Pendant Control in Place of 4 Button, a “C” Should be Added to the End of the Model Name

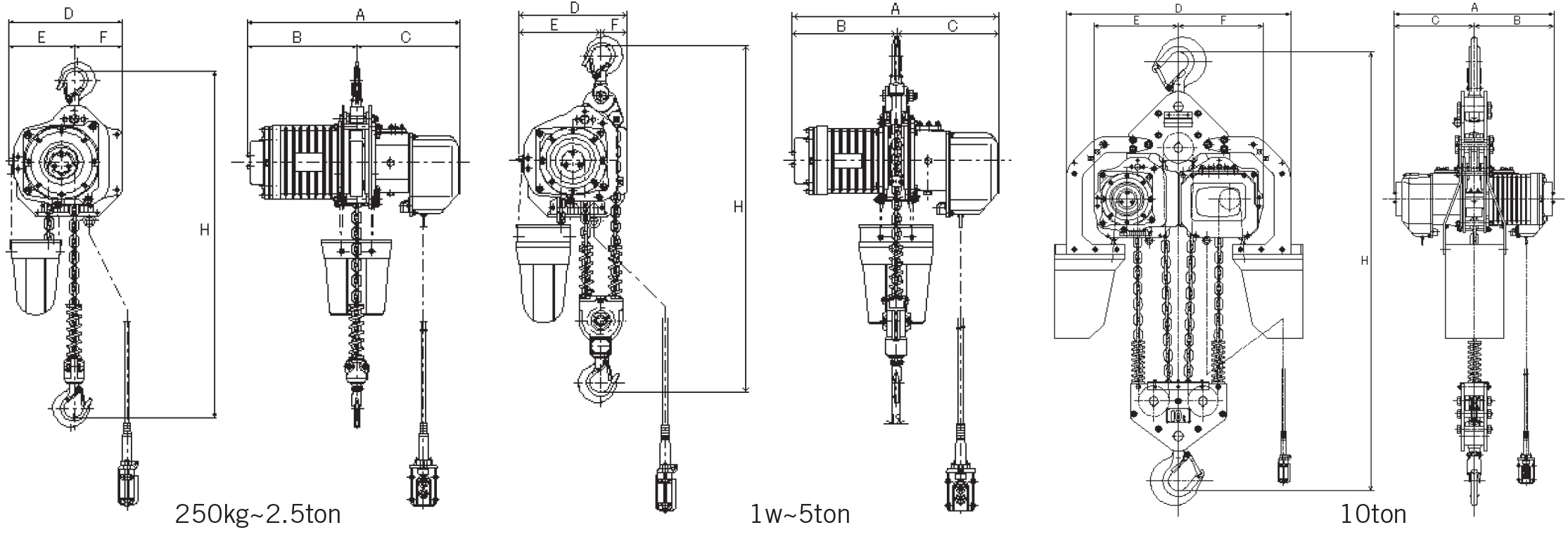

Stock Number A B C D E F
DA / DB-0.25 20.7 / 22.1 10.5 / 10.8 10.2 / 11.3 10.8 6.6 4.2
DA / DB-0.5 20.7 / 23.2 10.5 / 11.9 10.2 / 11.3 10.8 6.6 4.2
DA / DB-1W 20.7 / 23.2 10.5 / 11.9 10.2 / 11.3 10.8 8.1 2.6
DA / DB-1S 22.2 / 24.3 11.4 / 12.6 10.7 / 11.7 11.8 6.8 5
DA / DB-1.5 25.7 / 28.2 13.4 / 14.6 12.3 / 13.5 14.6 7.8 6.8
DA / DB-2W 22.2 / 24.3 11.4 / 12.6 10.7 / 11.7 11.8 8.6 3.2
DA / DB-2S 25.7 / 28.2 13.4 / 14.6 12.3 / 13.5 14.6 7.8 6.8
DA / DB-2.5 25.7 / 28.2 13.4 / 14.6 12.3 / 13.5 14.6 7.8 6.8
DA / DB-3 25.7 / 28.2 13.4 / 14.6 12.3 / 13.5 14.6 10.1 4.4
DA / DB-5 25.7 / 28.2 13.4 / 14.6 12.3 / 13.5 14.7 10.7 4.02
DA-10 26.9 13.4 13.4 37.8 10.7 *

*The Dimensions D and E Depends on the Lift
*For Top and Bottom Hook Specifications See Page 49
*Specifications and Dimensions are Subject to Change Without Notice

Stock Number W.L.L. (lbs) W.L.L. (mt) Test Load (mt) Standard Lift (FT) Lifting Motor Output (H.P.) (DB) High:Low Speed Traversing Motorized Trolley Motor Output (H.P.) Lifting Speed (ft/min) (DB) High:Low Speed Traversing Speed (ft/min) Minimum Distance H (in) Traversing Motorized Trolley Beam Range (in) Trolley Min. Radius (in) Net Wt. (lbs)
50Hz 60Hz High Speed 50Hz / 60Hz Low Speed 50Hz / 60Hz
DAM-0.25 550 0.25 0.313 10 0.68 0.54 26 31 65 / 78 33 / 39 22.4 2.95 – 5.91 43.3 [31.4] 161
DAM-0.5 1,100 0.5 0.625 10 1.22 24 28 22.8 165
DAM-1W 2,200 1 1.25 10 1.22 12 14 29.1 203
DAM-1S 2,200 1 1.25 10 2.31 22 27 24.4 223
DAM-1.5 3,500 1.5 1.88 10 4.62 29 34 30.7 3.94 – 5.91 59 [31.4]

59 [39.4]

 434
DAM-2W 4,400 2 2.5 10 2.31 11 13 31.2 273
DAM-2S 4,400 2 2.5 10 4.62 23 27 28.9 434
DAM-2.5 5,500 2.5 3.13 10 4.62 1.02 18 21 29.5 423
DAM-3 6,600 3 3.75 10 4.62 14 17 37.8 461
DAM-5 11,000 5 6.25 10 4.62 9 11 41.3 5.00 – 7.00 73.7 [39.4] 542
DAM-7.5 16,500 7.5 9.38 10 4.62 1.02 X 2 6 7 47.4 * 1,058
DAM-10 22,000 10 12.5 10 4.62 X 2 9 10 46.6 * 1,365
DBM-0.25 550 0.25 0.313 10 0.68 : 0.23 0.54 26 : 9 31 : 10 65 / 78 33 / 39 22.4 2.95 – 4.92 43.3 [39.4] 192
DBM-0.5 1,100 0.5 0.625 10 1.22 : 0.41 24 : 8 28 : 9 22.8 201
DBM-1W 2,200 1 1.25 10 1.22 : 0.41 12 : 4 14 : 5 29.1 245
DBM-1S 2,200 1 1.25 10 2.31 : 0.77 22 : 7 27 : 9 24.4 267
DBM-1.5 3,500 1.5 1.88 10 4.62 : 1.55 29 : 10 34 : 11 30.7 3.94 – 5.91 59 [31.4]

59 [39.4]

 470
DBM-2W 4,400 2 2.5 10 2.31 : 0.77 11 : 4 13 : 4 31.2 317
DBM-2S 4,400 2 2.5 10 4.62 : 1.55 23 : 8 27 : 9 28.9 478
DBM-2.5 5,500 2.5 3.13 10 4.62 : 1.55 1.02 18 : 6 21 : 7 29.5 461
DBM-3 6,600 3 3.75 10 4.62 : 1.55 14 : 5 17 : 6 37.8 498
DBM-5 11,000 5 6.25 10 4.62 : 1.55 9 : 3 11 : 3 41.3 4.92 – 6.89 78.7 [39.4] 580

*If You Require 6 Button Pendant Control in Place of 4 Button, a “C” Should be Added to the End of the Model Name
*The Length of Power Cord 4Core Cable is 16′
*Standard Push Button Cord is 2′ Less than Lift
*Contact the Factory for Special Beam Widths for Motorized Trolley
*Special Motorized Trolleys Can be Supplied where the Trolley Minimum Radius is the Number Bracketed Of

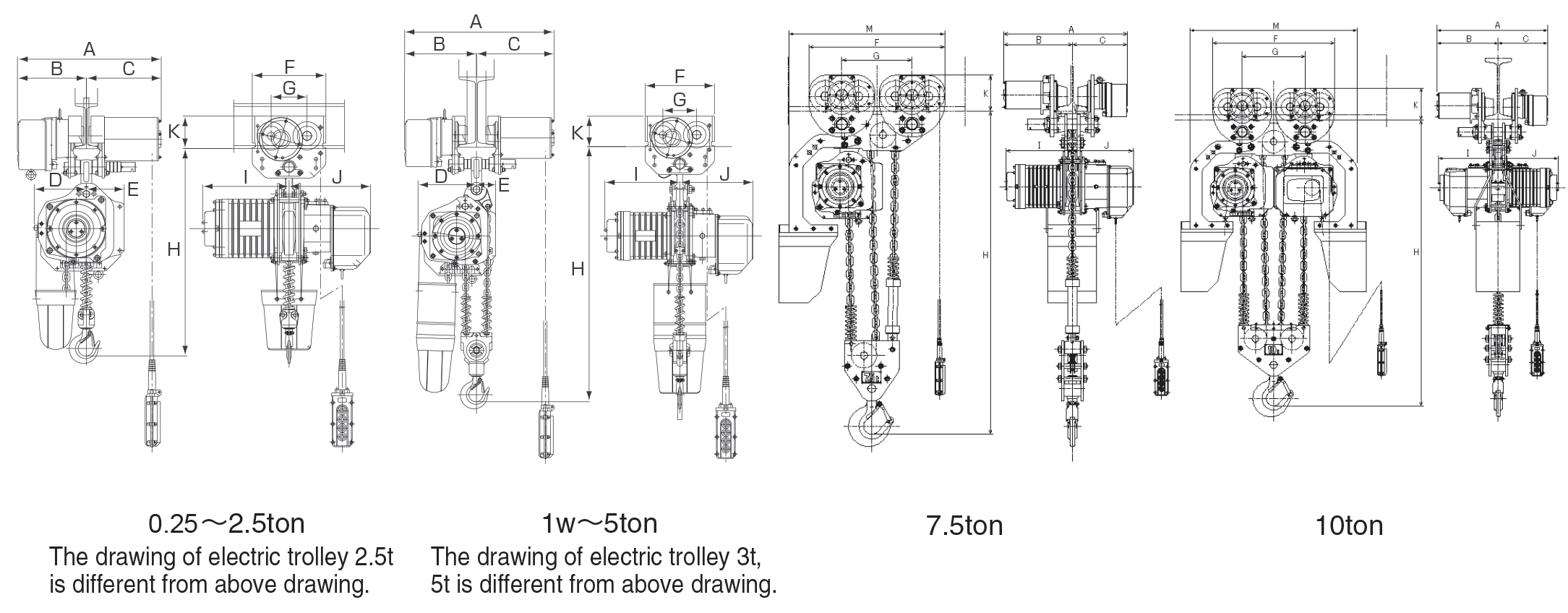

Stock Number A B C γ D E G I J K M
DAM / DBM-0.25 19.0+2ß 9.8+ß 9.0+ß 2.9 6.6 9.5 4.7 10.5 / 10.9 10.3 / 11.3 4.92 –
DAM / DBM-0.5 19.0+2ß 9.8+ß 9.0+ß 2.9 6.6 9.5 4.7 10.5 / 11.0 10.3 / 11.3 4.92 –
DAM / DBM-1W 19.0+2ß 9.8+ß 9.0+ß 2.9 8.1 9.5 4.7 10.5 / 11.0 10.3 / 11.3 4.92 –
DAM / DBM-1S 19.0+2ß 9.8+ß 9.0+ß 2.9 6.8 9.5 4.7 11.4 / 12.5 10.8 / 11.7 4.92 –
DAM / DBM-1.5 20.0+2ß 10.5+ß 9.7+ß 2.9 7.8 11.3 5.8 13.5 / 14.6 12.3 / 13.6 5.39 –
DAM / DBM-2W 20.0+2ß 10.5+ß 9.7+ß 2.9 8.6 11.3 5.8 11.4 / 12.5 10.8 / 11.7 5.39 –
DAM / DBM-2S 20.0+2ß 10.5+ß 9.7+ß 2.9 7.7 11.3 5.8 13.5 / 14.6 12.3 / 13.6 5.39 –
DAM / DBM-2.5 22.5+2ß 12.7+ß 9.8+ß 2.9 7.7 12.4 6.3 13.5 / 14.6 12.3 / 13.6 7.16 –
DAM / DBM-3 22.5+2ß 12.7+ß 9.8+ß 2.9 10.2 12.4 6.3 13.5 / 14.6 12.3 / 13.6 7.16 –
DAM / DBM-5 24+2ß 13.4+ß 13.4+ß 4.9 10.7 13.2 6.7 13.5 / 14.6 12.3 / 13.6 7.44 –
DAM-7 & DAM-10 24+2ß 13.4+ß 13.4+ß 4.9 – 27.4 14.2 13.5 / 14.6 12.3 / 13.6 7.44 31.4 & 37.8

*The Dimensions D and E Depend on the Lift
* The dimensions A, B, C of the trolley will vary with the change of the traversing rail’s width to be used. The figure β in the Table can be obtained from the following equation: β=1/2x[width(mm) of the traversing rail-γ]
*The Dimension K is in case that “Traversing I Beam Width” is Minimum
