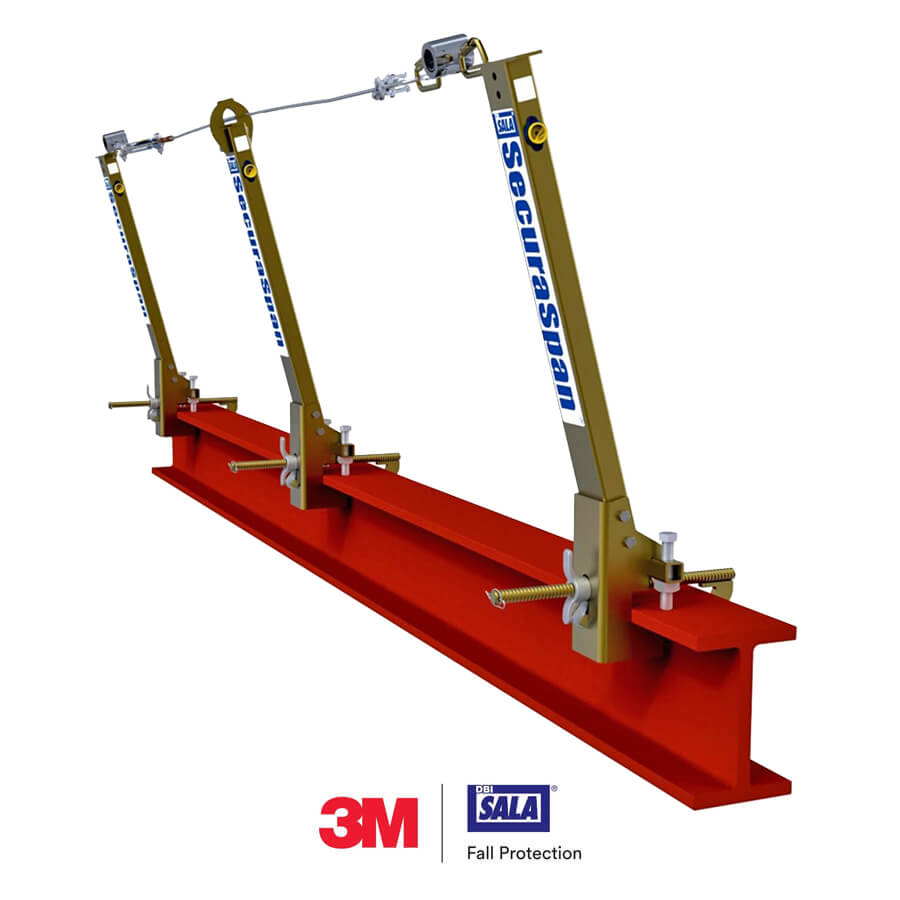

3M™ DBI-SALA® SecuraSpan® Horizontal Lifeline System

3M™ DBI-SALA® SecuraSpan® Horizontal Lifeline System

• Temporary system can be moved from one location to another for added productivity
• Fast installation with a simple clamp anchor
• Unlimited system length provides 100% protection and flexibility
• Zorbit™ energy absorber with turnbuckle
• Standard size fits flanges up to 12” (30cm) wide and 2-1/4” (5.7cm) thick. Optional base clamps available to fit 18”, 24” or 36” (45, 60 or 91cm) beams, up to 3-3/8” thick
• Custom lengths available in 10’ (3m) increments

Please note: See product instruction manuals for complete clearance information or different user scenarios


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
SecuraSpan® Systems
7400120 20’ (6m) system
7400130 30’ (9m) system
7400140 40’ (12m) system
7400150 50’ (15m) system
7400160 60’ (18m) system
SecuraSpan® Clearance Chart
Span Length 1-2 Users 6′ (1.8m) Lanyard 1-2 Users SRL
0-10′ (3m) 14′-2″ (4.3m) 10’-9” (3.2m)
10′-20′ (3-6m) 15′-5″ (4.6m) 11’-11” (3.6m)
20′-30′ (6-9m) 16′ (4.8m) 13’-2” (3.9m)
30′-40′ (9-12m) 17’-10” (5.4m) 14’-6” (4.4m)
40′-50′ (12-15m) 19’ (5.7m) 15’-7” (4.7m)
50′-60′ (15-18m) 20’-2” (6.1m) 16’-8” (5m)

(required above lower level or obstruction)

Customize Your SecuraSpan® System
7400001 Stanchion, fits flange up to 12” (30cm) wide & 2-1/4” (5.7cm) thick
7400035 Stanchion, fits 18” (45cm) wide & 2-1/4” (5.7cm) thick
7400031 Stanchion, fits 24” (60cm) wide & 2-1/4” (5.7cm) thick
7400036 Stanchion, fits 36” (91cm) wide & 2-1/4” (5.7cm) thick
7400015 Stanchion, fits flange up to 12” (30cm) wide & 3-3/8” (8.4cm) thick
7400032 Stanchion fits 18” (45cm) wide & 3-3/8” (8.4cm) thick
7400033 Stanchion fits 24” (60cm) wide & 3-3/8” (8.4cm) thick
7400034 Stanchion fits 36” (91cm) wide & 3-3/8” (8.4cm) thick
7400008 Intermediate Bypass bracket kit
7403020 20’ (6m) cable assembly with turnbuckle and Zorbit™

(last 3 digits in Part # detail length)

The extremely lightweight stanchions can be configured into a complete engineered fall protection system for steel erectors. With optional “bypass” bracket, the system can be configured to run indefinitely for ultimate job site flexibility. Spans between intermediates can be as great as 60’ (18m) depending on your clearance requirements.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
