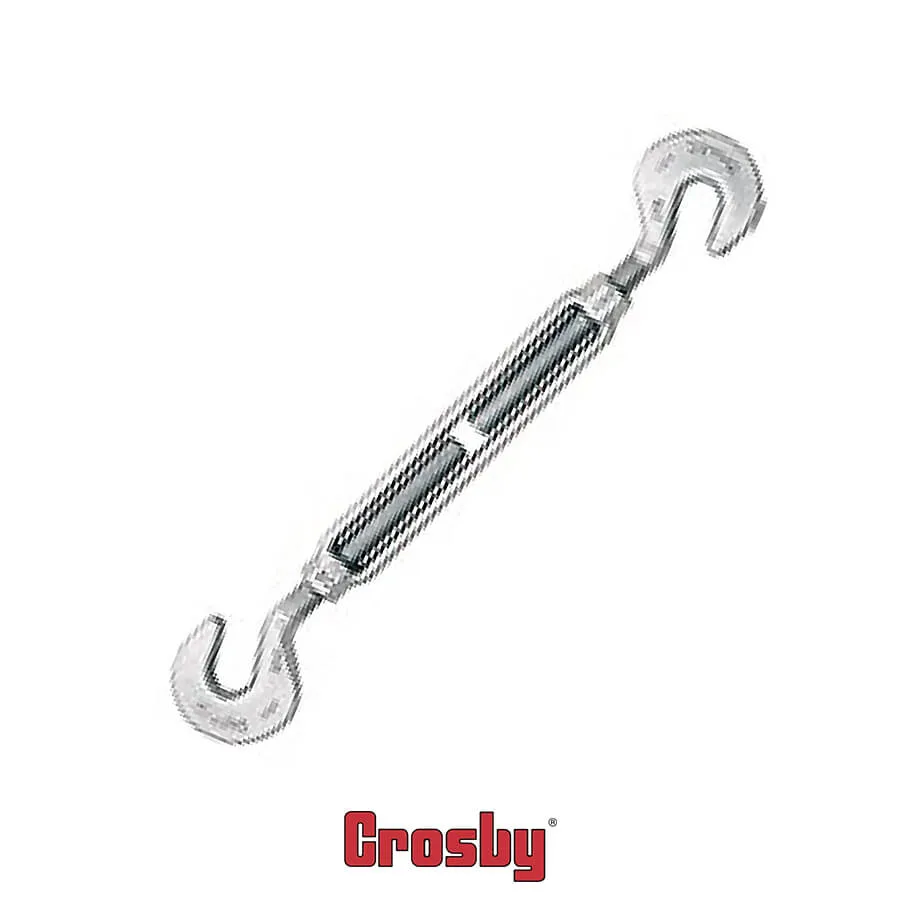

Crosby® HG-223 Hook-Hook Turnbuckles

Crosby® HG-223 Hook-Hook Turnbuckles
    • Hot Dip galvanized steel.
    • End fittings are Quenched and Tempered, bodies heat treated by normalizing.
    • Hooks are forged with a greater cross sectional area that results in a stronger hook with better fatigue properties.
    • TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULLS ONLY.
    • Modified UNJ thread for improved fatigue properties.
    • Lock Nuts available for all sizes.

EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Thread Diameter & Take Up (in.) CERTEX Cat. Ref. No. Crosby Stock No. Galv. Working Load Limit* (lbs.) Weight Each (lbs.) Dimensions (in.)

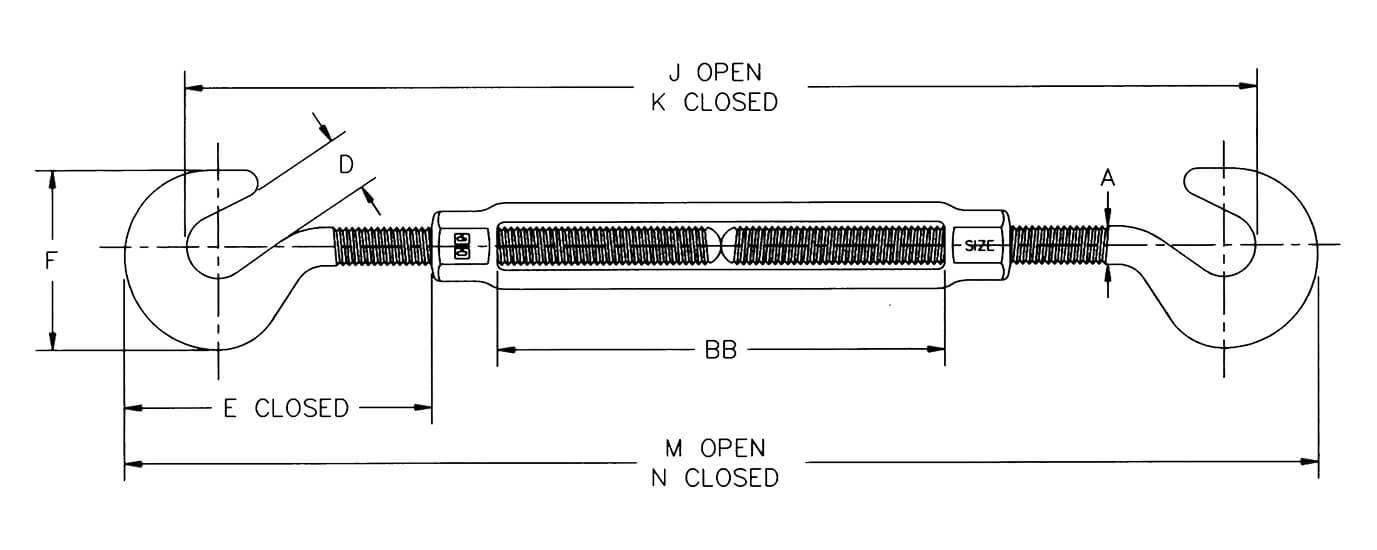

A D E Closed F J Open K Closed M Open N Closed BB
1/4 x 4 CX05-0423 1030011 400 .30 .25 .45 1.59 1.27 11.12 7.12 11.94 7.94 4.00
5/16 x 4 1/2 CX05-0424 1030039 700 .47 .31 .50 1.94 1.50 12.81 8.31 13.81 9.31 4.50
3/8 x 6 CX05-0425 1030057 1000 .78 .38 .56 2.30 1.77 16.50 10.50 17.72 11.72 6.00
1/2 x 6 CX05-0426 1030075 1500 1.60 .50 .66 2.94 2.28 17.82 11.82 19.38 13.38 6.00
1/2 x 9 CX05-0427 1030093 1500 1.83 .50 .66 2.94 2.28 23.82 14.82 25.38 16.38 9.00
1/2 x 12 CX05-0428 1030119 1500 2.28 .50 .66 2.94 2.28 29.82 17.82 31.38 19.38 12.00
5/8 x 6 CX05-0429 1030137 2250 2.75 .63 .84 3.69 2.81 19.25 13.25 21.25 15.25 6.00
5/8 x 9 CX05-0430 1030155 2250 3.38 .63 .84 3.69 2.81 25.25 16.25 27.25 18.25 9.00
5/8 x 12 CX05-0431 1030173 2250 3.50 .63 .84 3.69 2.81 31.25 19.25 33.25 21.25 12.00
3/4 x 6 CX05-0432 1030191 3000 3.89 .75 .98 4.52 3.33 20.88 14.88 23.28 17.28 6.00
3/4 x 9 CX05-0433 1030217 3000 5.28 .75 .98 4.52 3.33 26.88 17.88 29.28 20.28 9.00
3/4 x 12 CX05-0434 1030235 3000 5.43 .75 .98 4.52 3.33 32.88 20.88 35.28 23.28 12.00
3/4 x 18 CX05-0435 1030253 3000 6.33 .75 .98 4.52 3.33 44.88 26.88 47.28 29.28 18.00
7/8 x 12 CX05-0436 1030271 4000 8.10 .88 1.13 5.19 3.78 34.25 22.25 37.00 25.00 12.00
7/8 x 18 CX05-0437 1030299 4000 9.95 .88 1.13 5.19 3.78 46.25 28.25 49.00 31.00 18.00
1 x 6 CX05-0438 1030315 5000 9.33 1.00 1.25 5.84 4.25 23.63 17.63 26.69 20.69 6.00
1 x 12 CX05-0439 1030333 5000 11.93 1.00 1.25 5.84 4.25 35.63 23.63 38.69 26.69 12.00
1 x 18 CX05-0440 1030351 5000 14.00 1.00 1.25 5.84 4.25 47.63 29.63 50.69 32.69 18.00
1 x 24 CX05-0441 1030379 5000 17.25 1.00 1.25 5.84 4.25 59.63 35.63 62.69 38.69 24.00
1 1/4 x 12 CX05-0442 1030397 6500 20.58 1.25 1.50 7.22 5.13 37.94 25.94 41.56 29.56 12.00
1 1/4 x 18 CX05-0443 1030413 6500 23.00 1.25 1.50 7.22 5.13 49.94 31.94 53.56 35.56 18.00
1 1/4 x 24 CX05-0444 1030431 6500 27.00 1.25 1.50 7.22 5.13 61.94 37.94 65.56 41.56 24.00
1 1/2 x 12 CX05-0445 1030459 7500 27.50 1.50 1.88 8.34 5.75 40.94 28.94 44.44 32.44 12.00
1 1/2 x 18 CX05-0446 1030477 7500 31.00 1.50 1.88 8.34 5.75 52.96 34.94 56.44 38.44 18.00
1 1/2 x 24 CX05-0447 1030495 7500 37.50 1.50 1.88 8.34 5.75 64.94 40.94 68.44 44.44 24.00



* Proof Load is 2.5 times Working Load Limit. Ultimate load is 5 times Working Load Limit.
Meets the performance requirements of Federal Specifications FF-T-791b, Type 1 Form 1 — CLASS 5, except for those provisions required of the contractor

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
