METRIC THREADS
Also Available in UNC

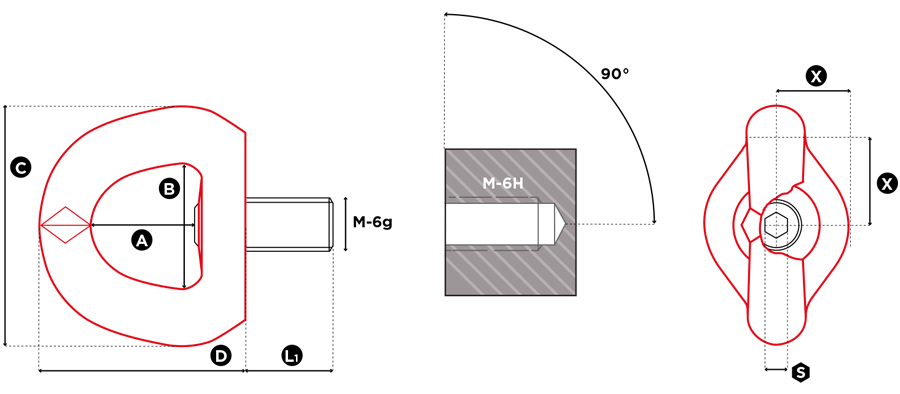

| Model Number | Diameter | SF 5:1 WLL (t) | SF 4:1 WLL (t) | Standard L1 (mm) | Torque (NM) |  | Dimensions (mm) | Weight | |||||
| S | A | B | C | D | (kg) | (lbs) | |||||||
| SEB M 8 UP | M 8 (x1,25) | 0,40 | 0,50 | 14 | 6 | 20 | 6 | 30 | 34 | 60 | 57 | 0,24 | 0.53 |
| SEB M 10 UP | M 10 (x1,5) | 0,50 | 0,70 | 17 | 10 | 20 | 6 | 30 | 34 | 60 | 57 | 0,24 | 0.53 |
| SEB M 12 UP | M 12 (x1,75) | 0,80 | 0,90 | 21 | 15 | 20 | 6 | 30 | 34 | 60 | 57 | 0,24 | 0.53 |
| SEB M 16 UP | M 16 (x2) | 1,40 | 1,80 | 27 | 50 | 35 | 8 | 38 | 45 | 88 | 80 | 0,8 | 1.76 |
| SEB M 20 UP | M 20 (x2,5) | 2,00 | 2,70 | 30 | 100 | 35 | 8 | 38 | 45 | 88 | 80 | 0,8 | 1.76 |
| SEB M 24 3t8 UP | M 24 (x3) | 3,20 | 3,80 | 36 | 160 | 35 | 14 | 38 | 45 | 88 | 80 | 0,8 | 1.76 |
| SEB M 30 UP | M 30 (x3,5) | 5,50 | 6,30 | 45 | 250 | 50 | 14 | 58 | 70 | 115 | 106 | 2,7 | 5.95 |
| SEB M 36 UP | M 36 (x4) | 9,00 | 11,00 | 54 | 320 | 70 | 14 | 83 | 94 | 168 | 155 | 7,0 | 15.43 |
| SEB M 42 UP | M 42 (x4,5) | 12,00 | 15,00 | 63 | 400 | 70 | 14 | 83 | 94 | 168 | 155 | 7,0 | 15.43 |
| SEB M 48 UP | M 48 (x5) | 15,00 | 16,00 | 70 | 600 | 70 | 19 | 80 | 94 | 168 | 155 | 7,0 | 15.43 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
