Esmet Clevis Socket with Pin and Cotter Pin – Field Installable Wire Rope Termination

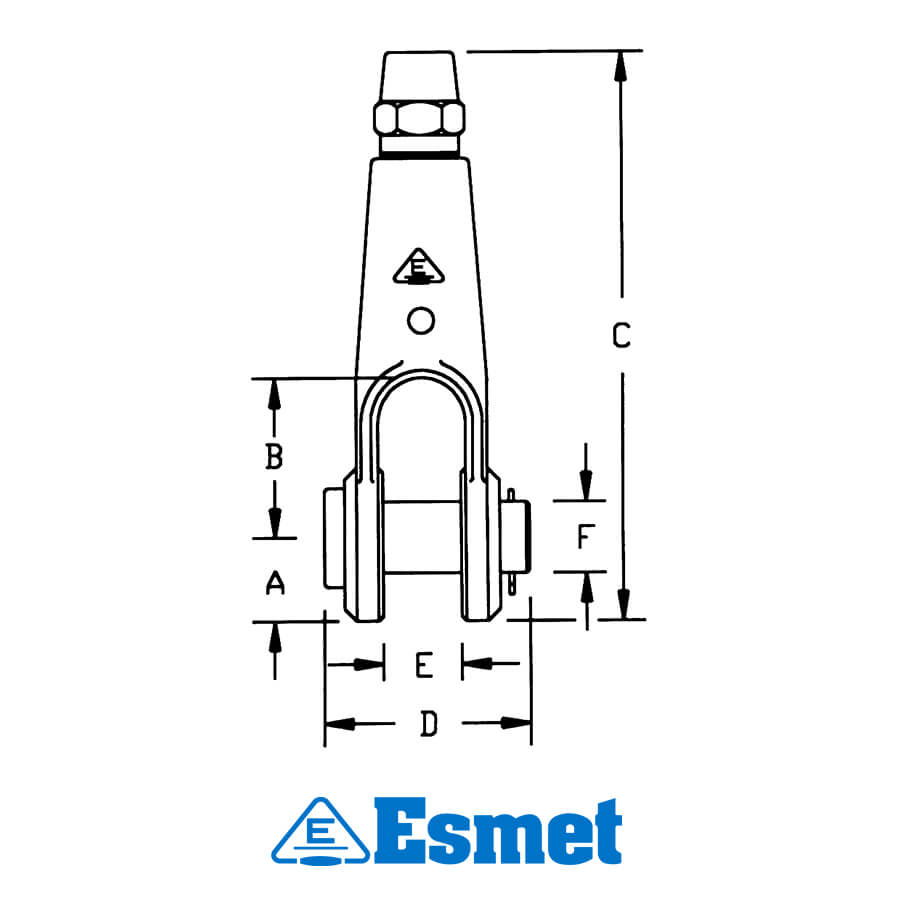

Rope Size Self-Colored Steel Galvanized Steel Dimensions (inches)
CERTEX Cat. Ref. No. Esmet Cat. No. CERTEX Cat. Ref. No. Esmet Cat. No. A B C D E F
7/16 CX04-0572 PD-143-N CX04-0579 PD-143-X 1-1/16 2 7-3/16 2-19/32 1 1
1/2 CX04-0573 PD-150-N CX04-0580 PD-150-X 1-1/16 2 7-3/16 2-19/32 1 1
9/16 CX04-0574 PD-156-N CX04-0581 PD-156-X 1-1/4 2-1/2 8-5/8 3-11/64 1-1/4 1-3/16
5/8 CX04-0575 PD-162-N CX04-0582 PD-162-X 1-1/4 2-1/2 8-5/8 3-11/64 1-1/4 1-3/16
3/4 CX04-0576 PD-175-N CX04-0583 PD-175-X 1-7/16 3 10-3/16 3-11/16 1-1/2 1-3/8
7/8 CX04-0577 PD-187-N CX04-0584 PD-187-X 1-15/16 2-7/8 12-5/8 4-7/8 1-7/8 1-1/2
1 CX04-0578 PD-199-N CX04-0585 PD-199-X 2-3/16 3-5/16 15-1/2 5-5/8 1-7/8 1-13/16

NOTE: Extra Strength Fittings rated at 100% RBS of Extra-Improved Plow Steel Wire Rope.
Larger sizes available

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
