Contact your location Certex to customize your Wire Rope Sling.
Sling Angles at 30˚, 45˚, and 60˚.
| CERTEX Cat. Ref. No. | ROPE DIAMETER (INCHES) | VERTICAL | |||
|---|---|---|---|---|---|

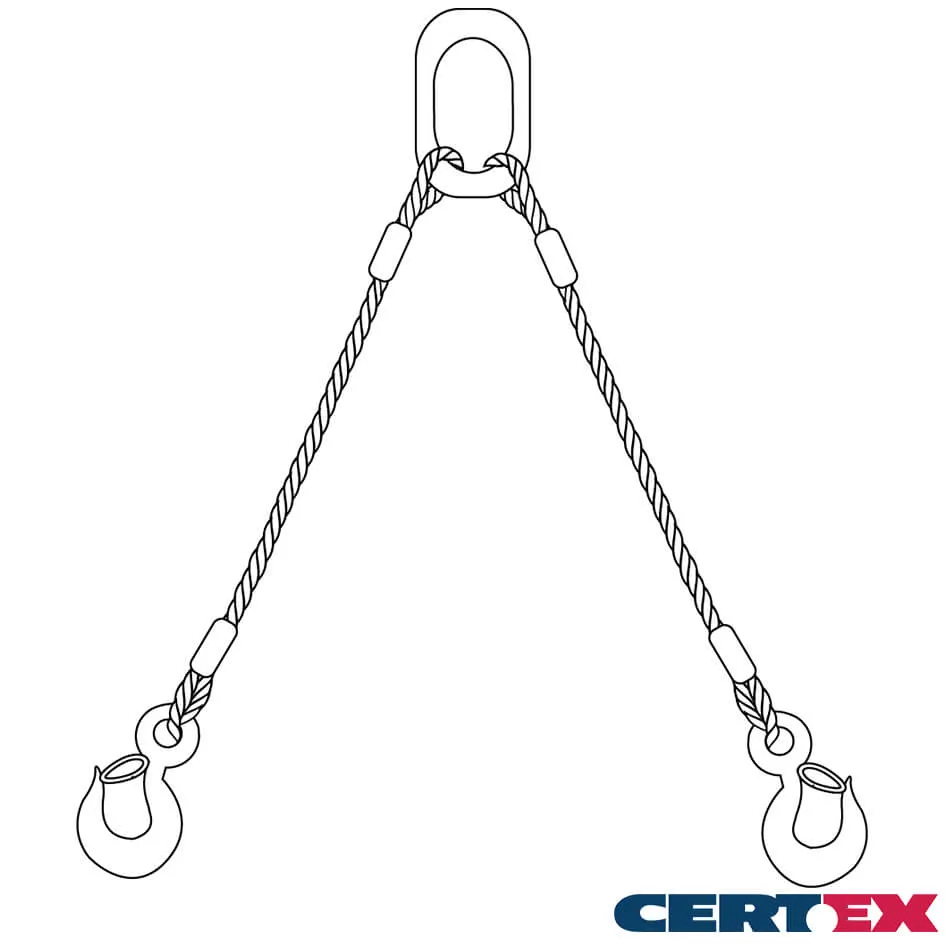

| 2 LEG BRIDLE | |||||
| 30° | 45° | 60° | |||
| CX02-0033 | 1/4 | 1.3 | 0.65 | 0.91 | 1.1 |
| CX02-0034 | 5/16 | 2.0 | 1.0 | 1.4 | 1.7 |
| CX02-0035 | 3/8 | 2.9 | 1.4 | 2.0 | 2.5 |
| CX02-0036 | 7/16 | 3.9 | 1.9 | 2.7 | 3.4 |
| CX02-0037 | 1/2 | 5.1 | 2.5 | 3.6 | 4.4 |
| CX02-0038 | 9/16 | 6.4 | 3.2 | 5.5 | 6.8 |
| CX02-0039 | 5/8 | 7.8 | 3.9 | 5.5 | 6.8 |
| CX02-0040 | 3/4 | 11 | 5.6 | 7.9 | 9.7 |
| CX02-0041 | 7/8 | 15 | 7.6 | 11 | 13 |
| CX02-0042 | 1 | 20 | 9.8 | 14 | 17 |
| CX02-0043 | 1 1/8 | 24 | 12 | 17 | 21 |
| CX02-0044 | 1 1/4 | 30 | 15 | 21 | 26 |
| CX02-0045 | 1 3/8 | 36 | 18 | 25 | 31 |
| CX02-0046 | 1 1/2 | 42 | 21 | 30 | 37 |
| CX02-0047 | 1 5/8 | 49 | 24 | 35 | 42 |
| CX02-0048 | 1 3/4 | 57 | 28 | 40 | 49 |
| CX02-0049 | 1 7/8 | 64 | 32 | 46 | 56 |
| CX02-0050 | 2 | 73 | 37 | 52 | 63 |
RATED CAPACITIES BASKET HITCH BASED ON D/d RATIO OF 25
RATED CAPACITIES BASED ON PIN DIAMETER NO LARGER THAN NATURAL EYE WIDTH OR LESS THAN THE NOMINAL SLING DIAMETER
RATED CAPACITIES BASED ON DESIGN FACTOR OF 5
HORIZONTAL SLING ANGLES LESS THAN 30 DEGREES SHALL NOT BE USED
Rated Capacities shown apply only to 6×19 and 6×37 classification wire rope.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
