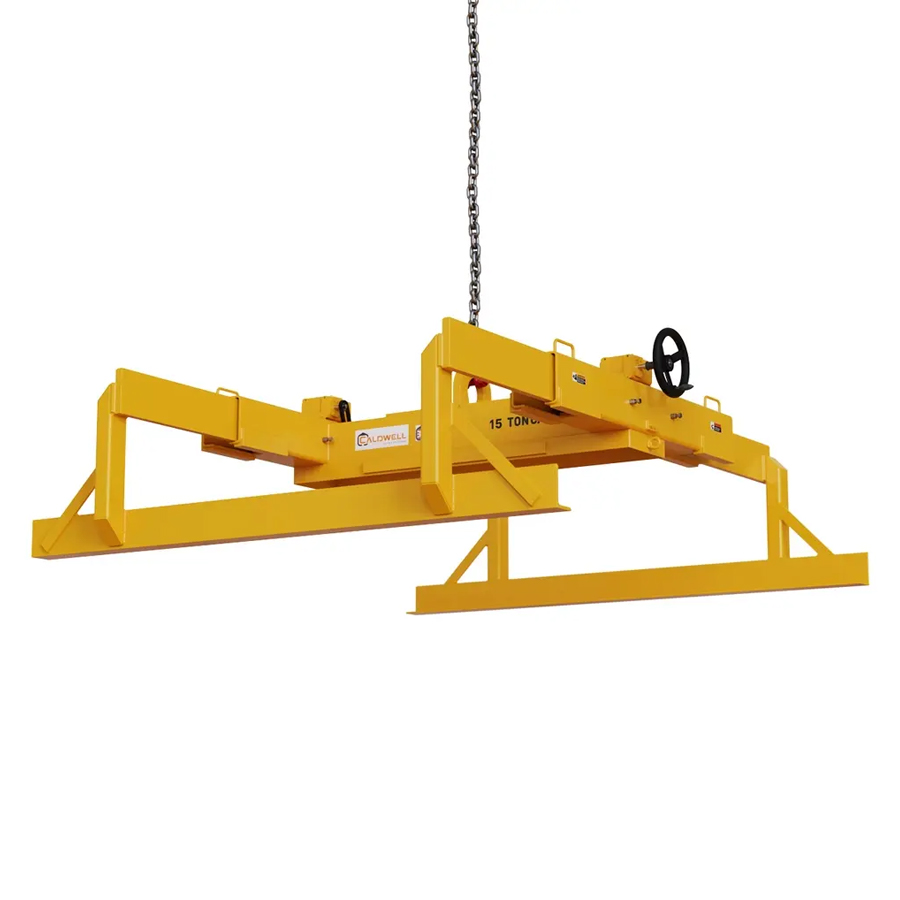

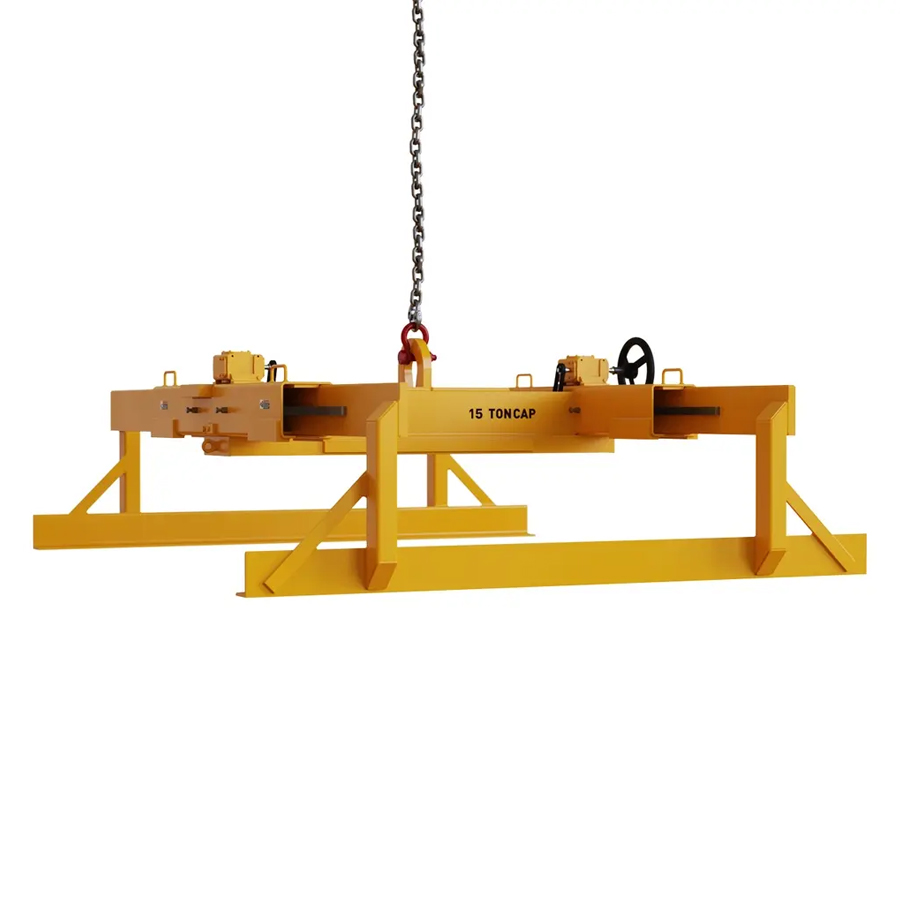

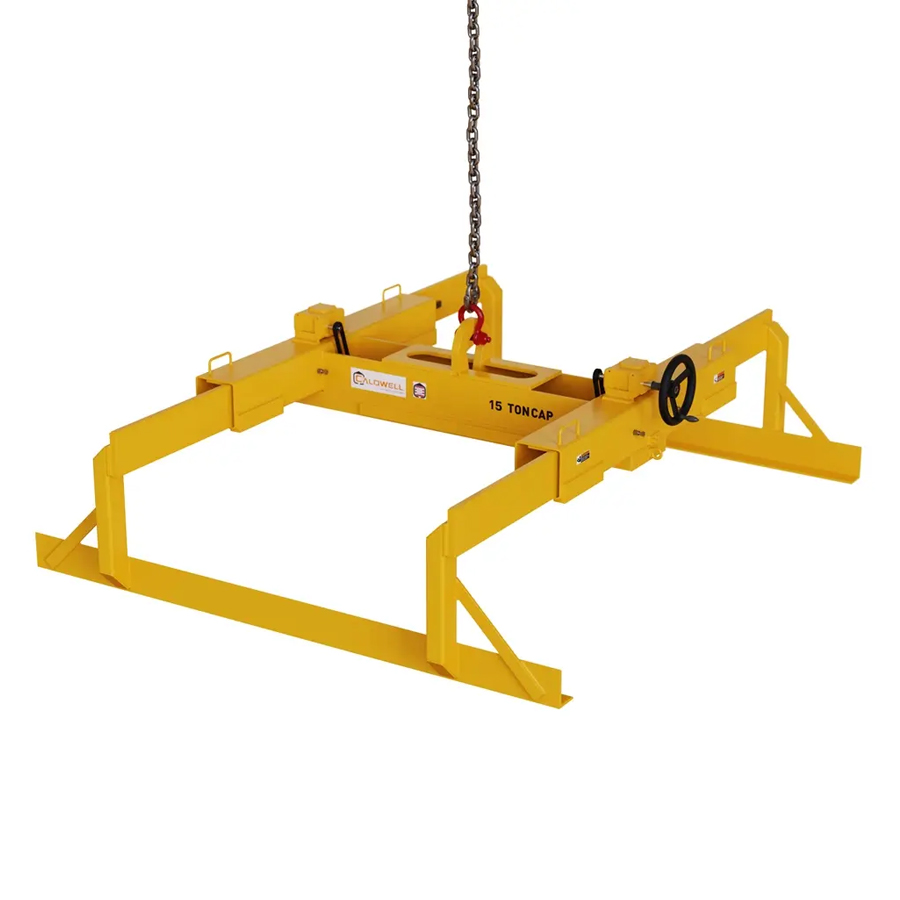

Caldwell Heavy-Duty Sheet Lifters Model 60

Caldwell Heavy-Duty Sheet Lifters Model 60

When headroom is an issue, Model 60 is ready. Its compact design gives you options when vertical space is not available. Couple that with its ability to handle bundles, sheets, or plates, and you’ve got a solid option for a wide variety of applications.

Product Features:

  • Versatile handling of bundles, sheets, plates, and other materials stacked horizontally
  • Low headroom design for optimum lifting capabilities
  • One person operation minimizes handling cost
  • Self-locking work gear drive for leg adjustment is standard
  • Easy adjustment for different sheet widths
  • Rack and pinion leg drive
  • Designed for easy maintenance
  • Designed for greater sheet width range
  • Complies with ASME standards

Product Options:

  • Hand wheel lockout
  • Motorized leg adjustment; includes pendant controls
  • Battery powered motorization
  • Extended length hand wheel leg adjustment
  • End chains with plate hooks (recommended for all widths 72″ and greater)
  • Extended grab shoe lengths available
  • Additional bundle clearance available (longer legs)

⚠ Warnings
Do not lift loosely bundled, thin or oily sheets.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

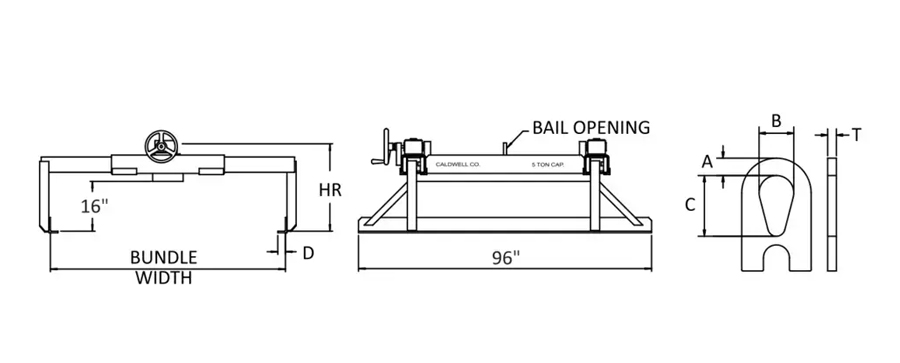

Model Number Capacity (tons) Min Aisle Req (in.) Bail Depth (in.) Bail Open W (in.) Bail Open Ht (in.) Bail Thick (in.) Max Bundle W (in.) Min Bundle W (in.) Headroom (in.) Shoe W (in.) Weight (lbs.) In Stock Price
60-3-48 3 9 1.5 3 5 0.75 48 16 28 2.63 920 ❌ $
60-3-60 3 9 1.5 3 5 0.75 60 16 28 2.63 950 ❌ $
60-3-72 3 9 1.5 3 5 0.75 72 16 28 2.63 980 ❌ $
60-5-48 5 9 2 4 6 1 48 16 29 2.63 1125 ❌ $
60-5-60 5 9 2 4 6 1 60 16 29 2.63 1170 ❌ $
60-5-72 5 9 2 4 6 1 72 16 29 2.63 1220 ❌ $
60-5-84 5 9 2 4 6 1 84 16 29 2.63 1270 ❌ $
60-5-96 5 9 2 4 6 1 96 16 29 2.63 1550 ❌ $
60-10-48 10 11 2 4 7 1.5 48 16 30 3.5 1510 ❌ $
60-10-60 10 11 2 4 7 1.5 60 16 30 3.5 1570 ❌ $
60-10-72 10 11 2 4 7 1.5 72 16 30 3.5 1640 ❌ $
60-10-84 10 11 2 4 7 1.5 84 16 30 3.5 1700 ❌ $
60-10-96 10 11 2 4 7 1.5 96 16 30 3.5 1770 ❌ $
60-15-48 15 12 2.5 5 9 1.5 48 16 32 3.5 1570 ❌ $
60-15-60 15 12 2.5 5 9 1.5 60 16 32 3.5 1640 ❌ $
60-15-72 15 12 2.5 5 9 1.5 72 16 32 3.5 1700 ❌ $
60-15-84 15 12 2.5 5 9 1.5 84 38 32 3.5 1960 ❌ $
60-15-96 15 12 2.5 5 9 1.5 96 38 32 3.5 2030 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
