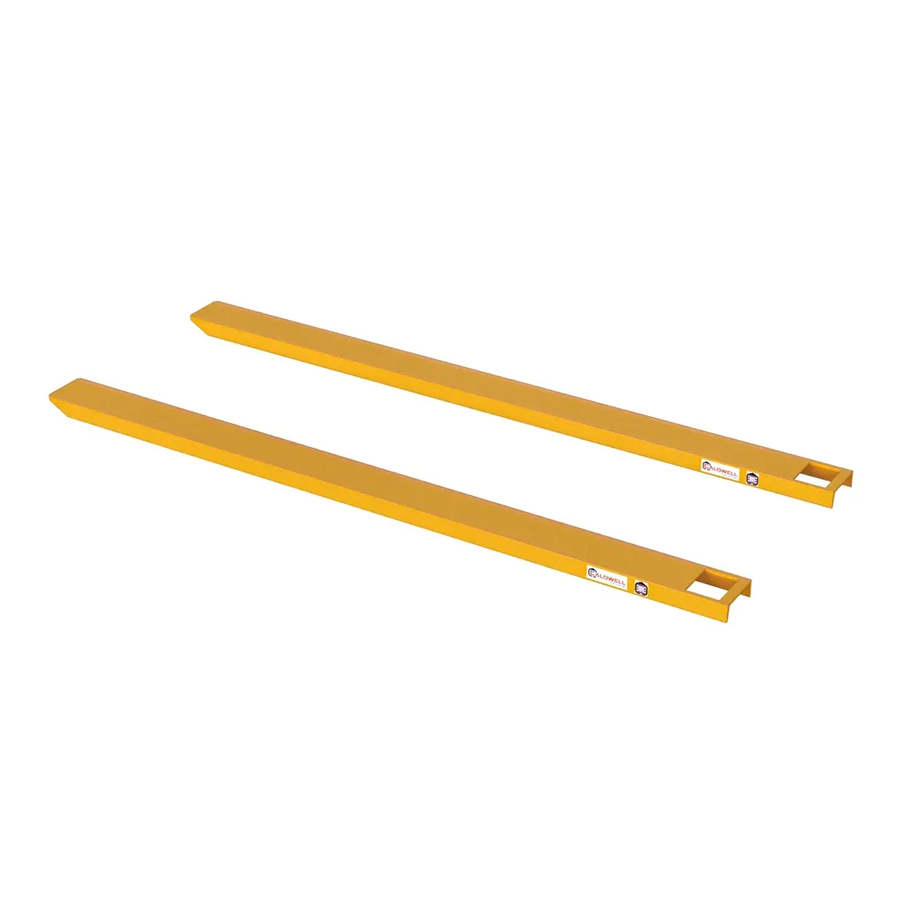

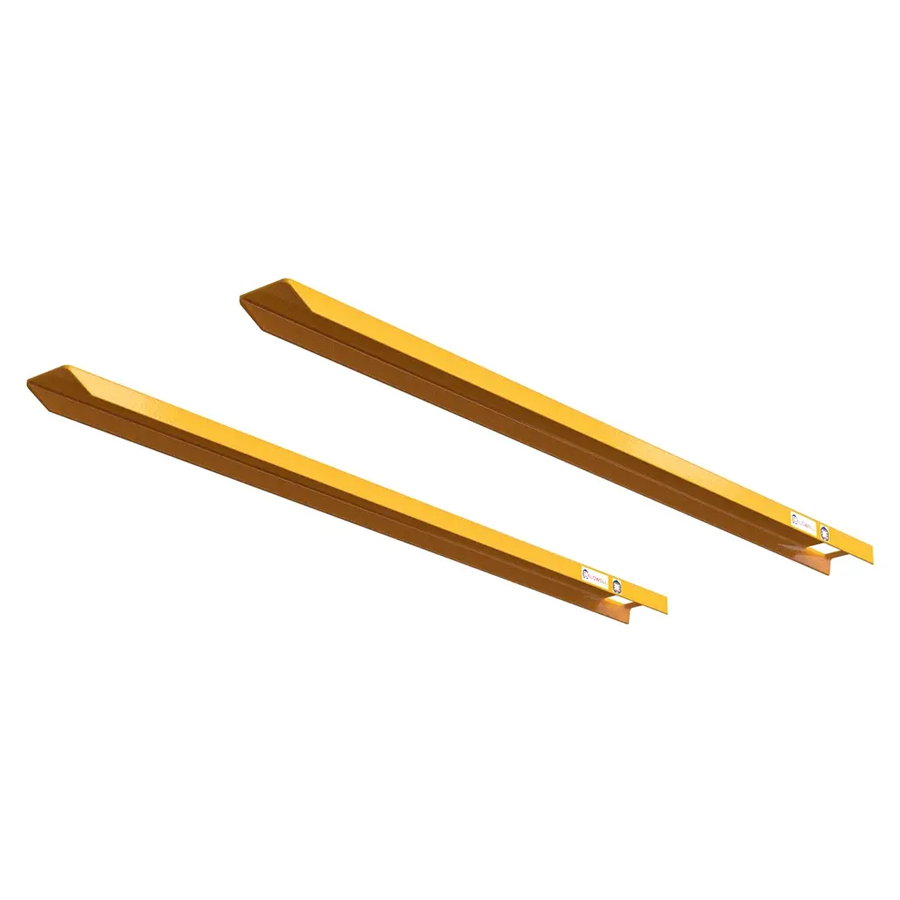

Caldwell Fork Extensions Model FE

Caldwell Fork Extensions Model FE

Get more bang for your fork truck buck! When you need a bit more power, fork extensions can make oversized loads manageable.

Features:

  • Ideal for oversized loads
  • Easy installation onto existing forks
  • Fits standard fork thicknesses
  • Standard fork extension widths 4″ to 7″
  • Standard fork extension lengths 42″ through 96″

⚠ Warnings:

  • Extensions shall not exceed 1 1/2X the length of the existing forks.
  • Extension capacities are reduced beyond existing fork tips (Approx. 60%).
  • Do not tip-load the fork extensions.
  • Load center of gravity must not extend past existing fork tips.
  • Capacity of lift truck and attachment combination may be less than capacity shown on attachment. Consult lift truck manufacturer.

EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Model Number Rated Capacity Each (tons) Ext Length (in.) Overall Length (in.) Pocket Opening Width Lift Truck Fork Width (in.) Min Fork Length (in.) Load Center Pt (in.) Wt Each (lbs.) In Stock Price
FE4-42 0.96 42 46.63 4.5 4 28 21 30 ❌ $
FE4-48 0.85 48 52.63 4.5 4 32 24 34 ❌ $
FE4-54 0.75 54 58.63 4.5 4 36 27 39 ❌ $
FE4-60 0.68 60 64.63 4.5 4 40 30 43 ✔ $
FE4-63 0.64 63 67.63 4.5 4 42 32 45 ❌ $
FE4-66 0.61 66 70.63 4.5 4 44 33 47 ❌ $
FE4-72 0.56 72 76.63 4.5 4 48 36 51 ✔ $
FE5-42 1.26 42 47 5.5 5 28 21 36 ❌ $
FE5-48 1.1 48 53 5.5 5 32 24 41 ❌ $
FE5-54 0.98 54 59 5.5 5 36 27 46 ❌ $
FE5-60 0.88 60 65 5.5 5 40 30 51 ✔ $
FE5-63 0.84 63 68 5.5 5 42 32 53 ❌ $
FE5-66 0.8 66 71 5.5 5 44 33 56 ❌ $
FE5-72 0.74 72 77 5.5 5 48 36 61 ✔ $
FE5-96 0.55 96 101 5.5 5 64 48 80 ❌ $
FE6-42 1.6 42 47 6.5 6 28 21 43 ❌ $
FE6-48 1.4 48 53 6.5 6 32 24 48 ❌ $
FE6-54 1.25 54 59 6.5 6 36 27 54 ❌ $
FE6-60 1.12 60 65 6.5 6 40 30 60 ✔ $
FE6-63 1.06 63 68 6.5 6 42 32 63 ❌ $
FE6-66 1.01 66 71 6.5 6 44 33 66 ❌ $
FE6-72 0.94 72 77 6.5 6 48 36 71 ✔ $
FE6-96 0.7 96 101 6.5 6 64 48 94 ❌ $
FE7-42 2 42 42 7.11 7 28 21 42 ❌ $
FE7-48 1.75 48 48 7.11 7 32 24 48 ❌ $
FE7-54 1.55 54 54 7.11 7 36 27 53 ❌ $
FE7-60 1.4 60 60 7.11 7 40 30 60 ❌ $
FE7-63 1.34 63 63 7.11 7 42 32 62 ❌ $
FE7-66 1.27 66 66 7.11 7 44 33 65 ❌ $
FE7-72 1.16 72 72 7.11 7 48 36 71 ❌ $
FE7-96 0.88 96 96 7.11 7 64 48 94 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
