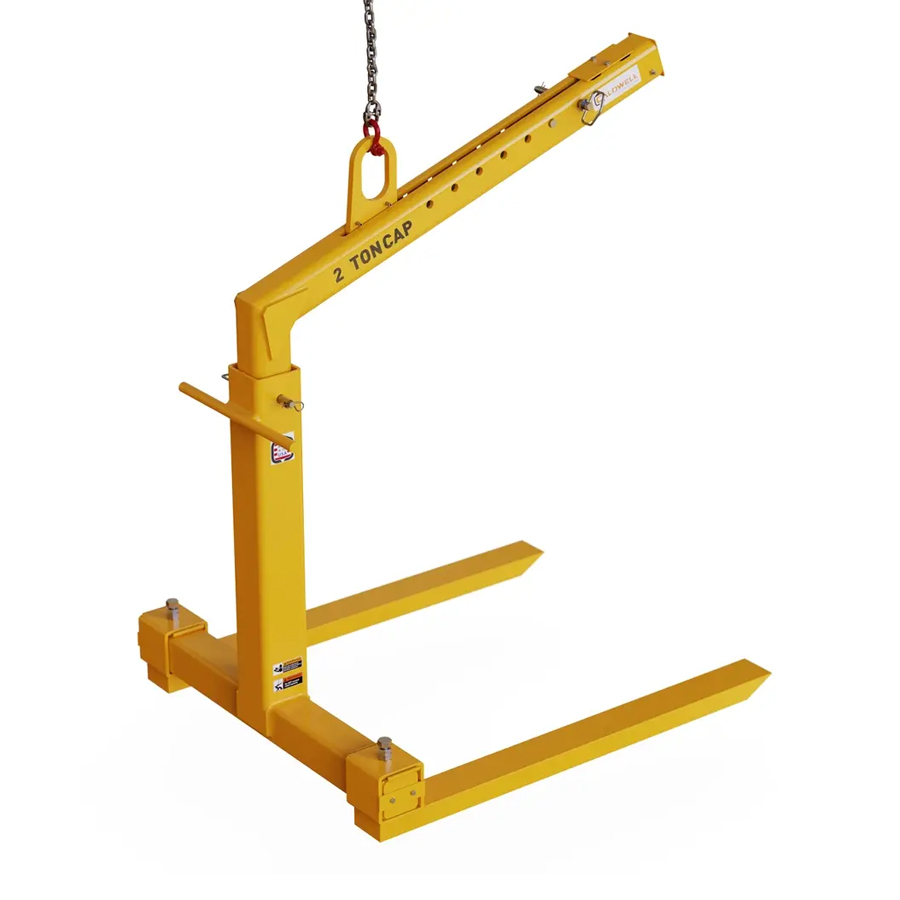

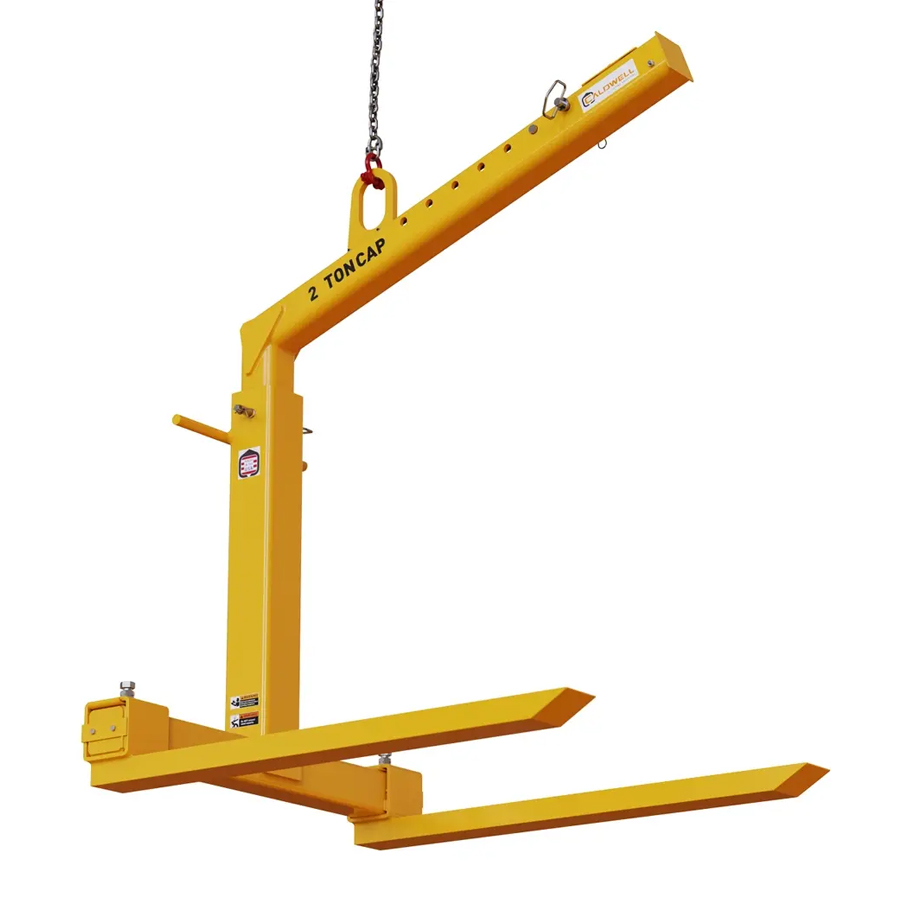

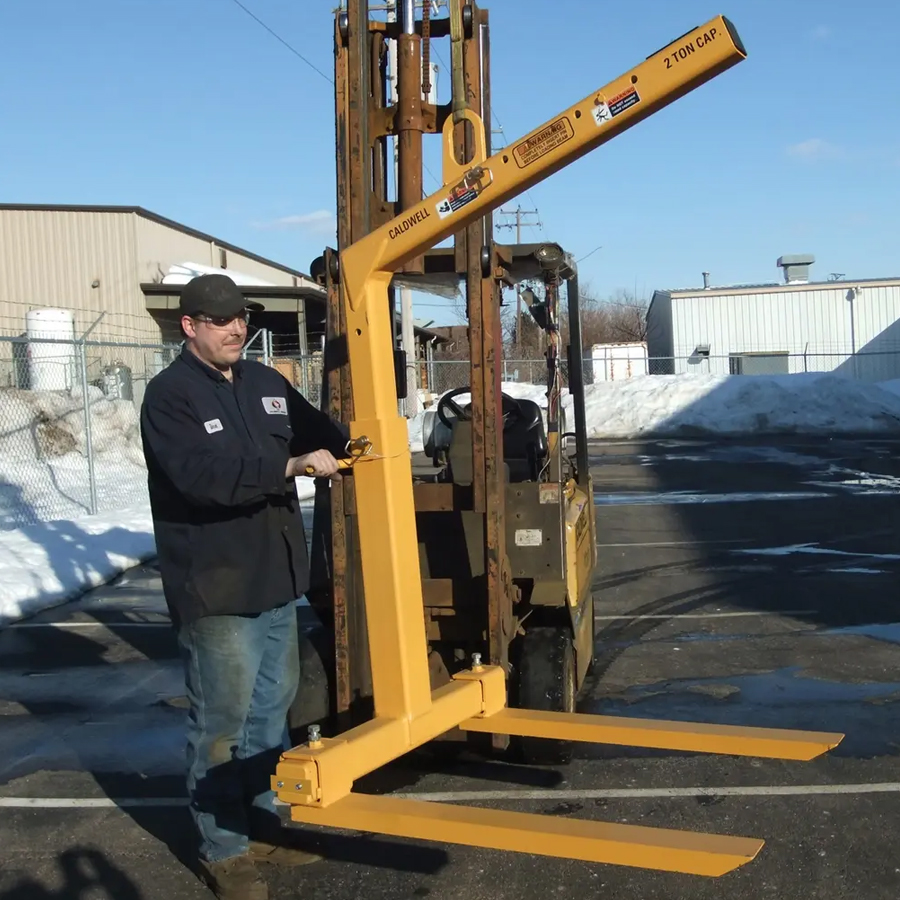

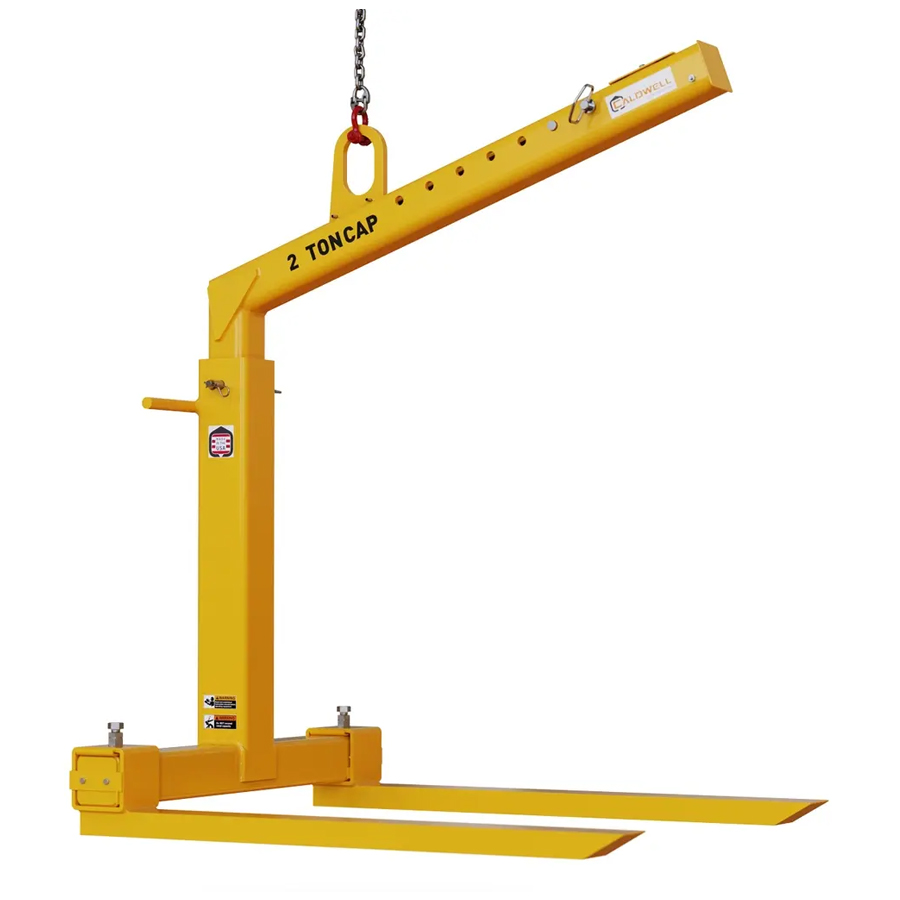

Caldwell Adjustable Load Lifter Model 90ACL

Caldwell Adjustable Load Lifter Model 90ACL

Adjustable bail provides for balanced handling of items with different load centers.

Product Features:

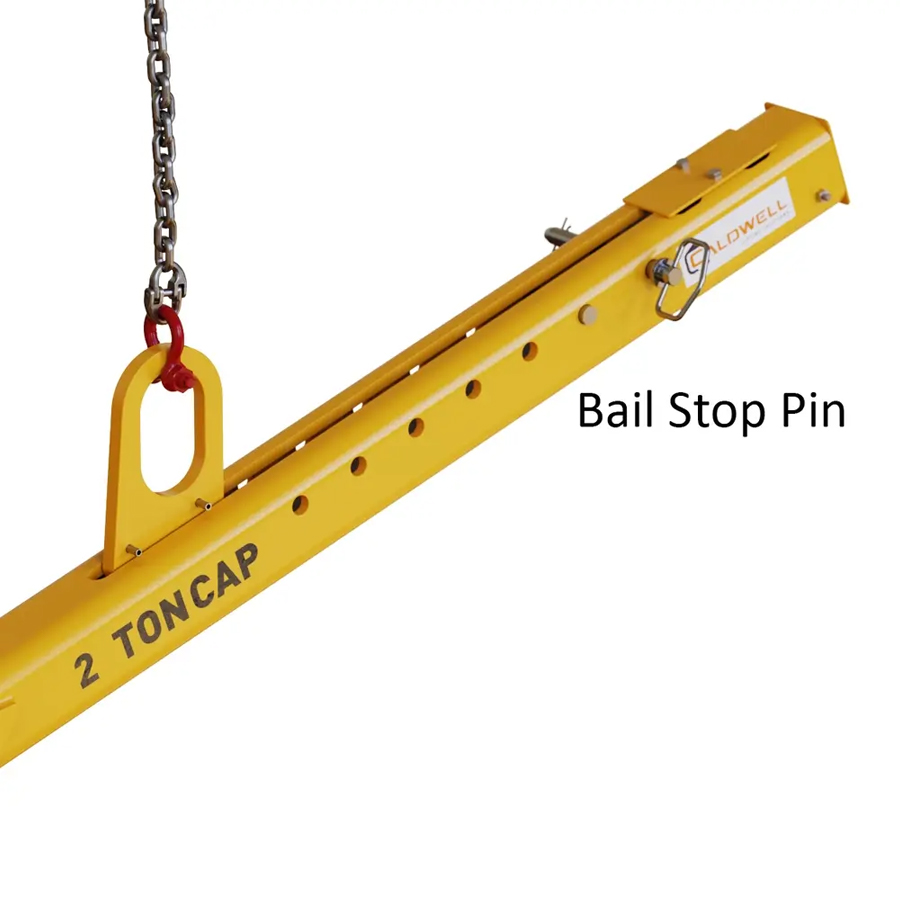

  • Once the bail pin is set, the pallet lifter reamins balanced whether full or empty to make the job safe and easy
  • Adjustable bail provides for balanced handling of items with different load centers
  • Adjustable throat allows for the correct handling of higher stacked loads

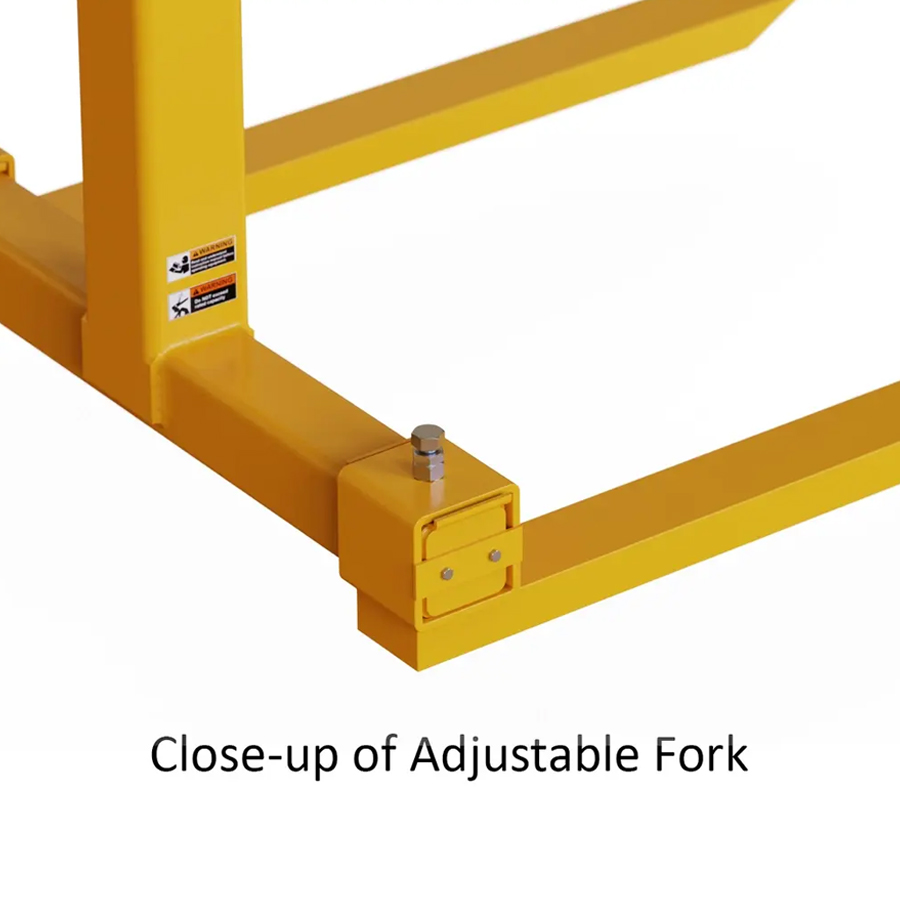

  • Adjustable forks allow for proper placement of the forks spread
  • The auto return bail automatically levels empty pallet lifter saving time and effort
  • Heavy duty construction for years of trouble free service
  • Complies with ASME standards

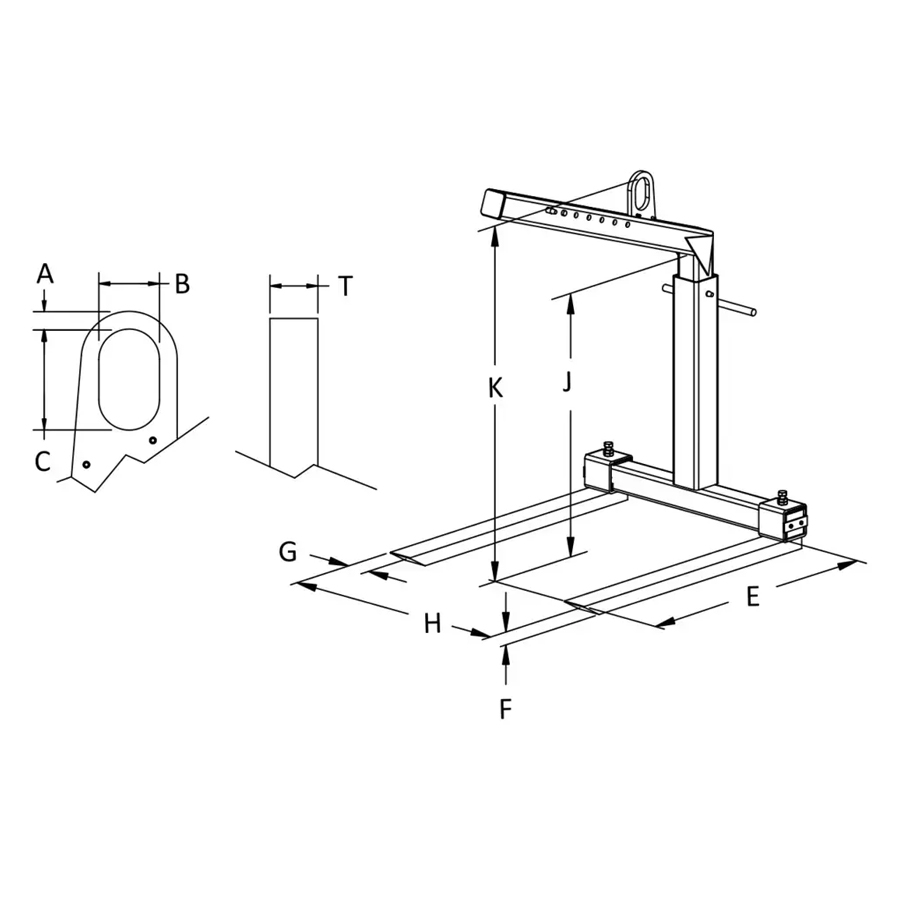

Model Number Capacity (tons) Bail Depth (in.) Bail Open W (in.) Bail Open Ht (in.) Bail Thick (in.) Fork Length (in.) Fork Thick (in.) Fork W (in.) Fork Ins Min W (in.) Fork Ins Max W (in.) Headroom (in.) Throat Open Max (in.) Throat Open Mid (in.) Throat Open Min (in.) Weight (lbs.) In Stock Price
90ACL-2-42 2 0.88 3 5 0.75 43 2 4 36 17.5 84.18 65 53 41 511.2 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
