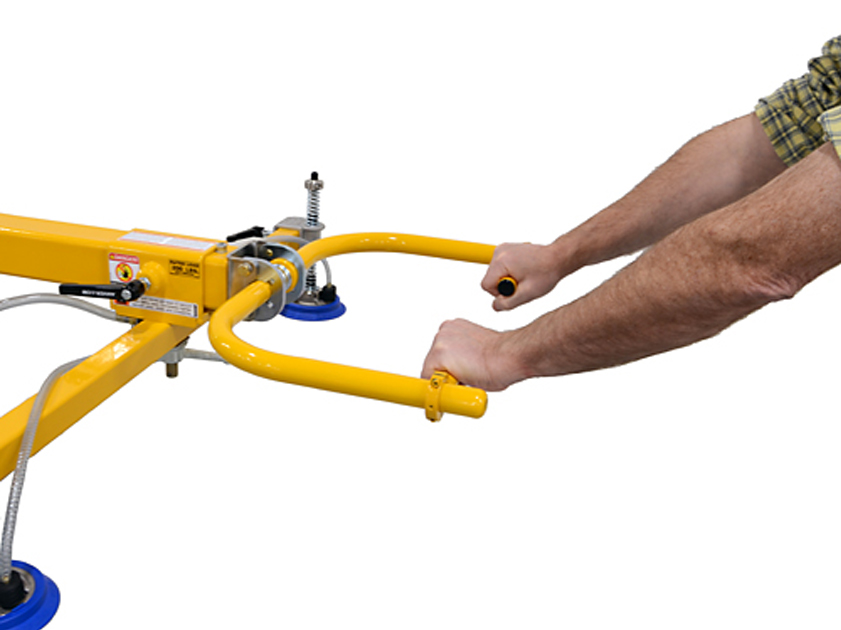

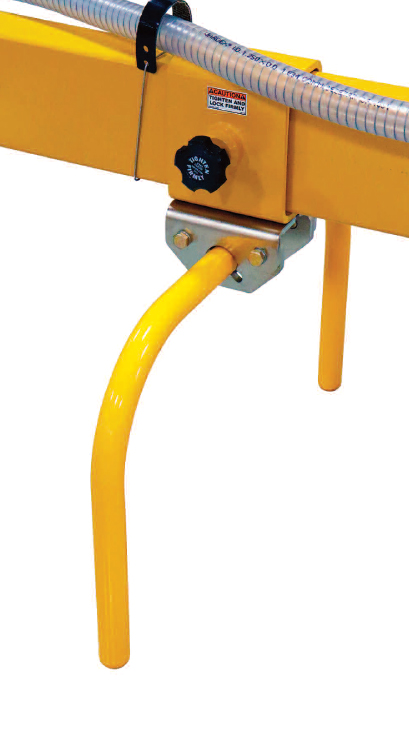

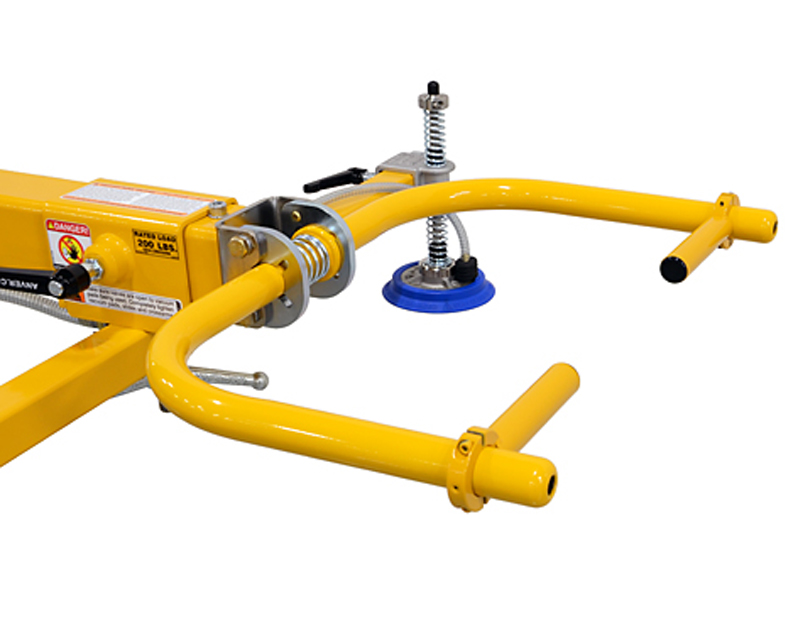

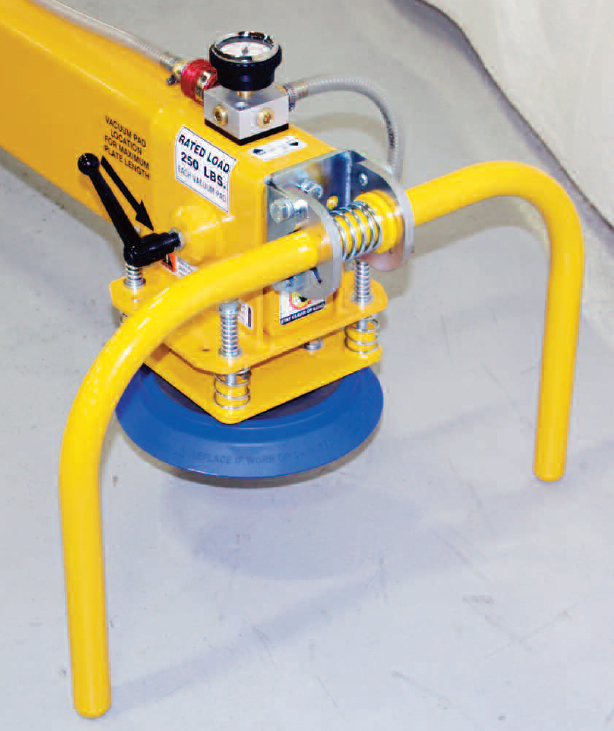

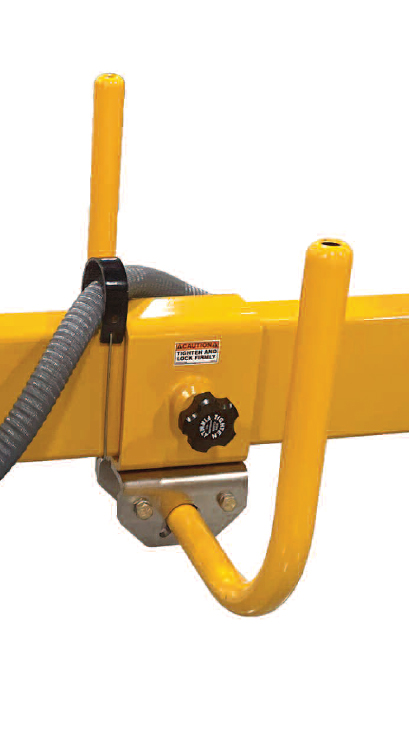

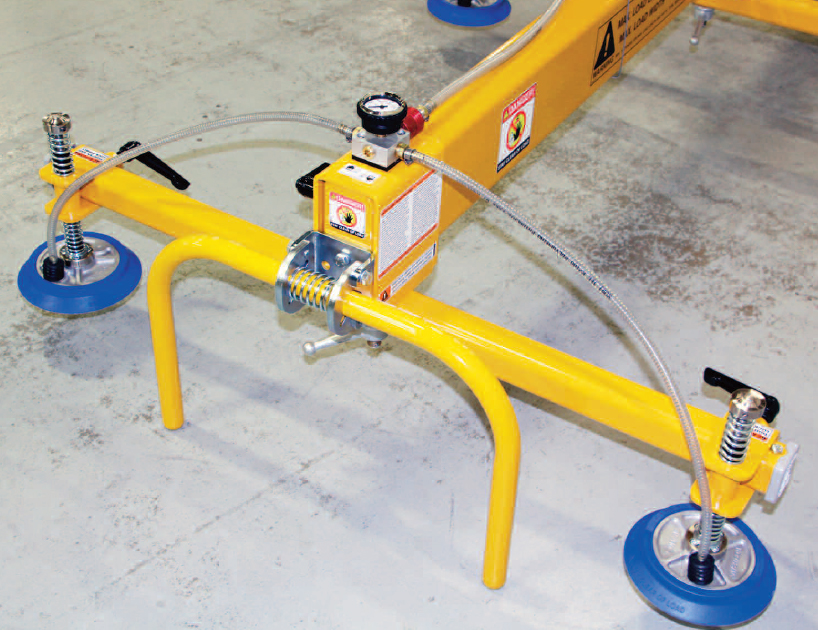

Anver Parking Stands for Small Vacuum Lifters

Anver Parking Stands for Small Vacuum Lifters
  • Adjustable in Four Positions: Pull Sideways, Turn, Let Go and it Locks in Position.
  • Spring-Loaded Locking Mechanism Snaps into Position for One-sided, Quick Adjustments
  • ANVER Spring-Loaded, Adjustable, Four Position Parking Stands keep the vacuum sealing rings clean and debris-free. PLUS, in their other positions, they can be used to locate the lifter precisely over the load. They feature rugged steel construction.
  • ISO 9001 Certified

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Part Number For Use With Mounting Pair Weight lb (kg)
PS-150-3X3 3″ sq beams up to 120″ long with cap. up to 2200 lbs Bolt on 16 (7)
PS-150-3X6 3×6″ beams up to 190″ long with cap. up to 3000 lbs Bolt on 15 (6.8)
72000173 bolt on to generators up to 2200 lbs Bolt on 22 (10)
72000174 bolt on to generators up to 4400 lbs Bolt on 22 (10)
72000038 3×6″ beams up to 190″ long with cap. 2000 lbs to 4400 lbs Bolt on 32 (15)
72000040 3×6″ beams up to 231″ long with cap. 2000 lbs to 4600 lbs Adjustable slide mounted 59 (27)
72000041 5×7″ beams up to 325″ long with cap. 3000 lbs to 6000 lbs Adjustable slide mounted 68 (31)
72000128 5×7″ beams up to 250″ long with cap. 4000 lbs to 9600 lbs Bolt on 37 (17)

Parking Stands Assemblies are based on lifter configuration, pad suspension, and load type. Any variations of the criteria may result in a part number change at the discretion of Anver Corporation.



Part Number Description For Use With Mounting
PS-150-PH Positioning Handles, Bolt-On, Pair,
ø1.25″ (ø31.75 mm) x 5″ (127 mm) long short handles (21301149)		 PS-150 Series Parking Stands Bolt on



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
