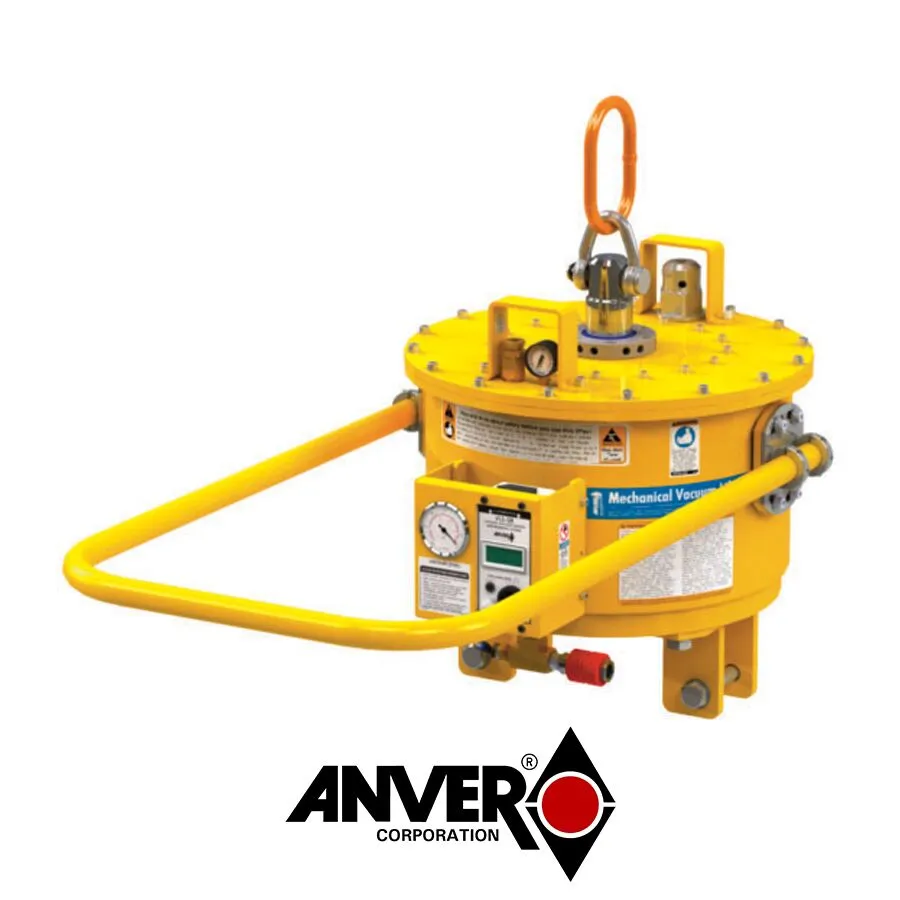

Anver M150M & M250M Mechanical Vacuum Generators

Anver M150M & M250M Mechanical Vacuum Generators
  • ANVER Self-Powered Mechanical Vacuum Lifters can be outfitted with a variety of Interchangeable Vacuum Pads and Vacuum Attachments for a wide range of material handling applications.
  • Various single and multiple pad configurations can be installed on most of our standard vacuum generators.
  • ISO 9001 Certified

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Generator Model M150M M150M-3X6 M250M M250M-5X7 M250M-5X7H
Max. Rated Load lb (kg) 2200 (998) 2200 (998) 4400 (1996) 4400 (1996) 4400 (1996)
Fits Tube Size in (mm) 3×3 (76×76) 3×6 (76×152) 3×6 (76×152) 5×7 (127×178) 5×7 (127×178)
Unit Weight lb (kg) 168 (76) 170 (77) 302 (137) 305 (138) 320 (145)
A Max. Headroom in (mm) 30 (762) 31 (787) 32.25 (819) 32.75 (832) 32.75 (832)
B Min. Height in (mm) 17.1 (434) 18.6 (472) 20 (508) 20 (508) 20 (508)
C Handlebar Width in (mm) 16.1 (409) 16.1 (409) 22 (559) 22 (559) 22 (559)
D Handlebar Length in (mm) 34 (864) 34 (864) 34.75 (883) 34.75 (883) 34.75 (883)
E Hardware Centers in (mm) 9 (229) 9 (229) 12 (305) 12 (305) 12 (305)
F Mounting Hardware in (mm) Provided Provided Provided Provided Provided
G Master Chain Link Dim. in (mm) 3.25×5.38 (83×137) 3.25×5.38 (83×137) 3.25×5.38 (83×137) 3.25×5.38 (83×137) 3.25×5.38 (83×137)
H Handlebar Height in (mm) 9.13 (232) 10.5 (267) 11.5 (292) 11.5 (292) 11.5 (292)

  • Instant attach and release is provided via the hoist up and down movement.
    The attach and release alternates each lift cycle for fast, efficient handling. Mechanical
    vacuum lifters increase the speed and efficiency of the horizontal handling of sheet
    and plate, panels, and all types of nonporous materials.
  • Simple to operate. One person can control the entire operation. No oil fumes or noise
    pollution.
  • Easy to Maintain. Only the highest quality components and superior construction are
    used with few moving parts.
  • Extremely Safe. Load cannot be released until it is set down on a surface.
  • ANVER Mechanical Vacuum Lifters are suitable for 100% duty cycle 24 hour a day operation. They never overheat or burn out.
  • Easy to Maintain and Keep Operating in Heavy Production Environments.
  • ANVER Mechanical Vacuum Generators comply fully with and meet the standards of
    US ANSI ASME Standard B30.20 for below-the-hook lifting devices, as well as complying with OSHA and European requirements.
  • Vacuum gauge
  • Battery operated VLS, vacuum loss sensor and warning system
  • Front, adjustable pivoting handle-bar
  • Two shut-off valves with locking push-button, 3/8″ NPT port
    (front/back)

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
