Anver Eight Pad Lifting Frames – 2,100lb (953 kg) Capacity

Anver Eight Pad Lifting Frames - 2,100lb (953 kg) Capacity
  • ANVER’S Standard Vacuum Lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials.
  • Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.
  • ISO 9001 Certified

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Lifting Frame Number L210M8-110-4/44
Rated Load Capacity [lbs (kg)] 2100 (953)
Unit Weight [lbs (kg)] 250 (113)

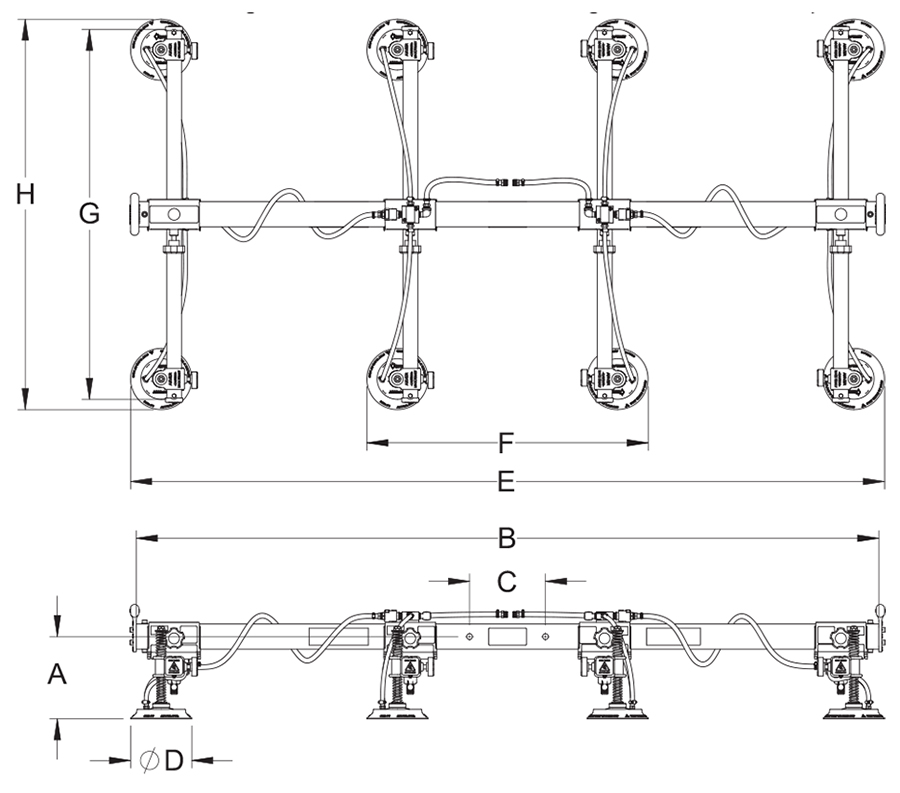

A Lifting Frame Headroom [in. (mm)] 10 (254)
B Spreader Beam Length [in. (mm)] 112 (2845)
C Hardware Mounting Centers [in. (mm)] 9 (229)
D Pad Diameter [in. (mm)] 9.13 (232)
E Outer Pad Distances Maximum [in. (mm)] 117 (2972)
E Outer Pad Distances Minimum [in. (mm)] 53 (1346)
F Minimum Inner Pad Distance [in. (mm)] 34 (864)
G Crossarm Length [in. (mm)] 44 (1118)
H Outer Pad Distances Maximum [in. (mm)] 50 (1270)
H Outer Pad Distances Minimum [in. (mm)] 23 (584)
Maximum Sheet Size [ft (M)] 12 x 6 (3.7 x 1.8)
Seal Number SSR-92

Crossarms and vacuum pads in maximum position to handle maximum plate size.
Crossarms can pivot to near parallel with spreader beam to handle narrow plates.
Vacuum pads and crossarms fully adjustable to handle short and narrow plates.
Inner crossarms and vacuum pads (1/2 capacity) for use with smaller plates. Outer pads provided with shut-off valves.

Basic features on ANVER’s Standard Horizontal Vacuum Lifters include: vacuum leakage
sensor and warning system; attach/release slide valve with safety lock; and locking hand
knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER Vacuum Lifters comply fully with and meet the standards of US ANSI ASME Standard
B30.20 for below-the-hook lifting devices, as well as complying with OSHA and most
European requirements.

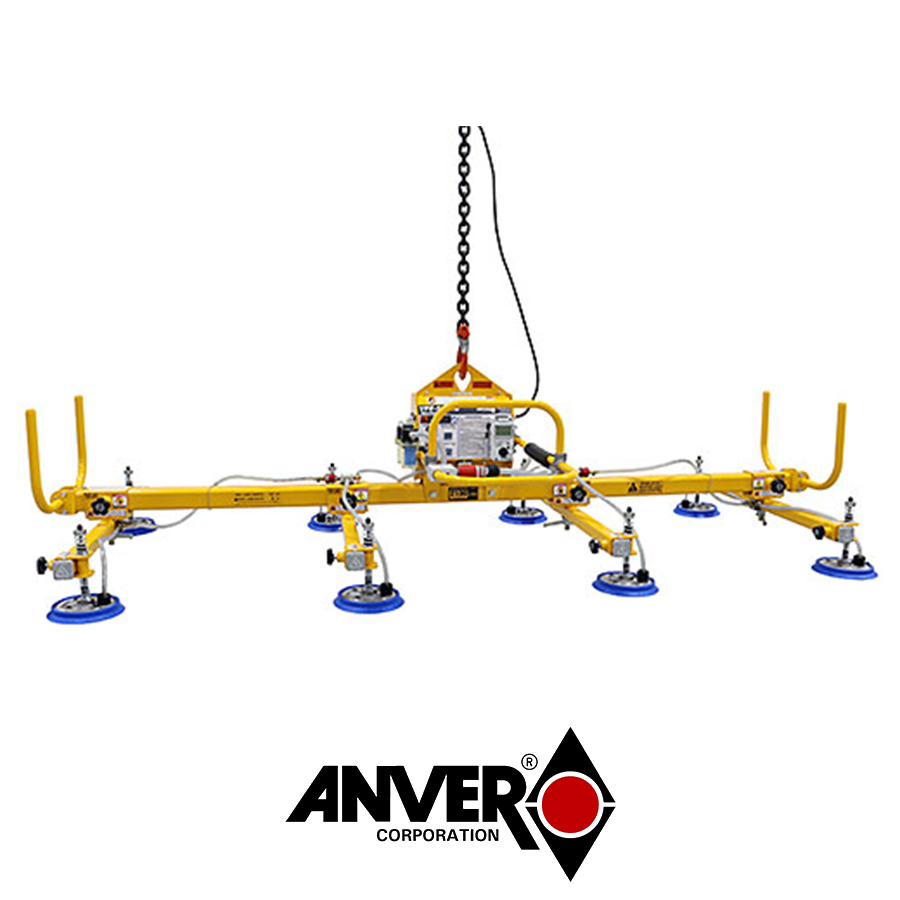

The L210M8-110-4/44 eight-pad lifting frame is ideal for handling carbon steel and stainless
steel sheets and plates with a maximum capacity of 2100 lb (953 kg). The type of
vacuum lifter – Mechanical, Air, or Electric – paired with the number of pads used will depend
on your application needs. Foam pads are not available for mechanical vacuum generators.
