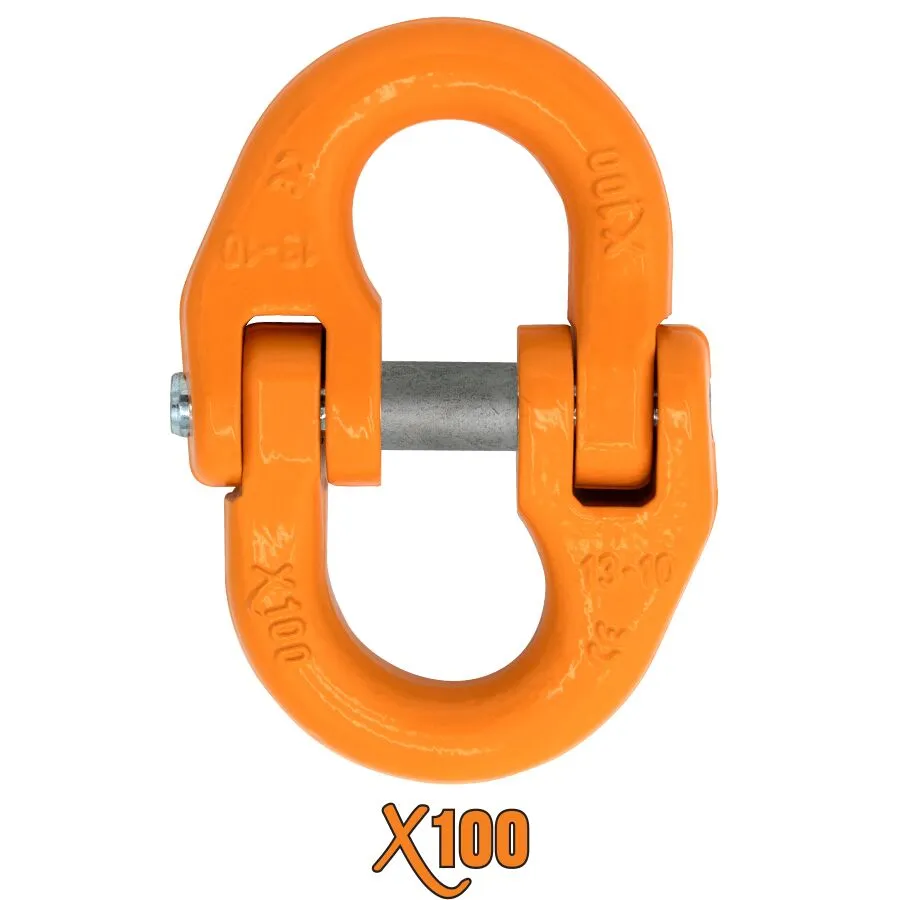

APPROVED FOR OVERHEAD LIFTING
• Approved for overhead lifting
• Forged alloy steel
• Quenched & tempered
• Powder coated HI-VIZ safety orange
• 100% proof tested at 2 times the working load limit
• 100% mag-particle crack detection
• Approved for overhead lifting
• Forged alloy steel
• Quenched & tempered
• Powder coated HI-VIZ safety orange
• 100% proof tested at 2 times the working load limit
• 100% mag-particle crack detection
| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT (LBS.) | |||
|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||
| XCL281 | 9/32″ | 0.30” | 0.55” | 1.75” | 2.36” | 4,300 | 0.50 |
| XCL312 | 5/16” | 0.40” | 0.84” | 2.42” | 3.25” | 5,700 | 0.75 |
| XCL375 | 3/8″ | 0.50” | 1.02” | 2.70” | 3.71” | 8,800 | 1.05 |
| XCL500 | 1/2” | 0.64” | 1.23” | 3.50” | 4.83” | 15,000 | 1.71 |
| XCL625 | 5/8” | 0.78” | 1.44” | 4.06” | 5.71” | 22,600 | 3.9 |
| XCL750 | 3/4” | 0.97” | 1.79” | 4.74” | 6.89” | 35,300 | 6.0 |

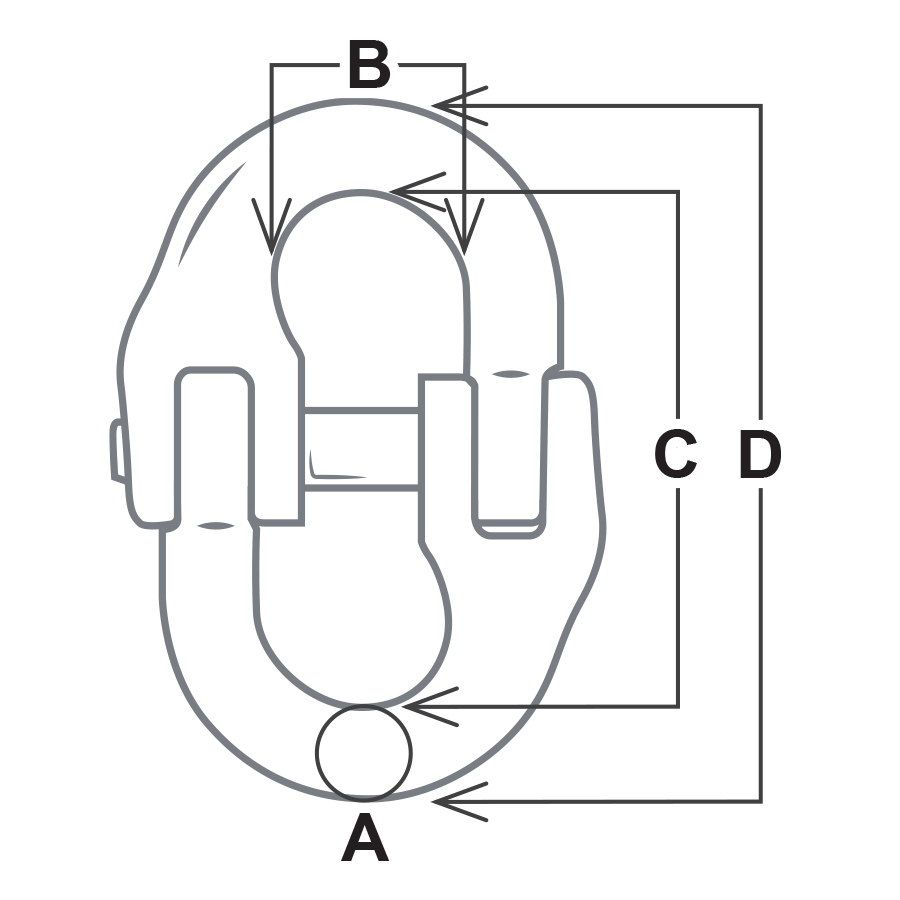

| STOCK NUMBER | DIMENSIONS | |||
|---|---|---|---|---|
| A | B | C | D | |
| XCL281 | 0.30” | 0.55” | 1.75” | 2.36” |
| XCL312 | 0.40” | 0.84” | 2.42” | 3.25” |
| XCL375 | 0.50” | 1.02” | 2.70” | 3.71” |
| XCL500 | 0.64” | 1.23” | 3.50” | 4.83” |
| XCL625 | 0.78” | 1.44” | 4.06” | 5.71” |
| XCL750 | 0.97” | 1.79” | 4.74” | 6.89” |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
