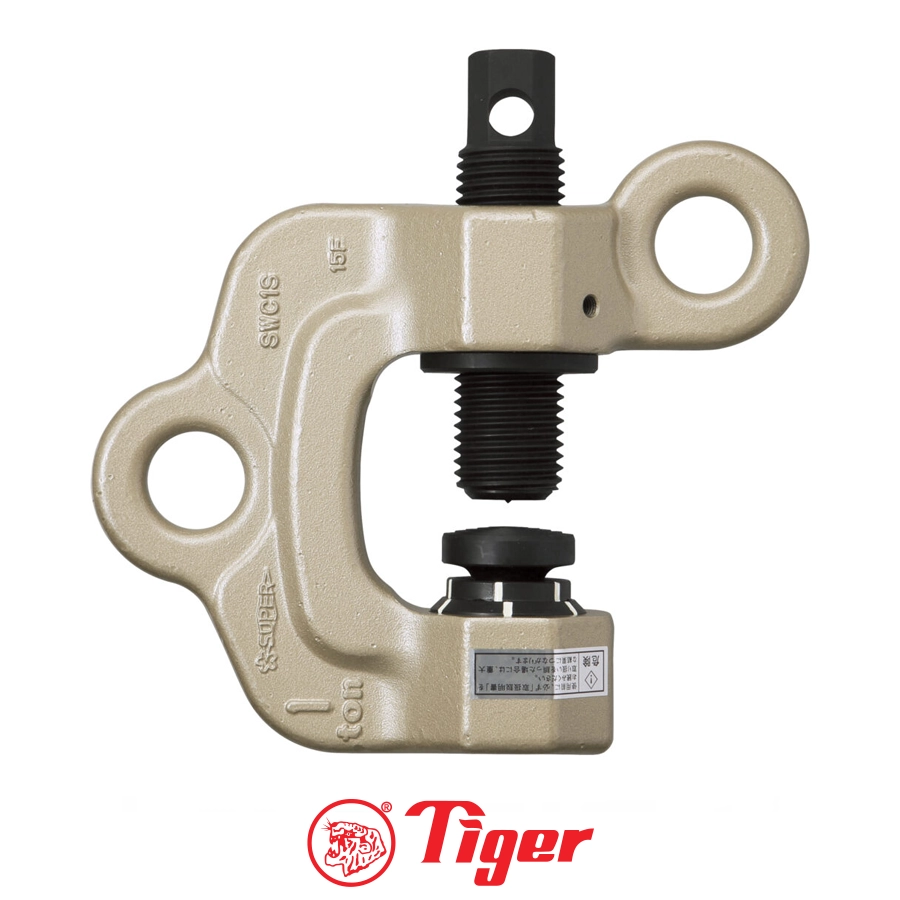

Tiger SWC-S Screw Cam Clamp

Tiger SWC-S Screw Cam Clamp

All-purpose clamp that can be used for a variety of operations such as lifting up and down, lateral pulling and turning over.

Adequacy of tightening can be visually confirmed by secure and safe structure of the twist cam.

When used in horizontal lifting, the screw is placed on top (operator’s side), so the tightening operation can be done easily (when installing underneath a beam, the tightening can be done on the operator’s side).

The tightening mechanism with a screw and a circular cam (special spring type) provides sure clamping force on a load even when the load is landed or when vibrations occur during the lifting operation.

The tightening check marks have phosphorescent (glow in the dark) paint for easy visual recognition.

Capacity (ton): 0.5 / 1 / 2

Clamp Range (mm): 0～25 / 0～40 / 0～40

Attachment: 17×21 Double Ratchet Wrench (Short Type)


EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

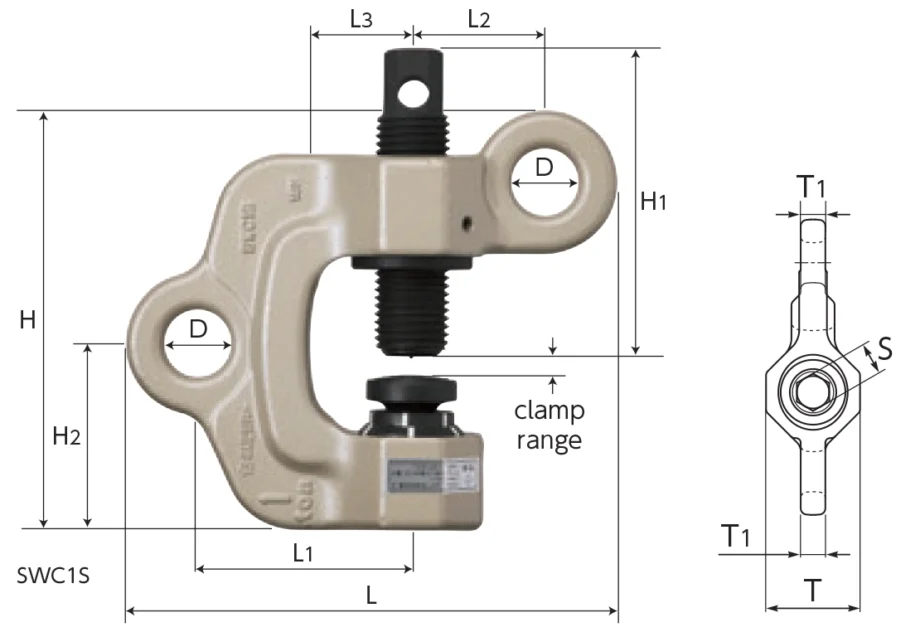

Stock Number Rated Capacity (ton) Clamp Range (in) SIZE (IN) N.W. (LB)
L L1 L2 L3 H H1 H2 D T T1 S
SWC0.5S 0.5 0.00〜0.98 5.96 2.48 1.71 1.18 5.12 3.46 2.26 0.87 1.97 0.55 0.67 4.19
SWC1S 1 0.00〜1.57 7.54 3.31 2.03 1.57 6.46 4.72 2.85 1.02 2.40 0.63 0.83 7.72
SWC2S 2 0.00〜1.57 8.82 3.70 2.44 1.57 7.24 5.08 3.11 1.26 3.03 0.71 0.83 12.79

After having checked that the check marks are aligned, operate tightening over 18.44ft・lb.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
