Elebia evo2 and evo2l Crane Hooks

Elebia evo2 and evo2l Crane Hooks

The evo2 is a crane hook designed for masterlinks, which, like the rest of our automatic crane hooks, engages and releases the load remotely, increasing safety, productivity and comfort for all lifting operations. The evo 2L shares the same features mentioned above, and in addition offers more attachment possibilities as it is optimized for slinging.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Hook Model Working Load Limit (Safety Factor 4:1) Top Link Option Approximate Weight Max. Releasable Weight
evo2 2.500 kgs. / 5,511 lbs. – 7 kgs. / 15.43 lbs. 8 kgs. / 17.64 lbs.
evo2 2.500 kgs. / 5,511 lbs. UC08 7.2 kgs. / 15.87 lbs. 8 kgs. / 17.64 lbs.
evo2 2.500 kgs. / 5,511 lbs. UMP8 7.3 kgs. / 16.09 lbs. 8 kgs. / 17.64 lbs.
evo2 2.500 kgs. / 5,511 lbs. UMS16 8.5 kgs. / 18.74 lbs. 8 kgs. / 17.64 lbs.
evo2 2.500 kgs. / 5,511 lbs. UMS18 9.5 kgs. / 20.94 lbs. 8 kgs. / 17.64 lbs.
evo2l 2.500 kgs. / 5,511 lbs. – 7 kgs. / 15.43 lbs. 8 kgs. / 17.64 lbs.
evo2l 2.500 kgs. / 5,511 lbs. UC08 7.2 kgs. / 15.87 lbs. 8 kgs. / 17.64 lbs.
evo2l 2.500 kgs. / 5,511 lbs. UMP8 7.3 kgs. / 16.09 lbs. 8 kgs. / 17.64 lbs.
evo2l 2.500 kgs. / 5,511 lbs. UMS16 8.5 kgs. / 18.74 lbs. 8 kgs. / 17.64 lbs.
evo2l 2.500 kgs. / 5,511 lbs. UMS18 9.5 kgs. / 20.94 lbs. 8 kgs. / 17.64 lbs.

Top Link Option Dimensions (mm / in)
A B C D E F G H I J K L
– 215,3 / 8.47 131,5 / 5.18 294,4 / 11.59 22 / 0.87 129 / 5.07 59 / 2.32 32 / 1.25 27,1 / 1.06 21,5 / 0.84 11 / 0.43 – / – – / –
UC08 215,3 / 8.47 131,5 / 5.18 294,4 / 11.59 22 / 0.87 129 / 5.07 59 / 2.32 32 / 1.25 27,1 / 1.06 21,5 / 0.84 11 / 0.43 55 / 2.16 23,5 / 0.92
UMP8 215,3 / 8.47 131,5 / 5.18 294,4 / 11.59 22 / 0.87 129 / 5.07 59 / 2.32 32 / 1.25 27,1 / 1.06 21,5 / 0.84 11 / 0.43 111 / 4.37 – / –
UMS16 215,3 / 8.47 131,5 / 5.18 294,4 / 11.59 22 / 0.87 129 / 5.07 59 / 2.32 32 / 1.25 27,1 / 1.06 21,5 / 0.84 11 / 0.43 161 / 6.34 – / –
UMS18 215,3 / 8.47 131,5 / 5.18 294,4 / 11.59 22 / 0.87 129 / 5.07 59 / 2.32 32 / 1.25 27,1 / 1.06 21,5 / 0.84 11 / 0.43 178 / 7 – / –

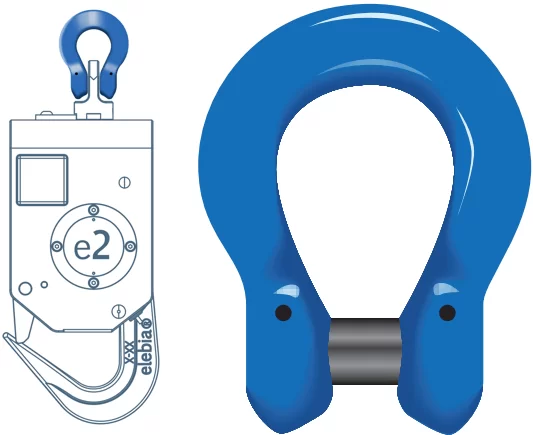

evo2 Omega Shackle: UC08

Alloy Steel, Grade 10, Quenched and Tempered
Safety Factor: MBL = 4xWLL
Finish: Painted Blue
Certification: 2.1 / 2.2 / 3.1 / MPIb / DGUV

mm in
a 21 0.82
b 10 0.39
c 9 0.35
d 34 1.33
e 24 0.94
f 72 2.83
g 16 0.62
h 58 2.28
i 32 1.25
j 8 0.31

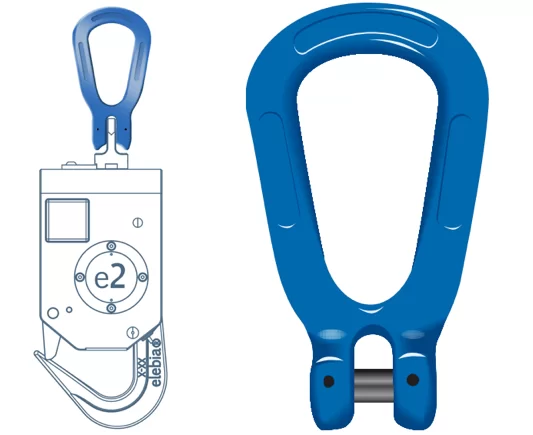

evo2 Pear Shackle: UMP8

Alloy Steel, Grade 10, Quenched and Tempered
Safety Factor: MBL = 4xWLL
Finish: Painted Blue
Certification: 2.1 / 2.2 / 3.1 / MPIb

  mm in
a  88 3.46
b 10 0.39
c 9 0.35
d 70 2.75
e 40 1.57
f 121 4.76
g
69
 2.71

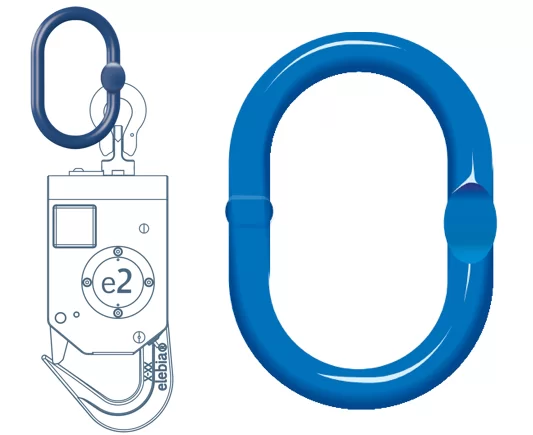

evo2 Omega Shackle + Masterlink 3.15: UCO8 + UMS16

Alloy Steel, Grade 10, Quenched and Tempered
Safety Factor: MBL = 4xWLL
Finish: Painted Blue
Certification: 2.1 / 2.2 / 3.1 / MPIb

  mm in
a 16 0.62
b 120 4.72
c 70 2.75



evo2 Omega Shackle + Masterlink 5.4: UCO8 + UMS18

Alloy Steel, Grade 10, Quenched and Tempered
Safety Factor: MBL = 4xWLL
Finish: Painted Blue
Certification: 2.1 / 2.2 / 3.1 / MPIb

  mm in
a 18 0.70
b 135 5.31
c 75 2.95

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
