Elebia evo5 Crane Hooks

Elebia evo5 Crane Hooks

The evo range was designed to enhance safety and increase productivity. It is designed under a fail-safe principle. Most importantly, this hook CAN NOT drop a suspended load. This is a feature of all our designs, geometrically fail-safe, without any sensors or electric components.

Hook Model Working Load Limit (Safety Factor 4:1) Top Link Option Approximate Weight Max. Releasable Weight
evo5 5.000 kgs. / 11,023 lbs. 26 kgs. / 57.32 lbs. 15-30 kgs. / 33.07-66.13 lbs.
evo5 5.000 kgs. / 11,023 lbs. B10 31 kgs. / 68.34 lbs. 15-30 kgs. / 33.07-66.13 lbs.
evo5 5.000 kgs. / 11,023 lbs. B20 38 kgs. / 83.77 lbs. 15-30 kgs. / 33.07-66.13 lbs.
evo5 5.000 kgs. / 11,023 lbs. L5 15-30 kgs. / 33.07-66.13 lbs.

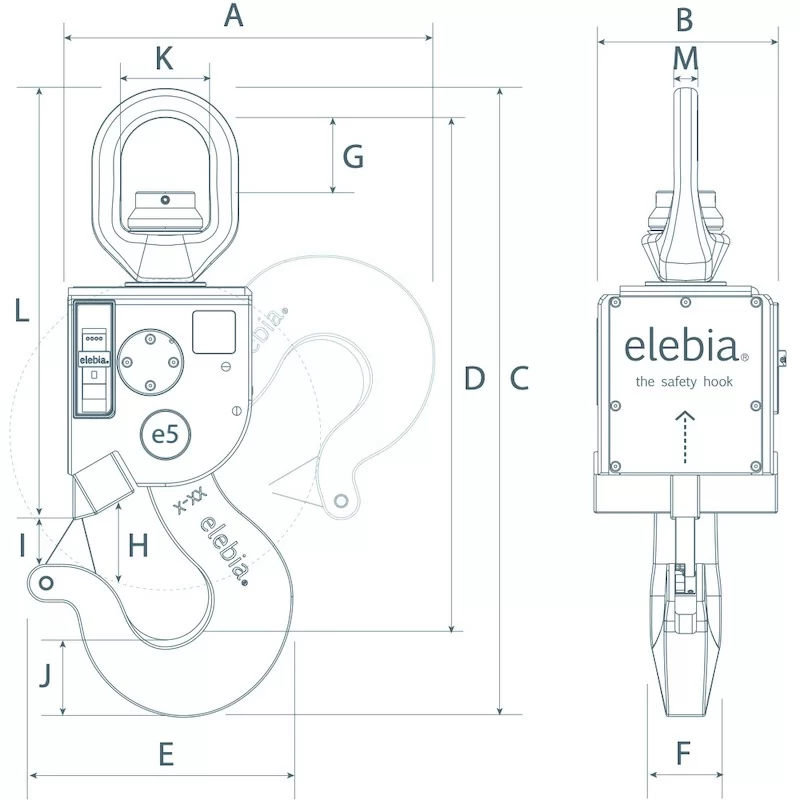

Top Link Option Dimensions (mm / in)
A B C D E F G H I J K L M
277 / 10.91 170 / 6.69 469 / 18.46 409 / 16.10 194 / 7.64 43 / 1.70 49 / 1.93 57,6 / 2.26 25 / 0.98 41 / 1.61 58 / 2.28 350 / 13.78 15 / 0.59
B10 277 / 10.91 170 / 6.69 519,8 / 20.46 451,3 / 17.76 194 / 7.64 43 / 1.70 68 / 2.68 57,6 / 2.26 25 / 0.98 41 / 1.61 82 / 3.23 400,4 / 15.76 22 / 0.87
B20 277 / 10.91 170 / 6.69 598,9 / 23.58 519,5 / 20.45 194 / 7.64 43 / 1.70 105 / 4.13 57,6 / 2.26 25 / 0.98 41 / 1.61 115 / 4.53 480 / 18.87 29 / 1.14
L5 277 / 10.91 170 / 6.69 Custom Custom 194 / 7.64 43 / 1.70 Custom 57,6 / 2.26 25 / 0.98 41 / 1.61 Custom Custom Custom

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
