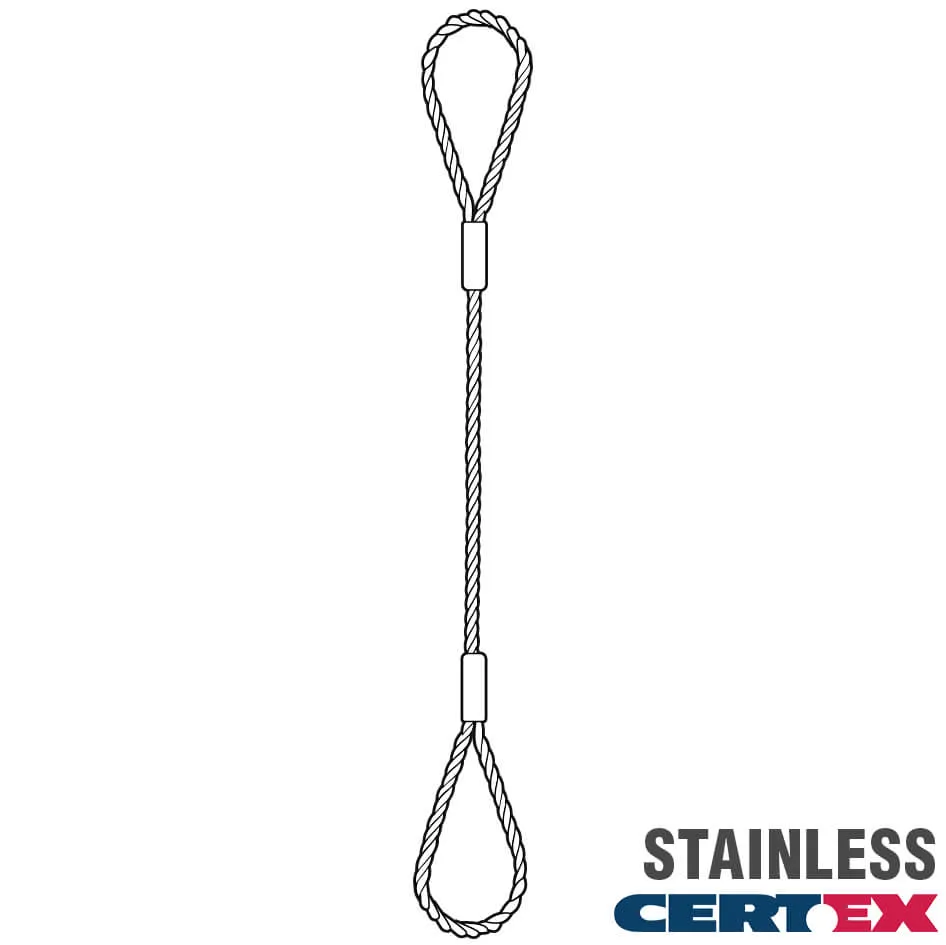

Vertical,Choker, and Vertical Basket Hitch Ratings in the chart below.
| CERTEX Cat. Ref. No. Type 302 | CERTEX Cat. Ref. No. Type 304 | ROPE DIAMETER (INCHES) | VERTICAL | CHOKER | VERTICAL BASKET |
|---|---|---|---|---|---|
| CX02-0087 | CX02-0107 | 1/4 | 0.61 | 0.38 | 1.0 |
| CX02-0088 | CX02-0108 | 5/16 | 0.86 | 0.58 | 1.6 |
| CX02-0089 | CX02-0109 | 3/8 | 1.1 | 0.82 | 2.2 |
| CX02-0090 | CX02-0110 | 7/16 | 1.5 | 1.1 | 3.1 |
| CX02-0091 | CX02-0111 | 1/2 | 2.2 | 1.6 | 4.3 |
| CX02-0092 | CX02-0112 | 9/16 | 2.7 | 2.0 | 5.4 |
| CX02-0093 | CX02-0113 | 5/8 | 3.3 | 2.5 | 6.7 |
| CX02-0094 | CX02-0114 | 3/4 | 4.7 | 3.5 | 9.4 |
| CX02-0095 | CX02-0115 | 7/8 | 6.3 | 4.7 | 13 |
| CX02-0096 | CX02-0116 | 1 | 8.1 | 6.0 | 16 |
| CX02-0097 | CX02-0117 | 1 1/8 | 10 | 7.4 | 20 |
| CX02-0098 | CX02-0118 | 1 1/4 | 12 | 9.1 | 24 |
| CX02-0099 | CX02-0119 | 1 3/8 | 14 | 11 | 28 |
| CX02-0100 | CX02-0120 | 1 1/2 | 17 | 13 | 33 |
| CX02-0101 | CX02-0121 | 1 5/8 | 20 | 15 | 40 |
| CX02-0102 | CX02-0122 | 1 3/4 | 22 | 17 | 45 |
| CX02-0103 | CX02-0123 | 1 7/8 | 25 | 19 | 51 |
| CX02-0104 | CX02-0124 | 2 | 28 | 21 | 57 |
| CX02-0105 | CX02-0125 | 2 1/8 | 32 | 23 | 63 |
| CX02-0106 | CX02-0126 | 2 1/4 | 35 | 25 | 69 |
RATED CAPACITIES BASKET HITCH BASED ON D/d RATIO OF 25
RATED CAPACITIES BASED ON PIN DIAMETER NO LARGER THAN NATURAL EYE WIDTH OR LESS THAN THE NOMINAL SLING DIAMETER
RATED CAPACITIES BASED ON DESIGN FACTOR OF 5
HORIZONTAL SLING ANGLES LESS THAN 30 DEGREES SHALL NOT BE USED
Rated Capacities shown apply only to 6×19 and 6×37 classification wire rope.
