Campbell GX Plate Clamp, 1/16″- 1″ Grip, 3 ton WLL

Campbell GX Plate Clamp, 1/16
  • Features Drop-Forged and Heat Treated Body and Components
  • Can Be Used for Both Vertical and Horizontal to Vertical Lifting Through 180°
  • Exclusive Feature is a Patented Wear Indicator System. When Any of the Cam’S Straight Line, Convex Teeth Are Flattened Between Unique Wear Indicator Grooves, It is Time to Change the Cam.
  • Note: The Pad and Cam Should Be Replaced at the Same Time
  • Clamps Are 100% Proof Tested and Certificate of Test Supplied with Each Clamp
  • Minimum WLL of at Least 10% of the Maximum WLL

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
STOCK NUMBER DESCRIPTION WEIGHT/PIECE (LBS.) WORKING LOAD LIMIT (METRIC TON)
CAMPBELL FORGE 642-3010 3 TON GX CLAMP 17.00 3

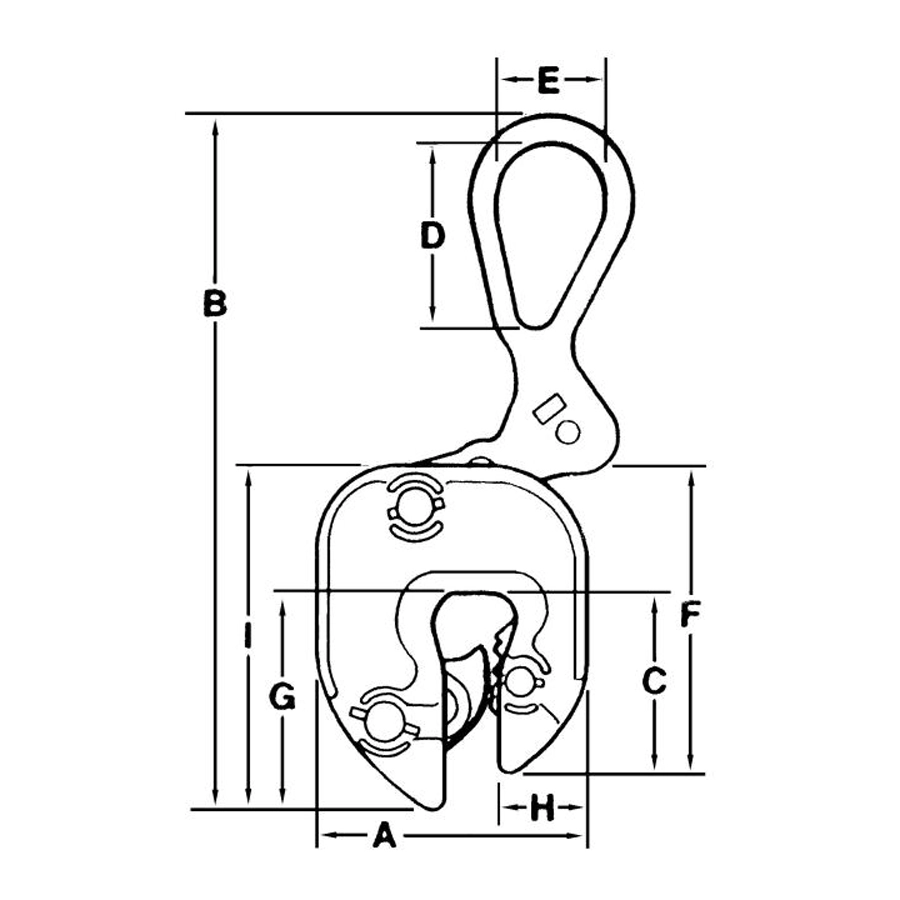

STOCK NUMBER DIMENSIONS (IN)
A B C D E F G H I
CAMPBELL FORGE 6 14 3-9/16 3-13/16 3 6-3/4 4-7/16 2 7-5/8

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
