Connects Synthetic Web and Synthetic Round Slings to conventional Crosby hardware including:
• 320N Eye Hook
• Additional Crosby Grade 8 Fittings
• Master Links
• Rings
• Shackles

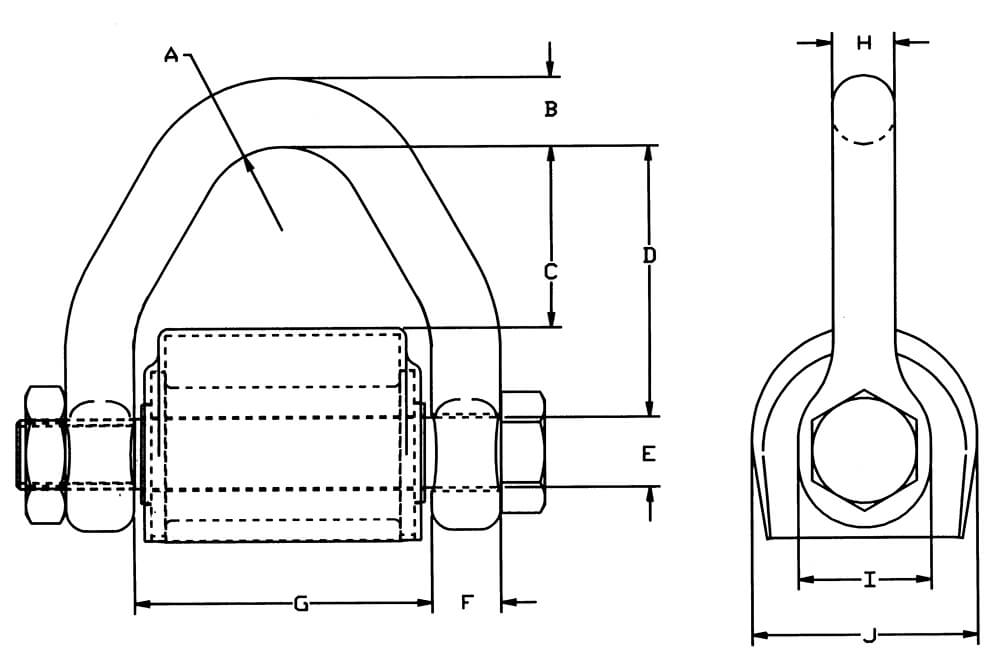

| Round Sling Size (No.) | Web Slings* | S-280 Working Load Limit† (tons) | CERTEX Cat. Ref. No. | Crosby S-280 Stock No. | Weight Each (lbs.) | Dimensions (in.) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Webbing Width (in.) | Eye Width (in.) | Ply | A | B | C | D | E | F | G | H | I | J | |||||
| 1 & 2 | 2 | 2 | 2 | 3-1/4 | CX07-0346 | 1021681 | 1.5 | 0.75 | 0.62 | 1.63 | 2.44 | 0.63 | 0.62 | 2.69 | 0.56 | 1.19 | 2.02 |
| 3 | 3 | 1.5 | 2 | 4-1/2 | CX07-0347 | 1021690 | 1.9 | 0.75 | 0.69 | 1.10 | 2.01 | 0.75 | 0.69 | 2.19 | 0.60 | 1.38 | 2.34 |
| 4 | 4 | 2 | 2 | 6-1/4 | CX07-0348 | 1021700 | 2.9 | 0.75 | 0.81 | 1.66 | 2.56 | 0.88 | 0.75 | 2.69 | 0.69 | 1.62 | 2.46 |
| 5 & 6 | 6 | 3 | 2 | 8-1/2 | CX07-0349 | 1021709 | 5.1 | 1.00 | 0.94 | 2.47 | 3.50 | 1.00 | 0.88 | 3.69 | 0.88 | 1.88 | 2.84 |
* Type III (Eye & Eye), Class 7, 2-Ply
† NOTE: Maximum Proof Load is 2-1/2 times the Working Load Limit. Minimum Ultimate strength is 5 times the Working Load Limit.
WARNING: A falling load may cause serious injury or death. Read, understand and follow all instructions and chart information before using web connector. Before use, tighten bolt first, then tighten nut.
• Makes a field assembled bridle quick and easy.
• No cotter pin to snag sling material.
• Durable Vinyl cover that:
• Protects sling at eye.
• Keeps slings positioned correctly on spool.
• Increased radius of spool gives wider sling bearing
surface resulting in an increased area for load
distribution, thus:
• Increasing Synthetic Sling efficiency by at least 15% as compared to standard anchor and chain shackle bows and conventional eye hooks. This allows 100% of the sling’s rated Working Load Limit to be achieved.
• Allowing better load distribution on internal fibers.
• All Alloy construction.
• Design Factor of 5 to 1.
• Replacement kit for spool and web cover available.
• Designed for use with Type III (Eye & Eye), Class 7, 2 ply webbing & Synthetic Round Slings. Also accommodates single ply and endless slings.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
