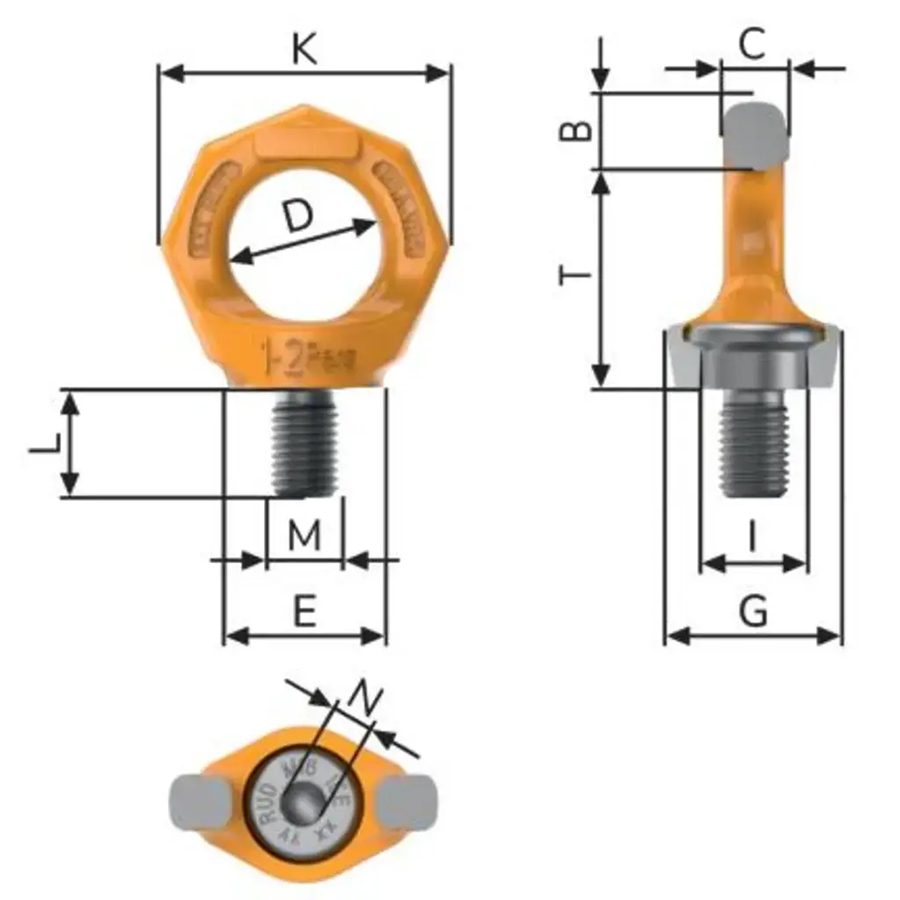

| Type | WLL (Persons) | Weight (kg/unit) | Dimensions (mm) | M | N (IN) | ||||||||
| T | B | C | D | E | G | I | K | L | |||||
| PSA-VRS-STARPOINT 1/2″-13UNC | 1 | 0.2 | 42 | 13 | 10 | 30 | 30 | 34 | 19.8 | 56 | 18 | 1/2″ 13UNC | 5/16″ |
| PSA-VRS-STARPOINT 5/8″-11UNC | 1-2 | 0.32 | 49 | 15 | 15 | 35 | 35 | 40 | 23.5 | 65 | 24 | 5/8″-11UNC | 3/8″ |
| PSA-VRS-STARPOINT 3/4″-10UNC | 1-2 | 0.56 | 58 | 18 | 17 | 40 | 42 | 54 | 29.3 | 75 | 30 | 3/4″-10UNC | 1/2″ |

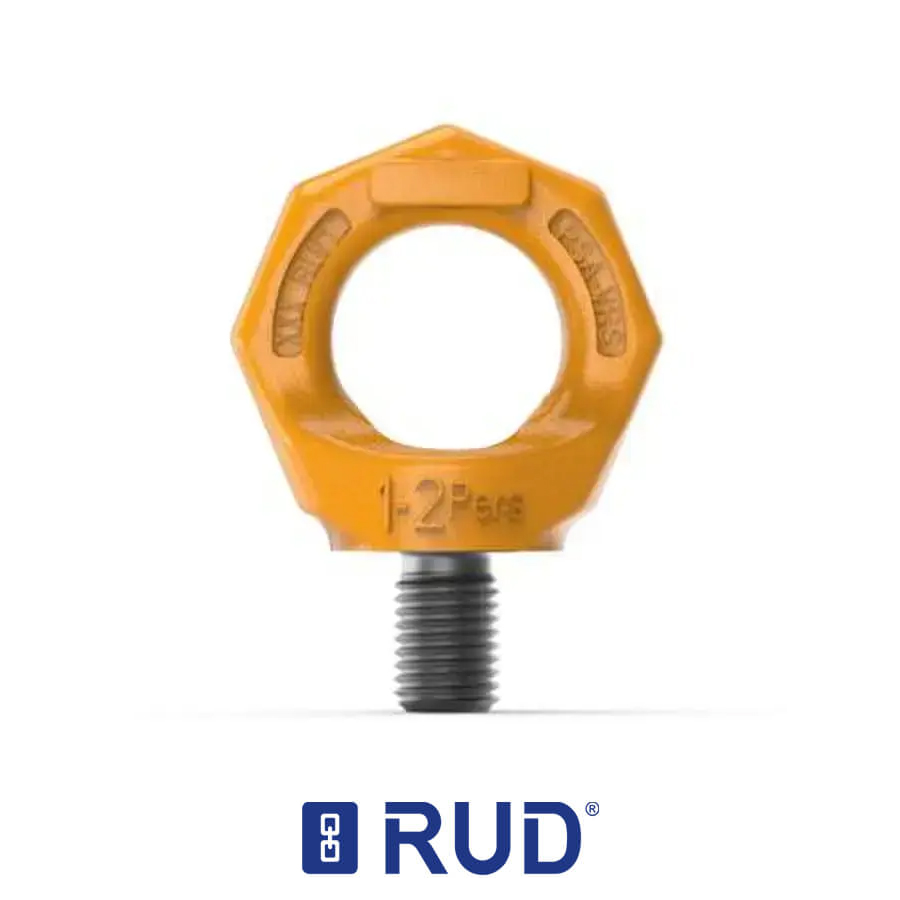

PSA-Fall arrest anchor points are no lifting points in a conventional sense. They are used as anchor points for personal fall arrest systems (PSA) acc. to EN 363:2008. After installation, harnesses can be attached into them. These anchor points can also be permanently installed, f.e. at a building to allow to attach fall arrest safety harnesses.
These products are tested by a notified institution of DGUV (Deutsche Gesetzliche Unfallversicherung) with the evidence of the in OSHA 1926.502:2001/01 paragraph (d)(15) and DIN EN 50308:2005 chapter 4.5 for lifting points required forces. They are corresponding to a “anchor point” according to European edict 2016/425 and the DIN 795:2012-10 resp. DIN CEN / TS 16415:2013-4 and they are marked with the number of load bearing persons (=1 or 2 persons).
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
