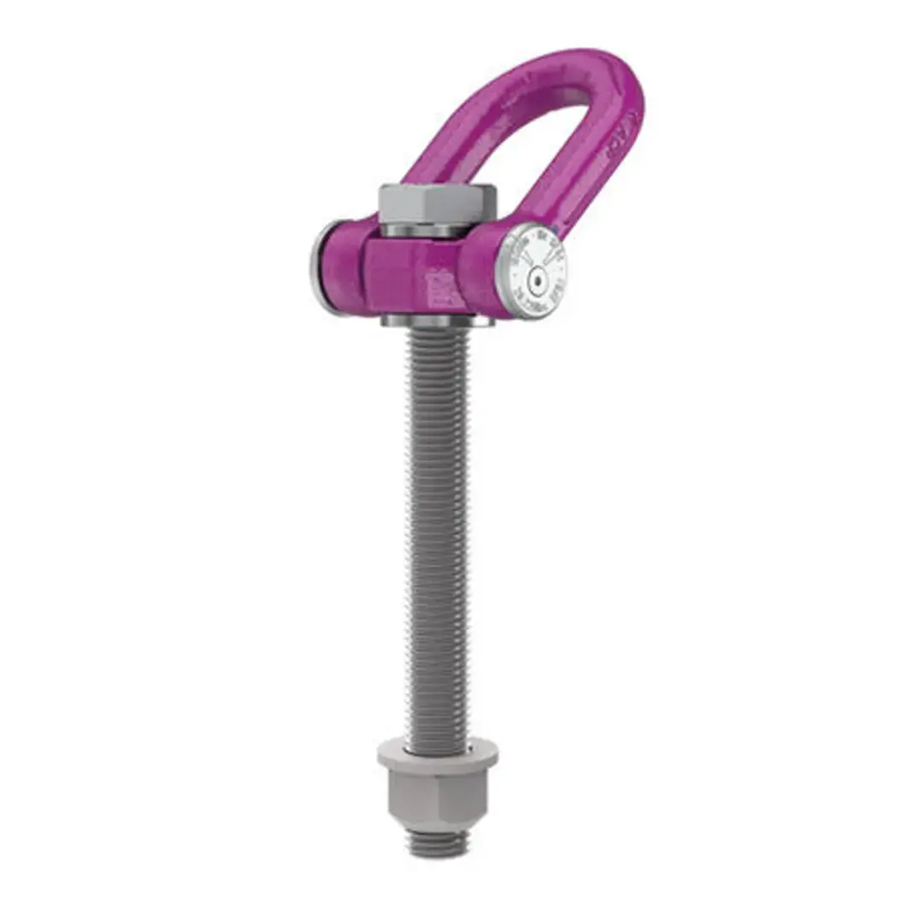

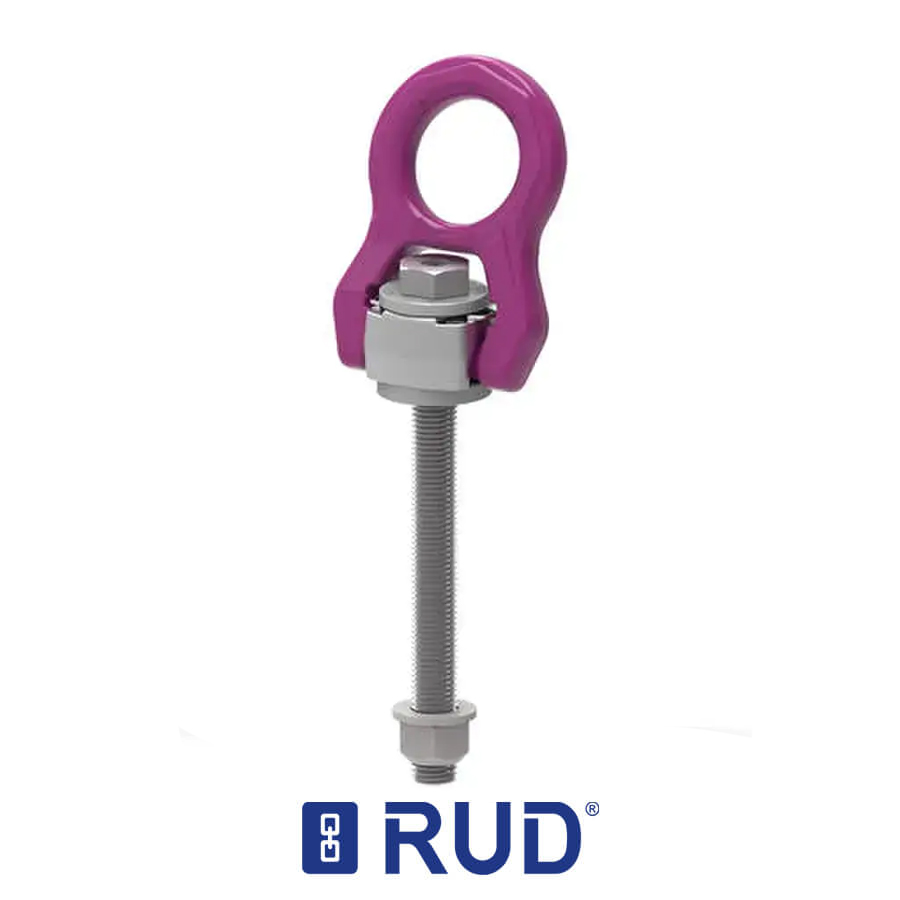

RUD ACP-TURNADO: Metric Thread, Max Length, Locknut & Washer

RUD ACP-TURNADO: Metric Thread, Max Length, Locknut & Washer

Product Features:

  • Innovative spring mechanism – prevents the lift bail from stopping with transverse load
  • Swivel joint in the lifting ring axis
  • Wear lenses for checking discard criteria
  • Integrated RFID transponder to make checks easier
  • Safety factors 4:1 and 5:1
  • Meets and exceeds the requirements of the American standard ASME B30.26

EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

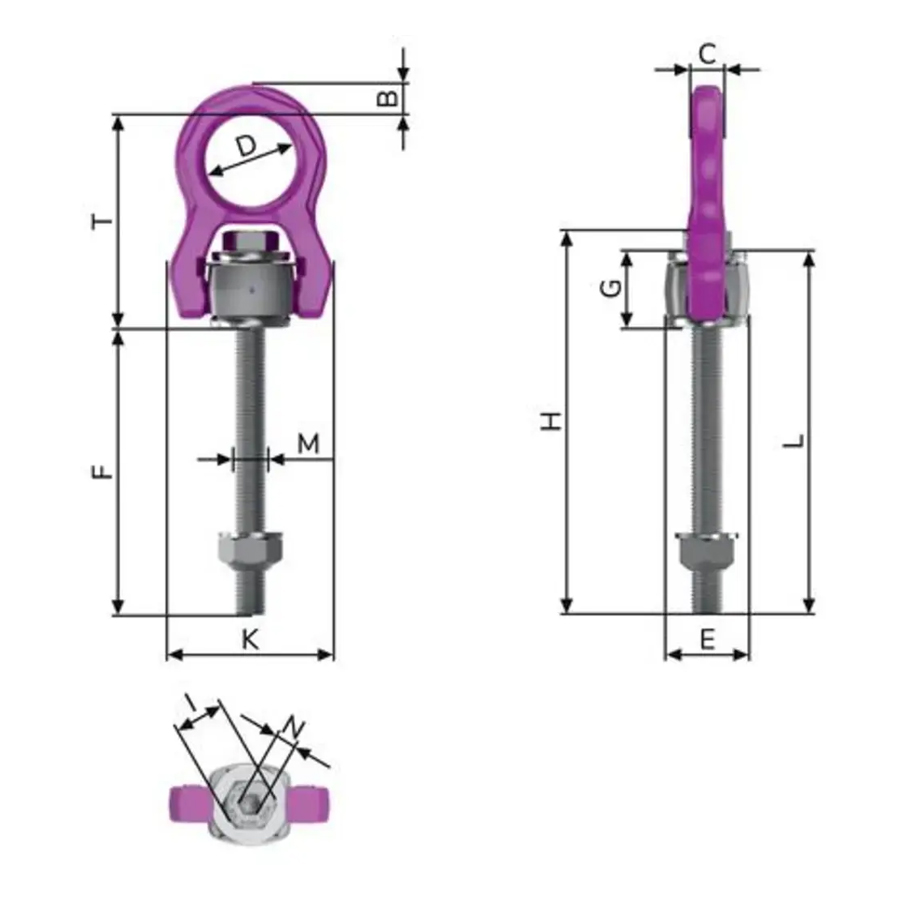

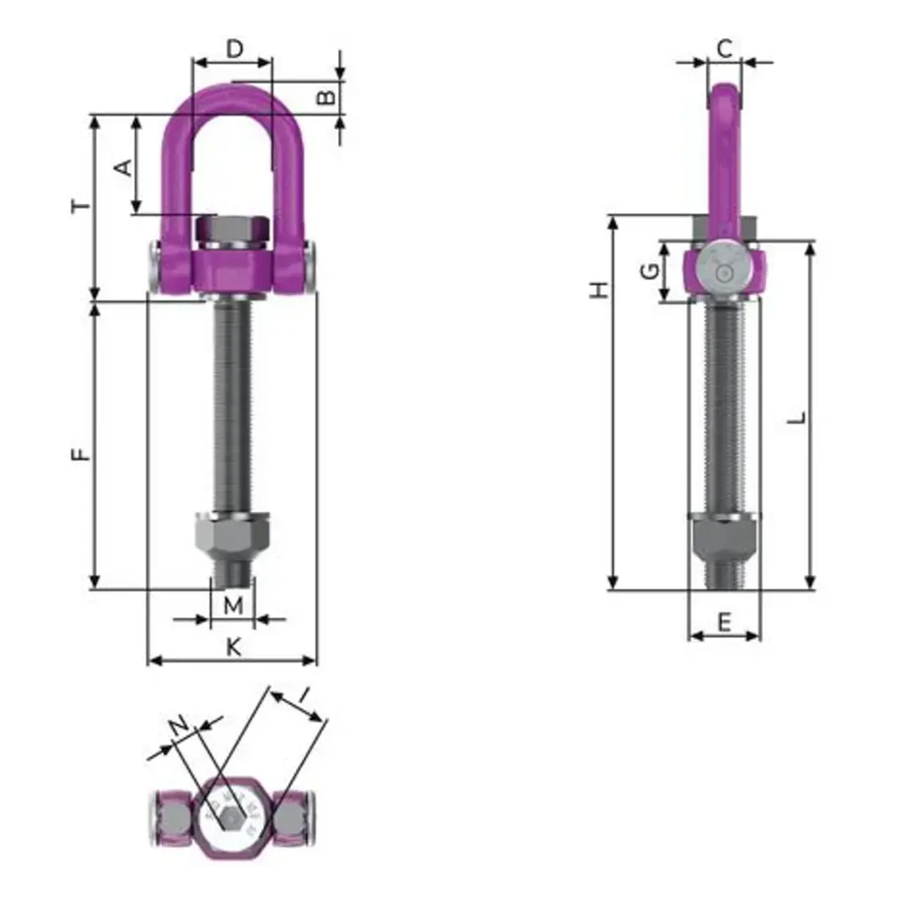

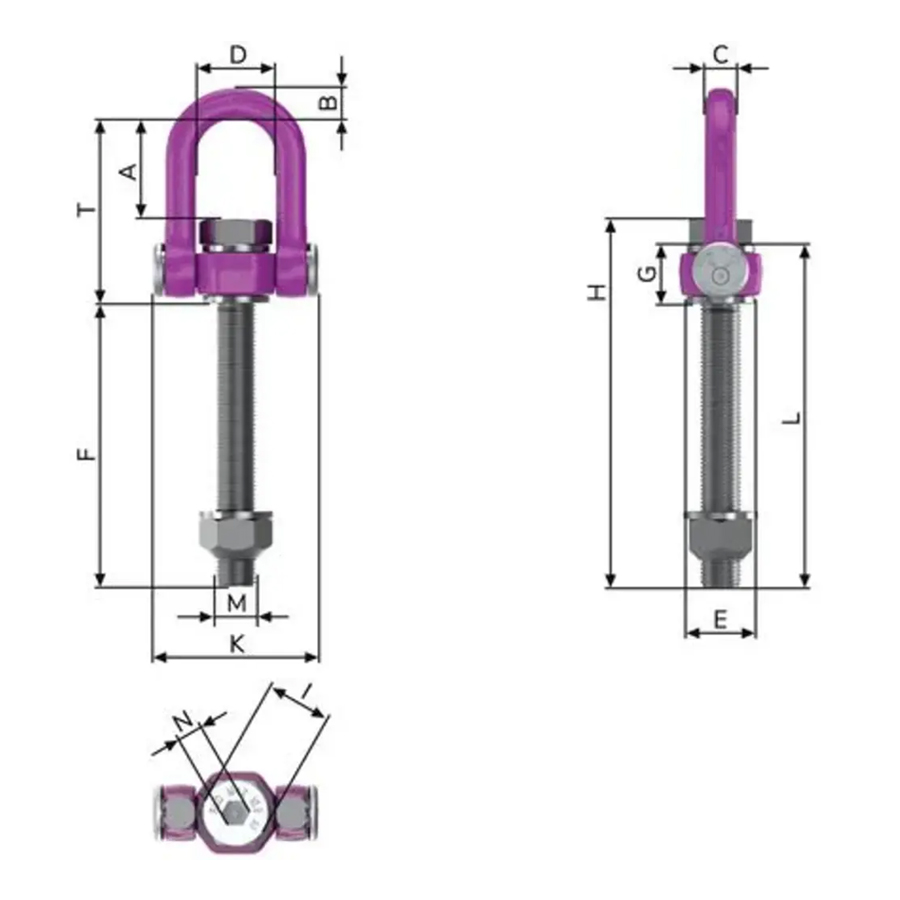

Model Number WLL (tons B (mm) C (mm) D (mm) E (mm) F Max (mm) F Min (mm) G (mm) H Max (mm) H Min (mm) I (mm) K (mm) L Max (mm) L Min (mm) M N (mm) Pitch T (mm In Stock Price
8600632 M12 1.35 11 10.5 38 30 117 12 28 153 55 19 58 145 40 M12 8 83 ❌ $
8600634 M16 2.5 14 14 50 40 149 16 36 195 68 24 76 185 52 M16 10 107 ✔ $
8600636 M20 4 17 17 50 45 186 20 43.5 242 82 30 89 230 63 M20 12 118 ✔ $
8600638 M24 6.3 23 23 66 60 210 24 55 280 104 36 121 265 79 M24 14 154 ✔ $
8600640 M30 8 29 27 75 75 271 30 68.5 359 129 46 148 340 98 M30 17 183 ✔ $
8600642 0 32 32 82 70 240 36 60 323 128 55 168 300 105 M36 22 189 ❌ $
8600644 0 32 32 82 70 290 42 60 373 136 65 168 350 113 M42 24 189 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
