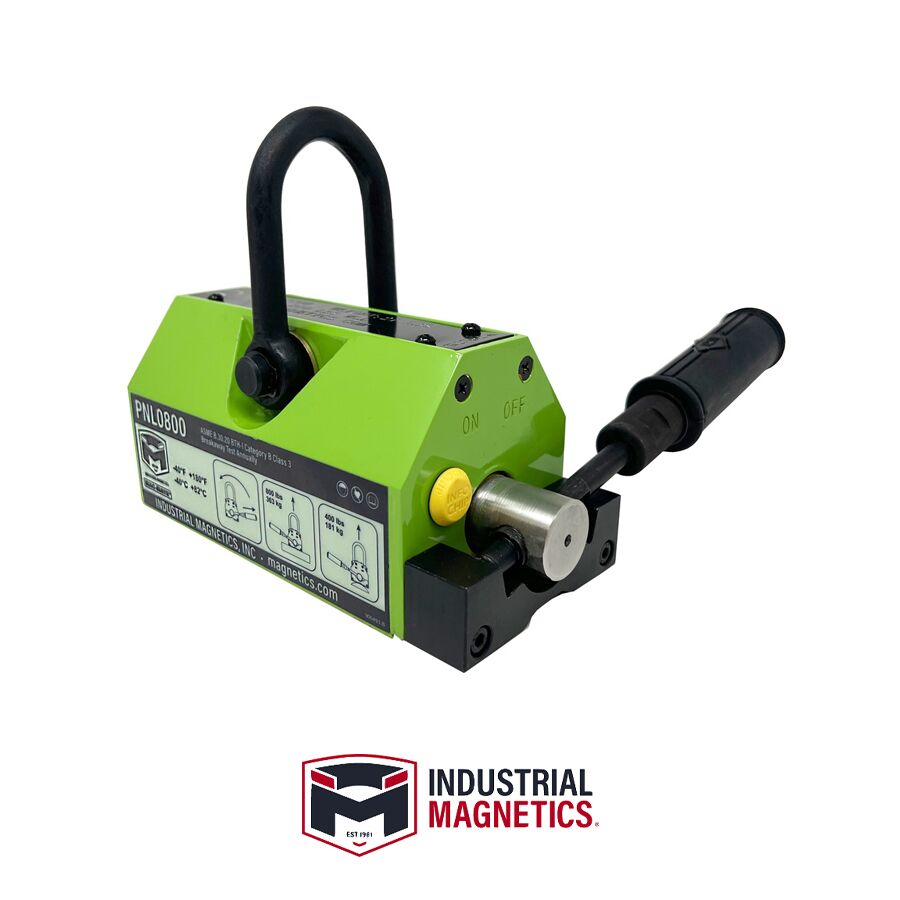

Powerlift® Magnet, 800 LB Permanent Magnet

Powerlift® Magnet, 800 LB Permanent Magnet

These compact yet powerful rare earth PowerLift® lift magnets can be used on flat or round surfaces and contain an internal release on/off device that does not contact or damage the surface of the part being lifted. Permanent magnetic lifts eliminate the fear of dropping the load being lifted due to power failures.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

CERTEX Cat. Ref. No. HEIGHT (IN) LENGTH (IN) WIDTH (IN) WEIGHT (LBS) WLL (LBS)
PNL0800 8.88 7.88 3.63 21 800
  • On/Off Permanent Rare Earth Magnet
  • Handle Locks in Both On and Off Position
  • Lifts Flat or Round Loads
  • Easy Internal Manual Release Does Not Contact the Load
  • Heat Resistant Up To 180°F (82°C)
  • 3:1 Design Factor
  • Conforms To ASME B30.20 Standard

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
