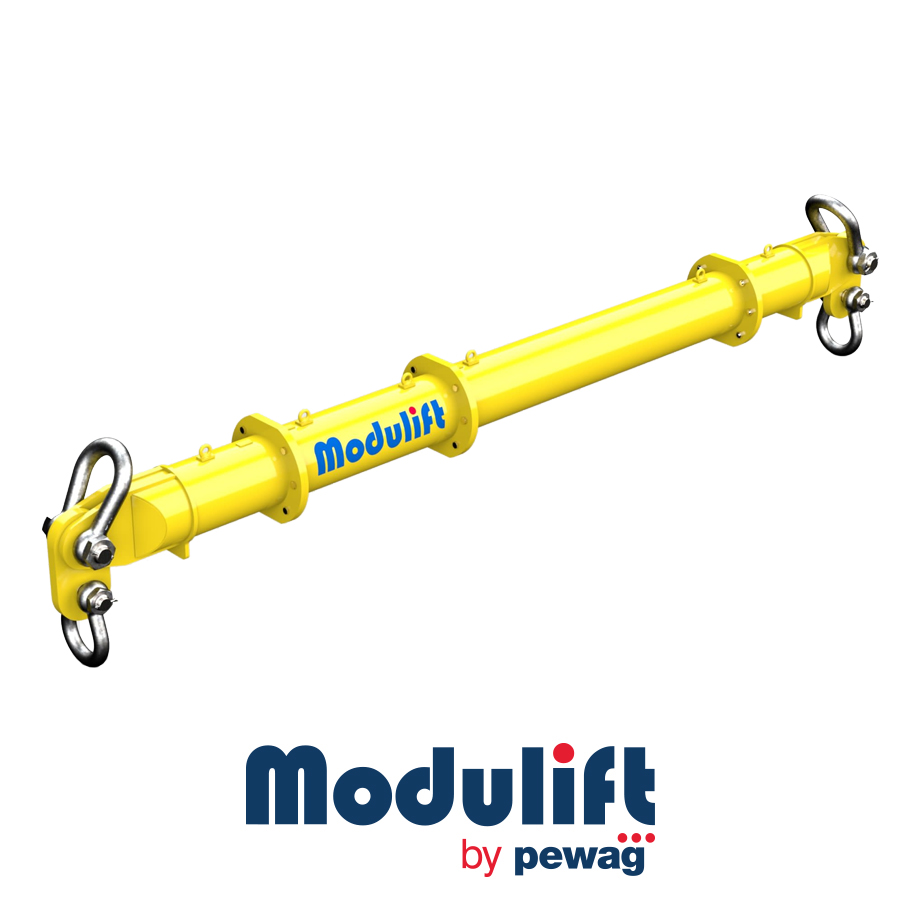

Modulift MOD 110SH Spreader Beam

Modulift MOD 110SH Spreader Beam

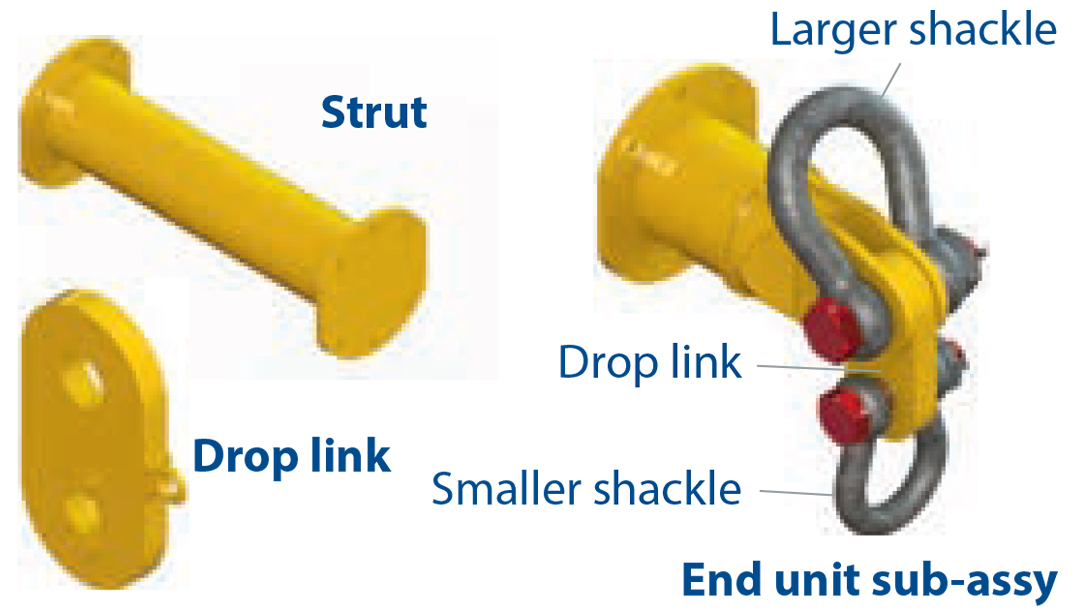

The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and Drop Links,
with intermediate struts that can be bolted into the assembly to achieve dierent spans.
MOD 110SH has an assembled span ranging from 6ft to 55ft in 1ft increments.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

  • Rated at 240 tonnes SWL at 28ft span
    (60° BSA). See Load Table for SWL at longer spans.
  • ‘Base to Sling’ angle, α, 45 degrees or more.
  • End Units & Drop Links are rated at 120 tonnes WLL each (240 tonnes combined capacity).
  • Bolt tightening torque: 110 Pound-Foot. Spanner size required: 30mm.
  • Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.

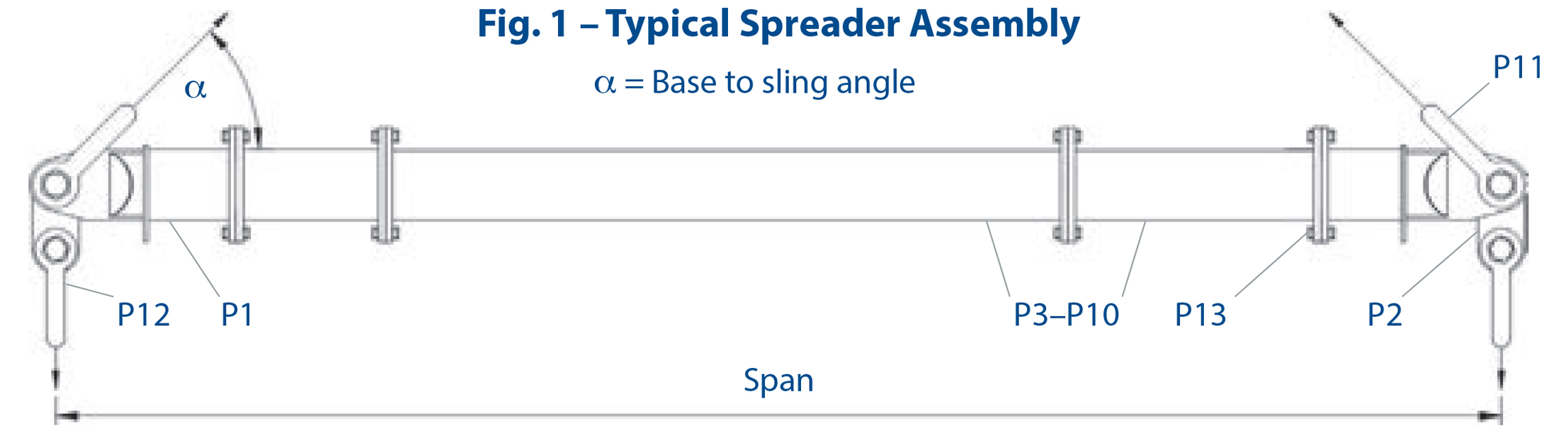

Part Ref. Description Weight/item
P1 End Unit 408 lbs
P2 Drop Link 198 lbs
P3 20ft Strut 1425 lbs
P4 12ft Strut 910 lbs
P5 10ft Strut 780 lbs
P6 8ft Strut 645 lbs
P7 6ft Strut 520 lbs
P8 4ft Strut 398 lbs
P9 2ft Strut 258 lbs
P10 1ft Strut 198 lbs
P11 150t Shackle 353 lbs
P12 120t Shackle 243 lbs
P13 M20 x 65 Grade 8.8 HT Bolts, Nuts & Washers

● Personnel using this system should be suitably trained, competent and have a clear
understanding of Safe Slinging procedures.
● The use of Modulift equipment must be in accordance with the procedures laid down in
‘ASME B30.20 – 2013’.
● Never exceed stated SWL – Adhere to SWL in Table 2 for particular sling angle used.
● The top sling length is critical to the safe use of the spreader – Adhere to Table 2.
● Ensure Drop Links hang down, and smaller shackles are connected to bottom hole of Drop Link.
● Do not under any circumstances ha

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
