• Not DOT compliant for use on the Interstate Highway System.

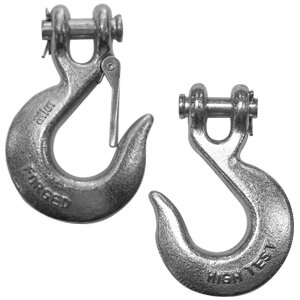

| SIZE | STOCK NUMBER CLEAR ZINC PLATED | WORKING LOAD LIMIT | WEIGHT/PIECE |
|---|---|---|---|
| 1/4″ | HTCS250WL | 1,950 lbs. | .55 lbs. |
| 5/16″ | HTCS312WL | 2,875 lbs. | .86 lbs. |
| 3/8″ | HTCS375WL | 4,000 lbs. | 1.40 lbs. |
| 1/2″ | HTCS500WL | 6,500 lbs. | 2.75 lbs. |
| 5/8″ | HTCS625WL | 9,250 lbs. | 4.75 lbs. |
Note: These hooks are not suitable for overhead lifting.
| SIZE | STOCK NUMBER CLEAR ZINC PLATED |
WORKING LOAD LIMIT | WEIGHT/PIECE |
|---|---|---|---|
| 1/4″ | HTCS250 | 1,950 lbs. | .55 lbs. |
| 5/16″ | HTCS312 | 2,875 lbs. | .86 lbs. |
| 3/8″ | HTCS375 | 4,000 lbs. | 1.40 lbs. |
| 1/2″ | HTCS500 | 6,500 lbs. | 2.75 lbs. |
| 5/8″ | HTCS625 | 9,250 lbs. | 4.75 lbs. |
Note: These hooks are not suitable for overhead lifting.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
Proof-Loaded to 2X the Working Load Limit Designed for Applications Where the Swivel Lifting Ring is Frequently Installed and Removed Installation Lugs Used to Easily Tighten or Loosen the Unit with a Striking Tool or Pipe Markings: X100 Brand, WLL, Conformity, Size...
The Dura-Mod® 2-Point/110-Metric Ton Spreader Beam can be configured in spreads of 6' to 59'. Order Spreader Sections, End Fittings, Drop Links, and Bolts separately to build the beam you want. Lightweight in comparison to fixed/multiple point beams Easy to transport...
The Dura-Mod® 2-Point/70-Metric Ton Spreader Beam can be configured in spreads of 3' to 45'. Order Spreader Sections, End Fittings, Drop Links, and Bolts separately to build the beam you want. Lightweight in comparison to fixed/multiple point beams Easy to transport...
The Dura-Mod® 2-Point/50 Metric Ton Spreader Beam can be configured in spreads of 3 to 41 feet. Lightweight in comparison to fixed/multiple point beams Easy to transport and store; single longest component is only 12'L Components can be reconfigured, added to or...
