First Mate — Model shown: 5PF5E2 on 5BP5 Pedestal Base and Rotational Lock Option
Lightweight, economical, easy to carry and easy to use, the First Mate Davit Crane is perfect for a wide variety of simple jobs where adjustable reach is not required.
Quick Facts
Series Models
First Mate 5PF5 Series Performance1

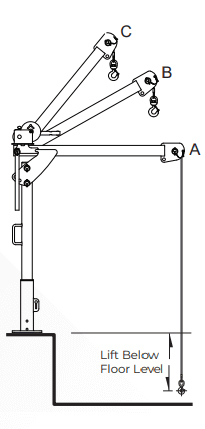

Lift Below Floor Level with Pedestal Base
| Lift Below Floor2 |
Wire Rope Diameter |
Wire Rope Length |
Winch Configurations Maximum Winch Rating |
||||||||||||||
| Minimum (C) | Maximum (A) | M1 | M2 | M3 | E2 | E4 | |||||||||||
| (ft) | (m) | (ft) | (m) | (in) | (mm) | (ft) | (m) | (lbs) | (kg) | (lbs) | (kg) | (lbs) | (kg) | (lbs) | (kg) | (lbs) | (kg) |
| 6 | 1.8 | 9 | 2.7 | 3/16″ | 5 | 20 | 6.0 | 850 | 385 | — | — | 850 | 385 | — | — | 850 | 385 |
| 14 | 4.2 | 17 | 5.1 | 3/16″ | 5 | 28 | 8.5 | 750 | 340 | — | — | 850 | 385 | — | — | 850 | 385 |
| 22 | 6.7 | 25 | 7.6 | 3/16″ | 5 | 36 | 10.9 | 660 | 299 | — | — | 850 | 385 | — | — | 850 | 385 |
| 31 | 9.4 | 34 | 10.3 | 3/16″ | 5 | 45 | 13.7 | 600 | 272 | — | — | 810 | 367 | — | — | 850 | 385 |
| 46 | 14.0 | 49 | 14.9 | 3/16″ | 5 | 60 | 18.2 | — | — | — | — | 740 | 335 | — | — | 850 | 385 |
| 61 | 18.5 | 64 | 19.5 | 3/16″ | 5 | 75 | 22.8 | — | — | — | — | 690 | 312 | — | — | 850 | 385 |
| 76 | 23.1 | 79 | 24.0 | 3/16″ | 5 | 90 | 27.4 | — | — | — | — | 640 | 290 | — | — | 850 | 385 |
| 106 | 32.3 | 109 | 33.2 | 3/16″ | 5 | 120 | 36.5 | — | — | — | — | — | — | — | — | 850 | 385 |
| 6 | 1.8 | 9 | 2.7 | 1/4″ | 6 | 20 | 6.0 | — | — | 850 | 385 | 850 | 385 | 850 | 385 | 850 | 385 |
| 14 | 4.2 | 17 | 5.1 | 1/4″ | 6 | 28 | 8.5 | — | — | 850 | 385 | 830 | 376 | 850 | 385 | 850 | 385 |
| 22 | 6.7 | 25 | 7.6 | 1/4″ | 6 | 36 | 10.9 | — | — | 850 | 385 | 740 | 335 | 850 | 385 | 850 | 385 |
| 31 | 9.4 | 34 | 10.3 | 1/4″ | 6 | 45 | 13.7 | — | — | 850 | 385 | 740 | 335 | 850 | 385 | 850 | 385 |
| 46 | 14.0 | 49 | 14.9 | 1/4″ | 6 | 60 | 18.2 | — | — | 850 | 385 | — | — | 850 | 385 | 850 | 385 |
| 61 | 18.5 | 64 | 19.5 | 1/4″ | 6 | 75 | 22.8 | — | — | 850 | 385 | — | — | 850 | 385 | 850 | 385 |
| 76 | 23.1 | 79 | 24.0 | 1/4″ | 6 | 90 | 27.4 | — | — | — | — | — | — | — | — | — | — |
| 106 | 32.3 | 109 | 33.2 | 1/4″ | 6 | 120 | 36.5 | — | — | — | — | — | — | — | — | — | — |
For longer lifts please contact factory.
1 Performance characteristics are for standards products. Non-standard products may vary from the original design. Contact Thern, Inc. for this information
2 Lift below floor level varies depending on boom position and base configuration. For longer lifts, please contact factory.

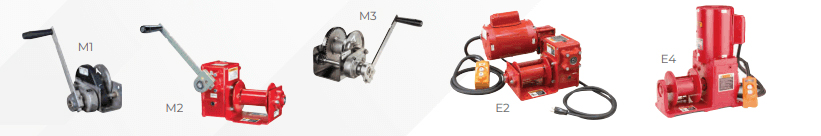

Winch Configurations
Welded Steel Construction
Crane boom, mast and base fabricated from heavy duty welded constructed structural steel pipe and tubing that limits deflection and meets ASTM standards.
Adjustable Height and Reach
Boom adjusts to three different angle positions.
Manual or Power Operation
Crane can be configured with a manual winch for short, infrequent lifts or a power winch for longer lifts or heavier loads. Choose from Thern’s spur or worm gear hand winches or power winches with 115/1/60V as well as pneumatic, hydraulic or DC Volt power operation.
Corrosion Resistant Finish
Electrostatic powder coated crane and stainless steel fasteners combine to resist corrosion in harsh environments. Other options available include: galvanized, stainless steel and epoxy finishes.
Quick-Mount Winch Bracket
A variety of Thern winches can be attached to the bracket. After a winch is attached, the bracket is easily mounted (without tools) to the crane via quick-connect pins.
Mast Cap
A cap on top of the mast helps keep weather and debris out of the mast.
360º Rotation
Replaceable bushing and nylatron flange provide smooth and easy crane rotation while under load.
Easy Assembly/Disassembly
Quick-release clevis style stainless steel pins allow for easy assembly and quick disassembly for transport or storage. No tools required.
Quick Disconnect Anchor
For quickly attaching or removing wire rope equipped with a swaged ball fitting. Allows the operator to leave the wire rope attached to the load at all times and simply remove the rope from the winch and attach to the optional wire rope keeper or cable reel.
Variety of Bases (sold separately)
Pedestal, flush, wall mount and wheel bases allow for a variety of mounting solutions and are easily installed. Standard powder coat finish on pedestal, flush and wall mounts. Wheel base features enamel finish. Other finish options available including galvanized, stainless steel and epoxy finishes.
Two-Year Warranty
Industry-leading two-year limited warranty on all our products.
| Model | Max Capacity |
Portable | Maximum Hook | Adjustable Boom |
Winches | Finishes | |||||||||||||
| Manual | Power | ||||||||||||||||||
| Yes | No | Reach | Height (Above floor) | Lift Distance (below floor) | Long Lift* (below floor) | Length | Angle | Spur | SS Spur | Worm | (AC, DC, Pneumatic, Hydraulic) | Powder Coat (Red) | Enamel Pain (Red) | Galv | 304 55 |
316 55 |
Epoxy Paint (Grey) | ||
| First Mate 500 Series 5PF5 | 850 lbs 385 kg |
 |
42 in 1066 mm |
60 in 1524 mm |
76 ft 23.1 m |
236 ft 71.6 m |
|
|
|
|
|
|
|
|
|
|
|||
*Contact factory fpr long lift ratings requirements Max capacity may vary depending on wire rope diameters
