Elephant Push Type Beam Trolleys

Elephant Push Type Beam Trolleys
  • Adjustable to fit various beam widths
  • A solid carbon steel design
  • The wheels of the trolley fit both I-Beams and H-Beams
  • Trolley wheels are parkerized for corrosion resistance
  • High quality closed bearings provide smooth traversing
  • With Anti-Drop plates
  • Suitable for operation within a -20o C to +60o C, -4o F to 140o F temperature range

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Stock Number Capacity (lbs) Capacity (mt) I-Beam Width G (in) Min. Radius of I-Beam (in) Net Weight (lbs)
PT-0.25/0.50*** 551 / 1,102 0.25 / 0.50 2.0 – 5 30.04 11.02
P-0.5 1,102 0.5 2.3 – 5.11 35.4 18
P-1 2,204 1 2.3 – 5.11 43.3 28
P-1.6 3,527 1.6 2.7 – 6.1 47.2 47
P-2 4,409 2 2.7 – 6.1 47.2 47
P-3.1 6,944 3.15 3.5 – 6.2 66.93 60
P-5 11,023 5 3.54 – 7.08 90.55 107
P-7.5 17,636 7.5 4.92 – 7.48 118.11 216
P-10 22,046 10 4.92 – 7.48 118.11 221
P-15 33,069 15 5.90 – 7.48 236.22 650
P-20 44,092 20 5.90 – 7.48 236.22 882

Special extender kits are available for large beam width applications
*If being paired with a motorized hoist, please consult with Elephant before proceeding. The brackets and connector between the side plates will change, to accommodate stresses generated by motorized hoists.
** Contact Factory for Additional Information
*** PT-0.25/0.50 Trolleys are specifically designed for the Alpha Type Electric Chain Hoist.

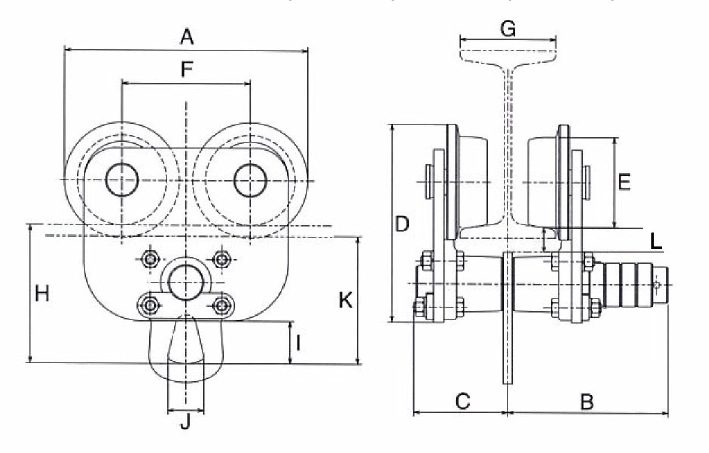

Stock Number A B C D E F H I J K L
PT-0.25/0.50*** 6.73 5.51 2.26 4.48 1.77 2.87 3.81 Ø1.18 Ø1.18 3.42 1.05
P-0.5 7.5 5 2.9 6.1 2.7 3.9 4.2 1.3 1.1 3.9 0.67
P-1 8.7 5 2.9 6.7 3.1 4.5 4.4 1.2 1.1 4 0.59
P-1.6 10.2 5.6 3.7 8.1 3.8 5.3 5.9 2 1.5 5.5 1.14
P-2 10.2 5.6 3.7 8.1 3.8 5.3 5.9 2.1 1.5 5.5 1.14
P-3.1 11.3 5.7 3.8 9.4 4.5 5.9 7.1 2.5 1.9 6.6 1.08
P-5 12.9 6.5 4.9 11.4 4.9 6.6 8.7 2.9 2.3 8.2 1.28
P-7.5 17 7 7 13 6.2 8.6 9.6 3.9 3.1 9.1 1.81
P-10 17 7 7 13 6.2 8.6 9.6 3.9 3.1 9.1 1.81
P-15 22.8 9 9 18.2 7.7 11.6 10.7 3.3 3.7 9.7 2.62
P-20 22.8 9 9 18.2 7.7 11.6 10.7 3.3 3.7 9.7 2.62

*If being paired with a motorized hoist, please consult with Elephant before proceeding. The brackets and connector between the side plates will change, to accommodate stresses generated by motorized hoists.
** Contact Factory for Additional Information
*** PT-0.25/0.50 Trolleys are specifically designed for the Alpha Type Electric Chain Hoist.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
