Dyform®-18 Rotation Resistant Wire Rope

Dyform®-18 Rotation Resistant Wire Rope

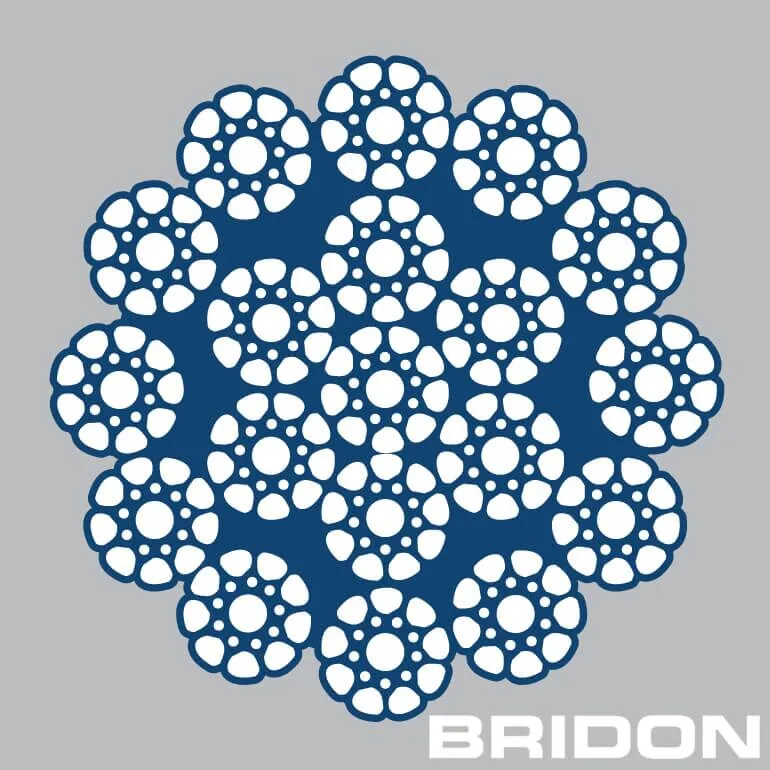

Characteristics: Compacted strands with outside and inside strands laid in opposite directions for superior rotation resistance. Can be used for multiple part lifting. Dyform-18 has up to 35% greater strength than conventional 19 x 7 EIP wire rope.

Technical Resources:

Dyform®-18 Rotation Resistant Rope
CERTEX Cat. Ref. No. Diam., in. Nominal Strength,* Tons Approx. Wt./Ft., lb.
Dyform®-18 HSLR
CX01-0319 3/8 8.3 .27
CX01-0320 7/16 11.2 .37
CX01-0321 1/2 14.6 .51
CX01-0322 9/16 19.2 .64
CX01-0323 5/8 22.7 .79
CX01-0324 3/4 32.4 1.1
CX01-0325 7/8 43.8 1.5
CX01-0326 1 57.5 2.0
CX01-0327 1 1/8 71.5 2.5
CX01-0328 1 1/4 87.9 3.1

Other sizes available on request
*Acceptance strength is not less than 2 1/2% below the nominal breaking strengths listed. Note: These strengths apply only when a test is conducted with both ends fixed. When in use, the strength of these ropes may be reduced if one end is free to rotate.

• High strength Rotation Resistant rope incorporating Dyform strands – confirmed by Bridon’s “Powercheck” testing of a sample from each production length.
• Good resistance to rotations – confirmed by Bridon’s unique “Twistcheck” type testing program.
• Superior bending fatigue life when compared with conventional multistrand ropes – confirmed by laboratory testing and extensive field experience.
• Excellent resistance to crushing and abrasion resulting from the overall compactness and robustness of the rope and the Dyform strands – recommended when multi-layer spooling is involved.
• Reduced elongation results from increased steel content and the Dyform process.
• Optional plastic coating of IWRC to further extend fatigue life, improve structural stability and resistance to corrosion.

NOT FOR AIRCRAFT USE. (“Aircraft Cable” has become an accepted industry term for small diameter 7×7 and 7×19 construction wire rope intended for industrial and marine application.) Read important warnings and information.

WARNING: Any warranties, expressed or implied, concerning the use of this product apply only to the nominal strength of new, unused wire rope. All equipment using this product must be properly used and maintained. Wire rope must be properly stored, handled, used and maintained. Most importantly, wire rope must be regularly inspected during use. Damage, abuse or improper maintenance can cause rope failure. Consult the AISI Wire Rope Users Manual, ASME or ANSI Standards, before usage. Wire rope removal criteria are based on the use of steel sheaves. If synthetic sheaves are used, consult the sheave equipment manufacturer. WARNING!

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
