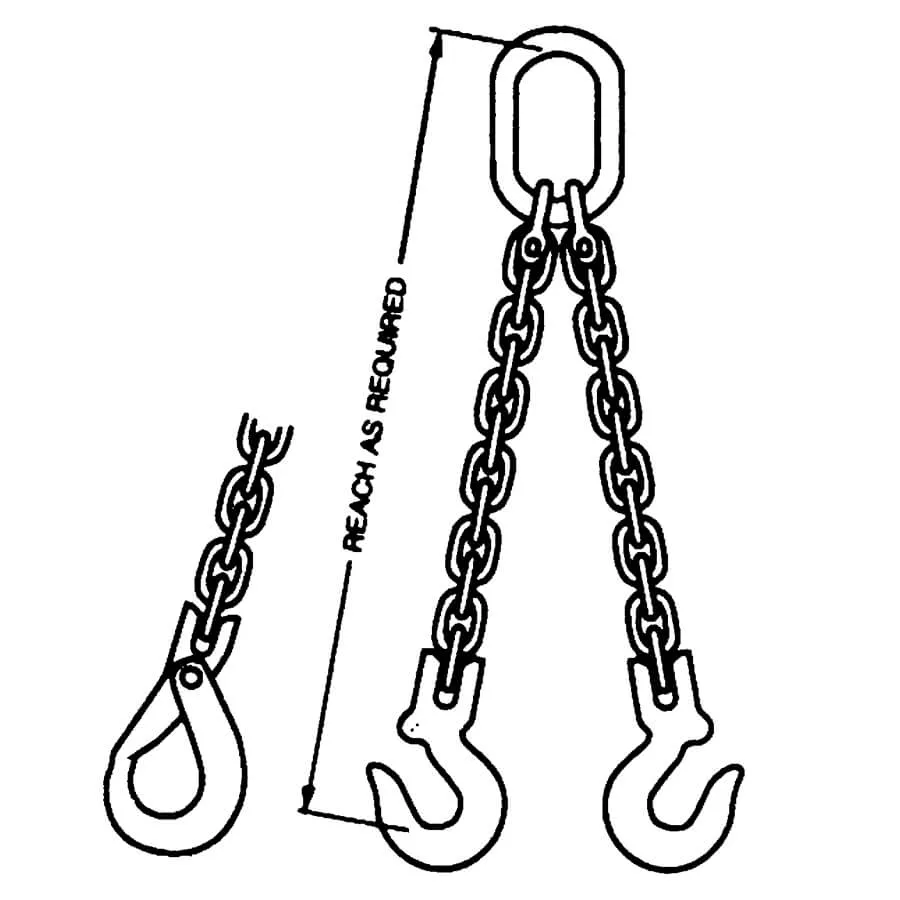

DOSH / DOS Double Leg Chain Slings

Specifications
Size of Chain Grade 80Working Load Limits* Lbs. at 60° Grade 100 Working Load Limits* Lbs. at 60°
In. mm
9/32 7 6,100 7,400
3/8 10 12,300 15,200
1/2 13 20,800 26,000
5/8 16 31,300 39,100
3/4 20 49,000 61,100
7/8 22 59,200 74,000
1 26 82,600
1-1/4 32 125,200

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
